65

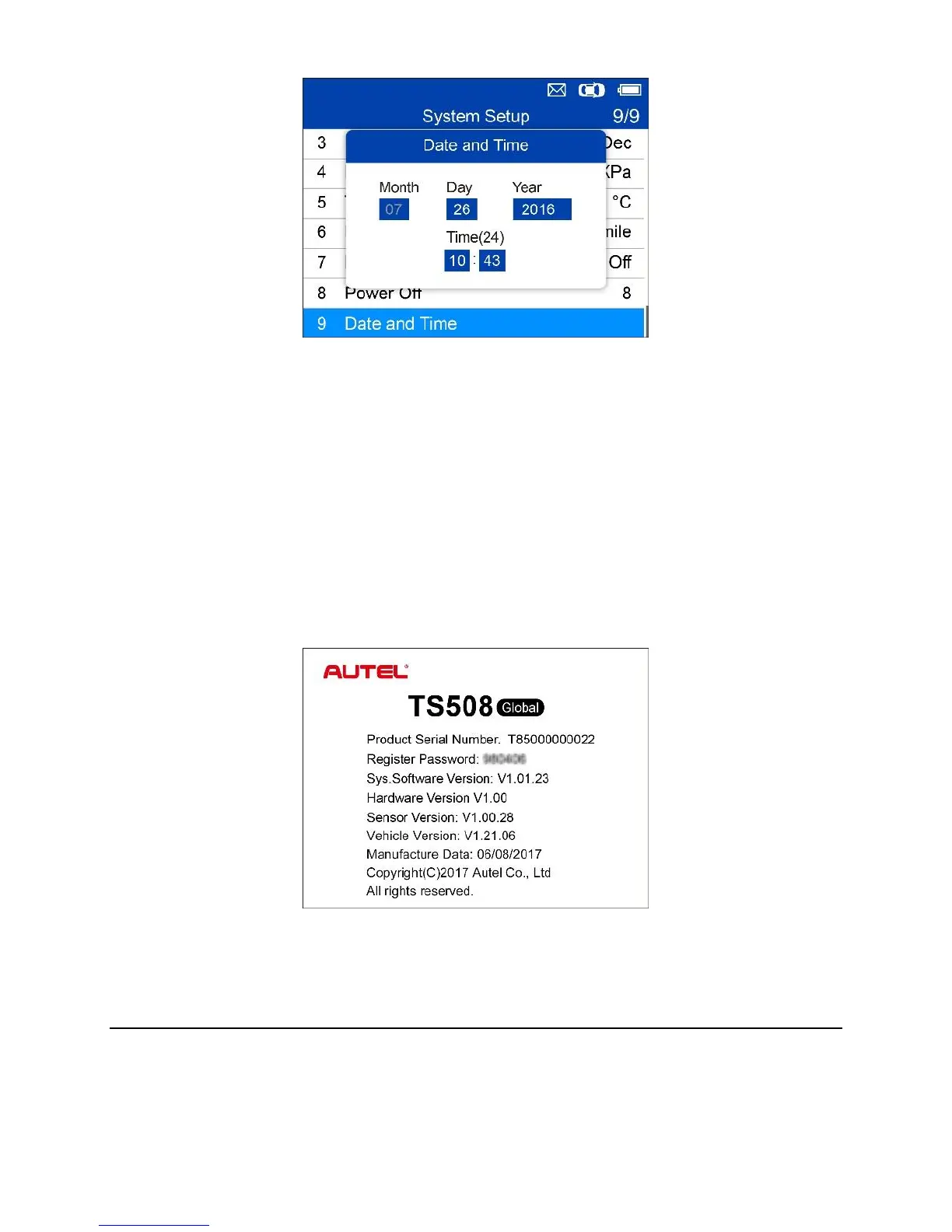

Figure 5-17 Sample Date and Time Screen
About
This function allows viewing of tool data such as serial number and software
version number of the tool.
1. From System Setup screen, use the UP/DOWN scroll button to select
About, and press the Y button; wait for the About screen to display.
2. View tool information on screen. Press the N button to exit.
Figure 5-18 Sample About Screen
Print
To print out the data saved in the device, you will need the followings:
TS508 tool
