2 Tool Information
Functional Description

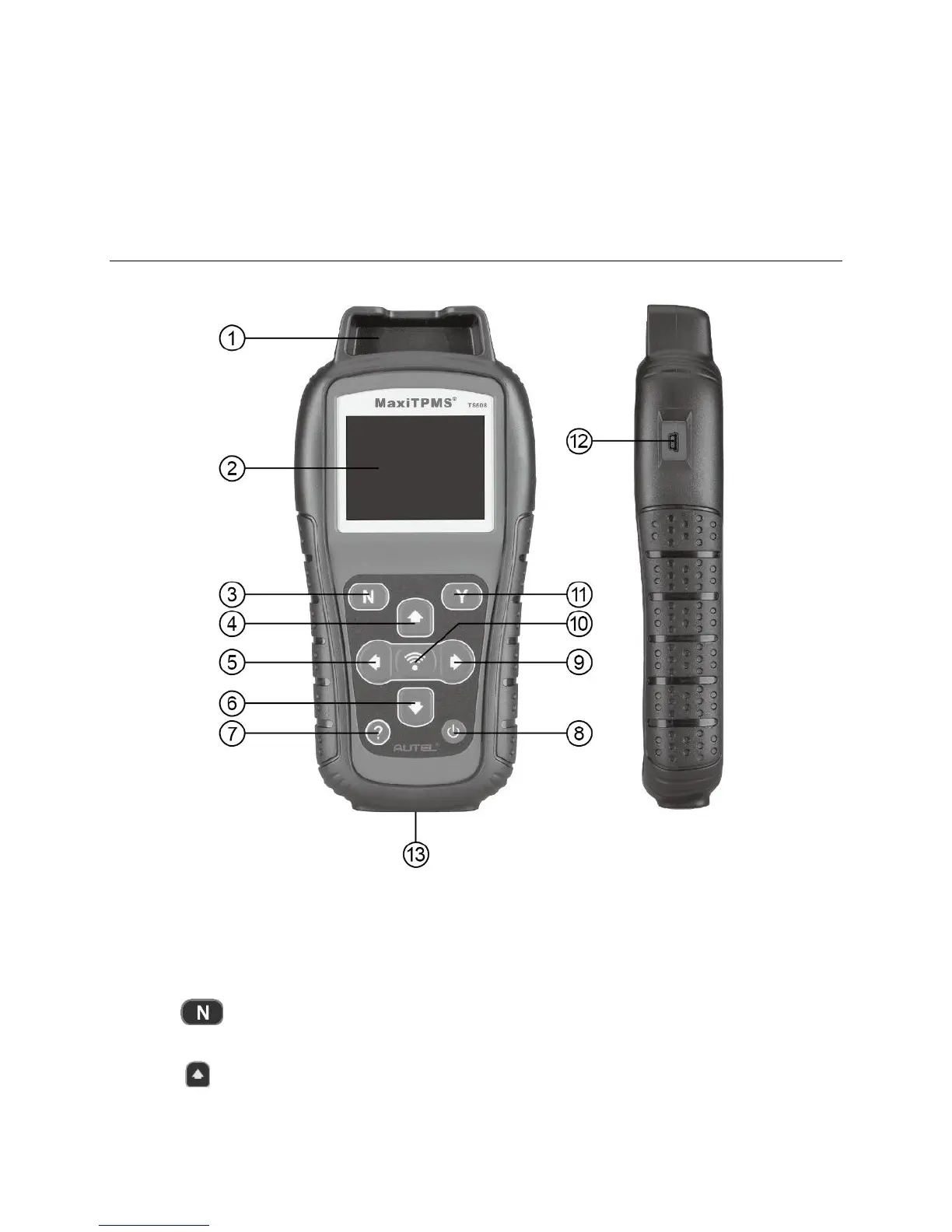

Figure 2-1 MaxiTPMS TS508
1. SENSOR SLOT – holds the MX-Sensor to be programmed.
2. LCD DISPLAY – displays the menus and test screens.
3. N BUTTON – cancels a selection (or action) from a menu or return
to previous menu.
4. UP SCROLL BUTTON – moves up through menu and submenu
items in menu mode. When more than one set of data are retrieved, use
