LIMITATIONS
RSUK0287_POH_Cavalon Revision 3.0, Issue Date 06.04.16 2-6

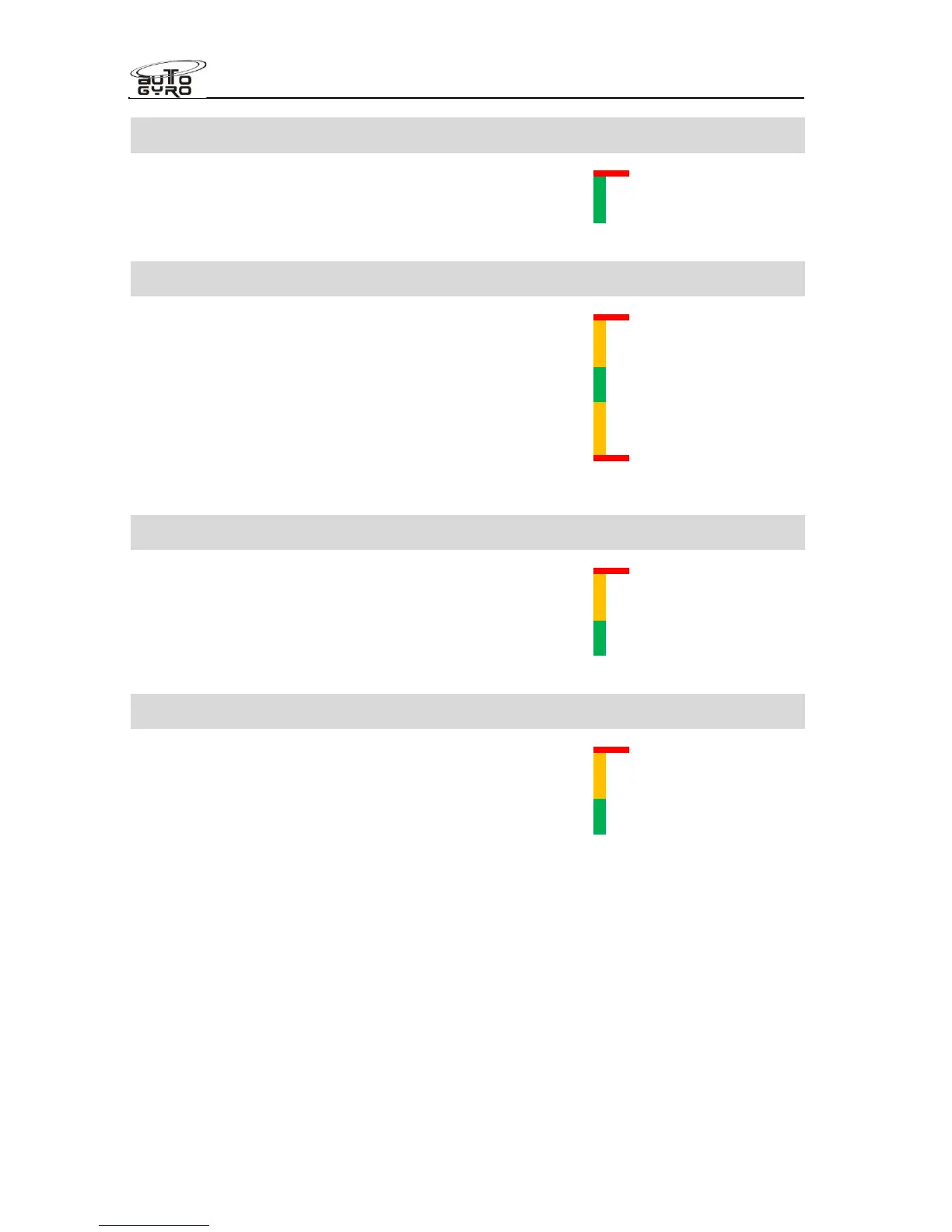

Cylinder Head Temperature Marking
Maximum cylinder head temperature
Red radial
135 °C
Green arc 50 – 135 °C
Engine Oil Pressure Marking
Maximum oil pressure
Red radial
7 bar
Yellow arc 5 – 7 bar
Normal range
Green arc 2 – 5 bar
Yellow arc 0.8 – 2 bar
Minimum oil pressure
Red radial
0.8 bar
Manifold Pressure* ROTAX 912 ULS Marking
Maximum manifold pressure
Red radial
31 In Hg
Yellow arc 27 – 31 In Hg
Maximum continuous MAP
Green arc
0 -
27 In Hg
Manifold Pressure* ROTAX 914 UL Marking
Maximum manifold pressure
Red radial
39 In Hg
Yellow arc 31 – 39 In Hg
Maximum continuous MAP
Green arc
0 -
31 In Hg
* Applicable only if installed, MAP gauge is optional. MAP limits do not apply for 912ULS engine
speeds above 5100 RPM. 914UL limits are controlled by the engine managements system
