PERFORMANCE
RSUK0287_POH_Cavalon Revision 2, Issue Date 24.06.2015 5-2
5.3 Height-Velocity Diagram

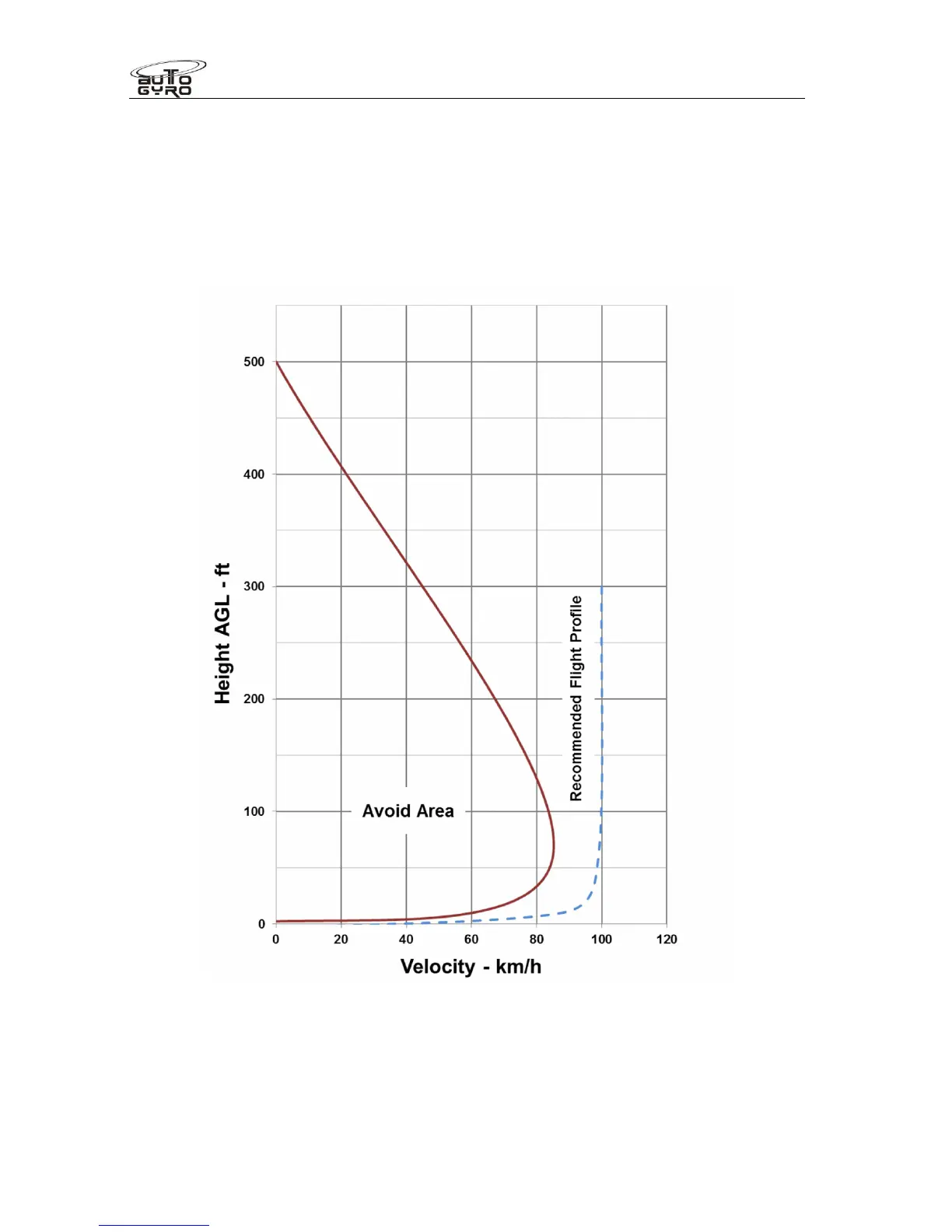

The H/V diagram indicates combinations of height and speed (avoid area left side of the red
graph) where a safe landing may not be possible in case of an engine failure. Therefore,
operation on the left side of the red line must be avoided.
Take-offs and landings should be conducted according to the recommended flight profile,
provided as blue dashed line.
0 25 37 50 62 75
Velocity - mph
