SYSTEM DESCRIPTION
RSUK0287_POH_Cavalon Revision 3., Issue Date 06.04.16 7-2
visually using a dip stick (stored in the cabin) which has to be inserted diagonally from the
fuel filler port (see 8.5).
The tanks are ventilated by a ventilation line above the tanks leading through the
midchannel directly to the outside.
As an option, a low fuel sensor may be installed. The LOW FUEL warning light is triggered
as soon as 5 litres or less of useable fuel remain in the tank.

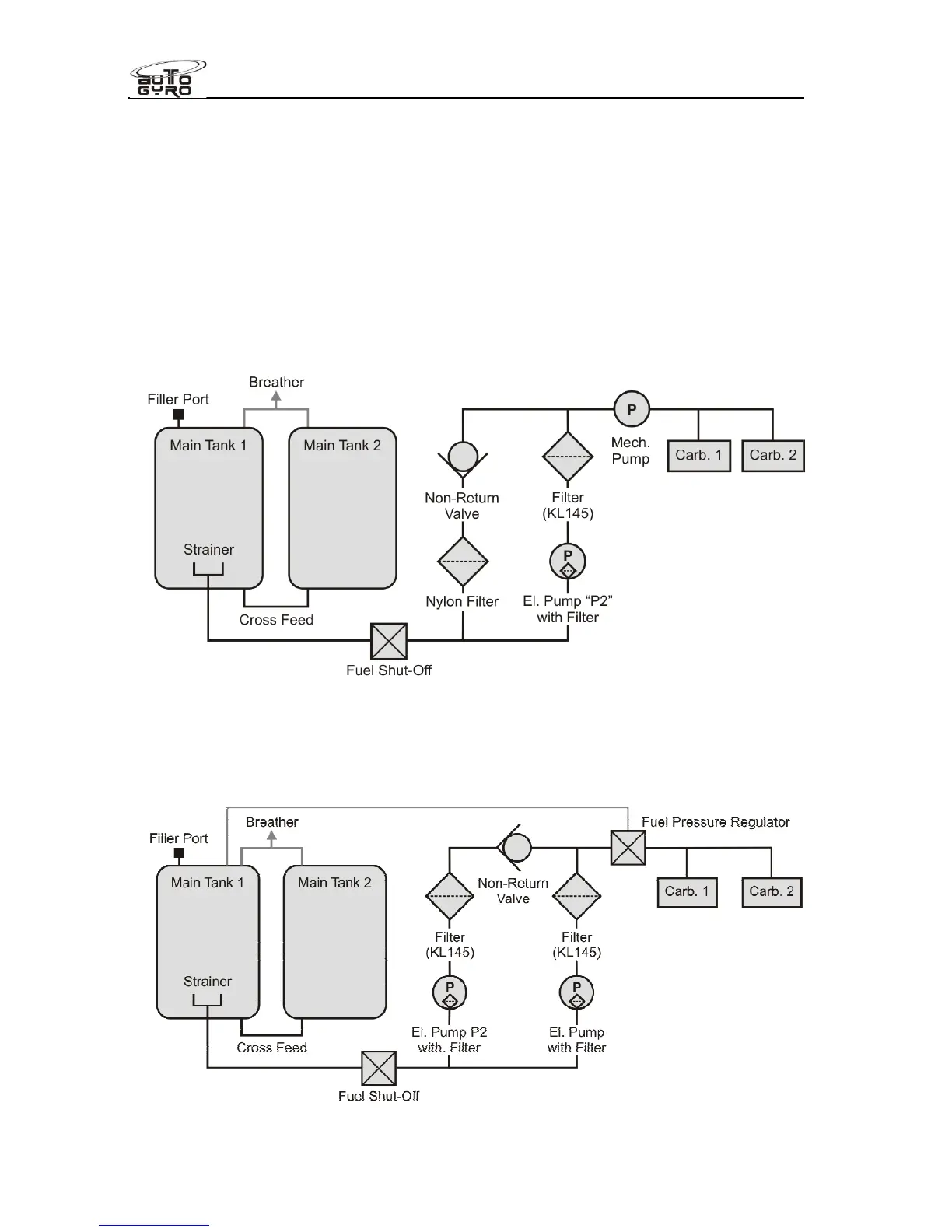

The fuel system versions differ with engine model, see schematics below.
Fuel system ROTAX 912:
Fuel system ROTAX 914:
