SYSTEM DESCRIPTION
RSUK0287_POH_Cavalon Revision 3., Issue Date 06.04.16 7-6
interconnected. The nose wheel steering is directly linked to pedal/rudder control input by
redirected cables.
Both pairs of pedals can be adjusted to suit different leg lengths. A shorter adjustment is
achieved by pulling the handle which moves the pedals closer. Pulling the handle while
pushing with both feet gently against the pedals allows longer adjustment.
After adjustment make sure the pedal assembly is properly locked, as indicated by a definite
and positive click.

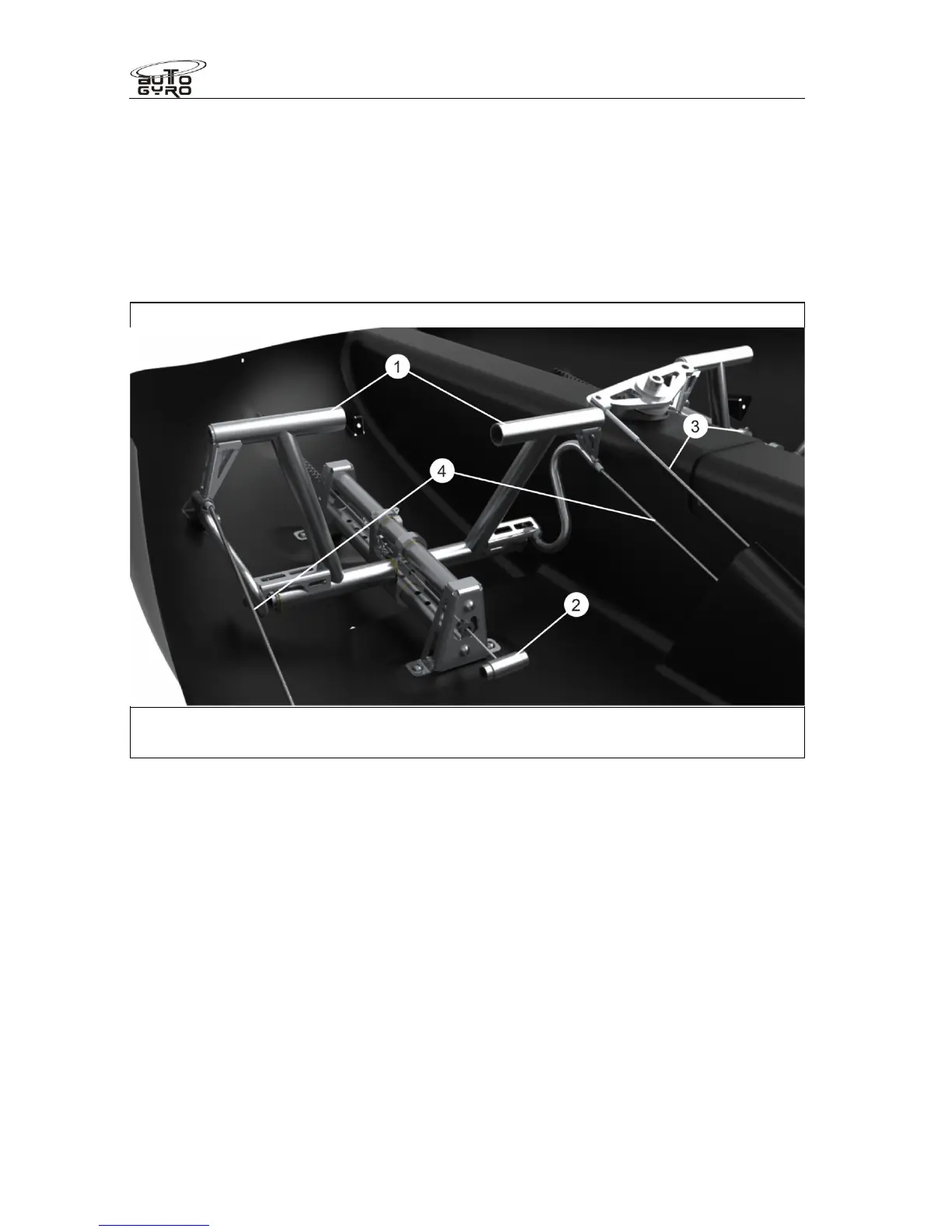

1 – Pedals 3 – Nose wheel steering cables
2 – Adjustment handle 4 – Pedal control cable
The rudder is fitted with a trim tab. This is normally biased to the left, and may be adjusted
by the operator to trim the aircraft for straight flight at a desired speed, feet off the pedals.
Adjusting it to the left will biase the rudder to the right and vice versa.
