AutoGyro Calidus - Page 133

Pilot Operating Handbook
Calidus
SECTION 7
SYSTEM DESCRIPTION
AutoGyro_POH_Calidus Revision 4.0 – Issue Date 17.JAN.2019 7-29
Starter 100A ETFE
cable
125A PVC
cable
Primary supply
from battery to
starter-solenoid
/starter and from
starter solenoid to
main fuse
Midivale
80Amp fuse,
published
time at 80A,
asymptotic,
13secs at
150A. Fuse
mounted after
the solenoid.

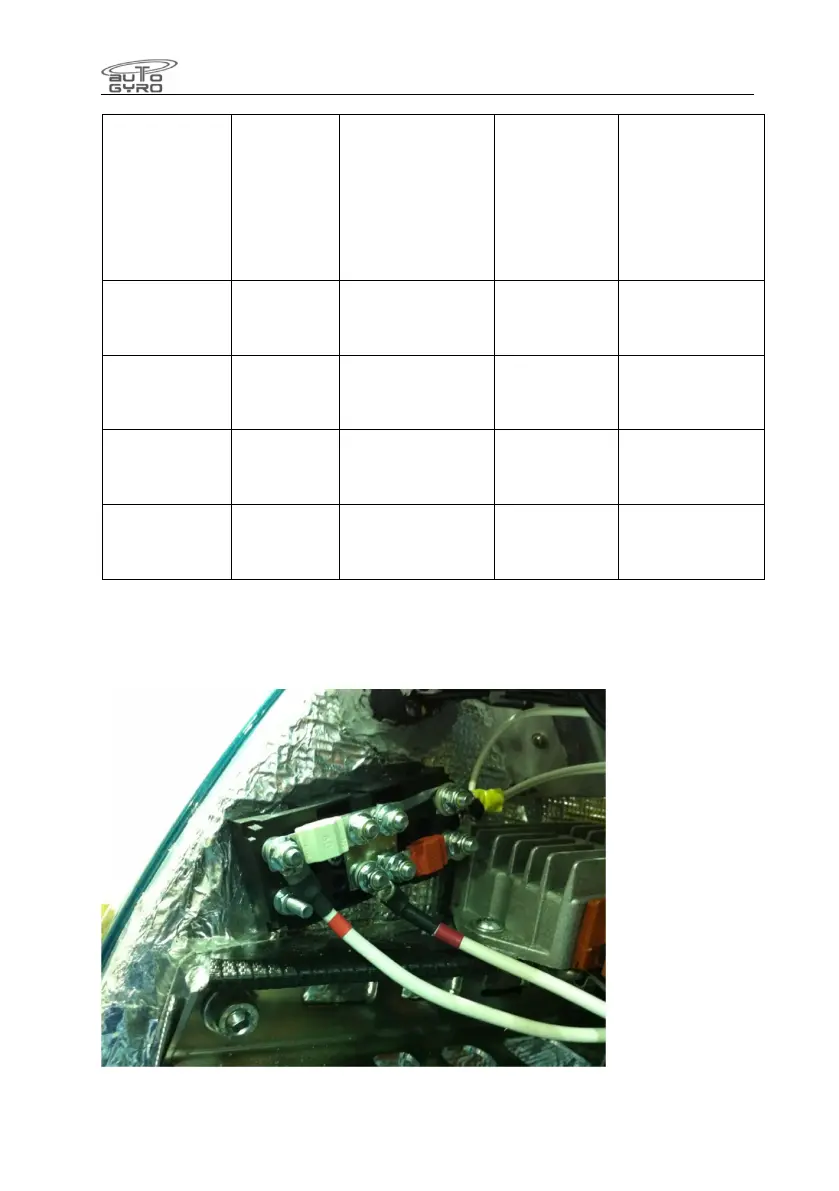

Engine bay fuse
box, above left
fuel tank, on rear
face of enclosure
or engine bearer.
External
battery charge
point (where
fitted)
15A Cable from short
circuit when fitting
or removing the
cowls
Automotive
glass fuse
Near battery
Flymap L
(where fitted)
5A GPS only Automotive
glass fuse
Power supply
lead to GPS unit
behind instr.
panel
Garmin
GPSmap
(where fitted)
1.5A GPS only Automotive
glass fuse
Power supply
lead to GPS unit
behind instr.
panel
Avmap EKP IV
(where fitted)
2A GPS only Automotive
glass fuse
Power supply
lead to GPS unit
behind instr.
panel
Reference to ETFE or PVC cable refers to the cable insulation material used in the wiring
harness. Certified markets require the use of ETFE cable (generally Primary category USA
and Permit Category UK).
Specific aircraft GPS fitments may have alternative fusing arrangements.
