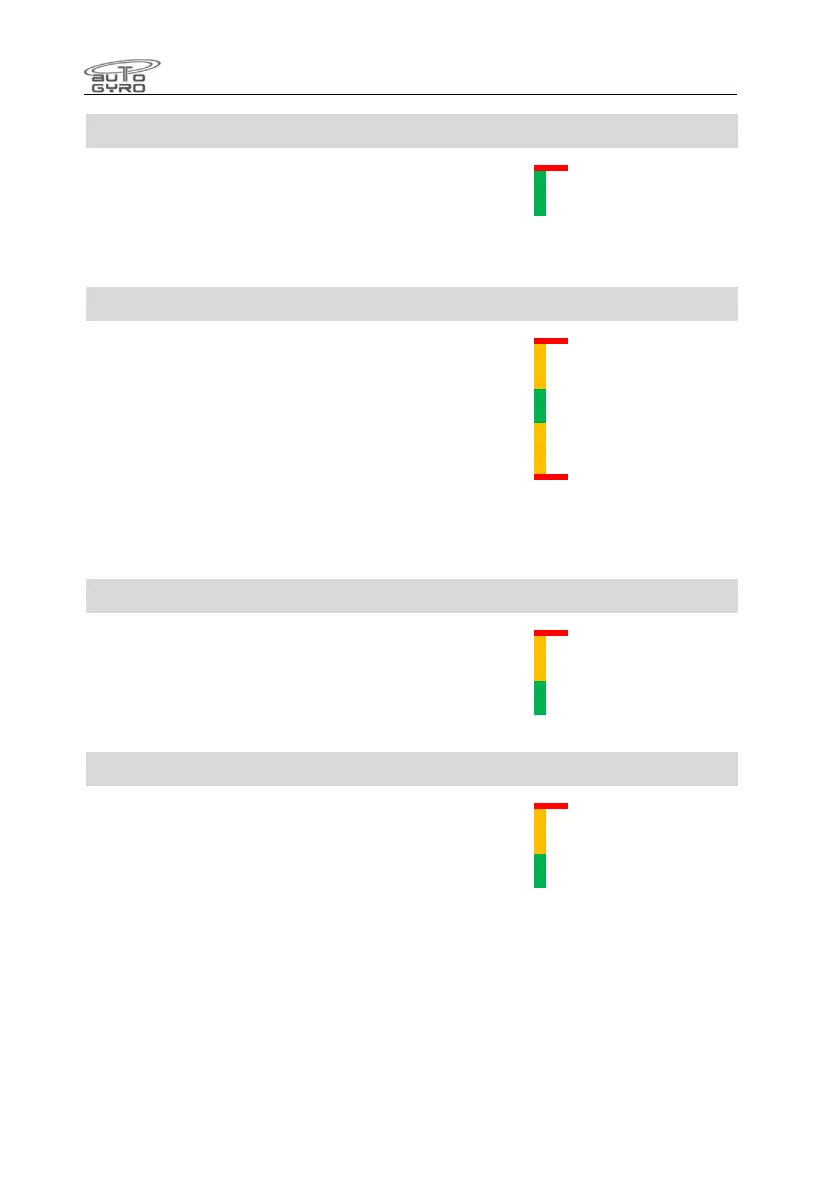

Coolant Temperature (CT)*** Marking
Maximum coolant temperature
Red radial
120 °C
Green arc 50 – 120 °C
***Whether CHT or CT is indicated depends on cylinder head design
Engine Oil Pressure Marking
Maximum oil pressure
Red radial
7 bar
Yellow arc 5 – 7 bar
Normal range
Green arc 2 – 5 bar
Yellow arc 0.8 – 2 bar
Minimum oil pressure
Red radial
0.8 bar
.
** Depending on configuration/Date of Manufacture: Up to DOM 10.2013 90 – 110 °C,
from DOM 10.2013 90 – 130 °C
Manifold Pressure* ROTAX 912 ULS Marking
Maximum manifold pressure
Red radial
31 In Hg
Yellow arc 27 – 31 In Hg
Maximum continuous MAP
Green arc
0 - 27 In Hg
Manifold Pressure* ROTAX 914 UL Marking
Maximum manifold pressure
Red radial
39 In Hg
Yellow arc 31 – 39 In Hg
Maximum continuous MAP
Green arc
0 - 31 In Hg
* Applicable only if installed, MAP gauge is optional equipment although recommended (and
required in some markets) in conjunction with an adjustable pitch propeller. MAP limits do not
apply at 912ULS engine speeds above 5100 RPM, marked by a yellow triangle at the RPM gauge
/ engine speed indicator.
