10. Appendix
A - Adjustment Mode Parameters
Appendix
SB1
0V
SB2
0V
OSC
0V
AUX
Auxiliary Output
The auxiliary output can be used to control alarm or another garage door opener. A valid
transmission from the pre-coded transmitter will cause the auxiliary output to pulse for
approximately 1 (one) second. The maximum DC voltage must not exceed 35 volts DC. Maximum
current must not exceed 80 ma.
LED Indicators
Parameter OPEN OPEN &
STOP
STOP CLOSE &
STOP
CLOSE
LAMP LED Light Time
180s 120s 60s 30s 0s
AUX LED
Aux Time / Mode
Toggle
60s 30s 1s Mimic Light
A/C LED A/C Function
90s 60s 30s 15s OFF
A/C & BEAM LED’S
P.E A/C Function
60s
30s 15s 5s OFF
OBST LED Margin Setting 20 units
15 units 12 units 9 units 7 units
OPEN / STOP / CLOSE LED’S PG3 custom setting
When all three lights are illuminated a custom setting is in place.
Parameters can be still adjusted to those listed above.
STEP ONE
STEP THREE

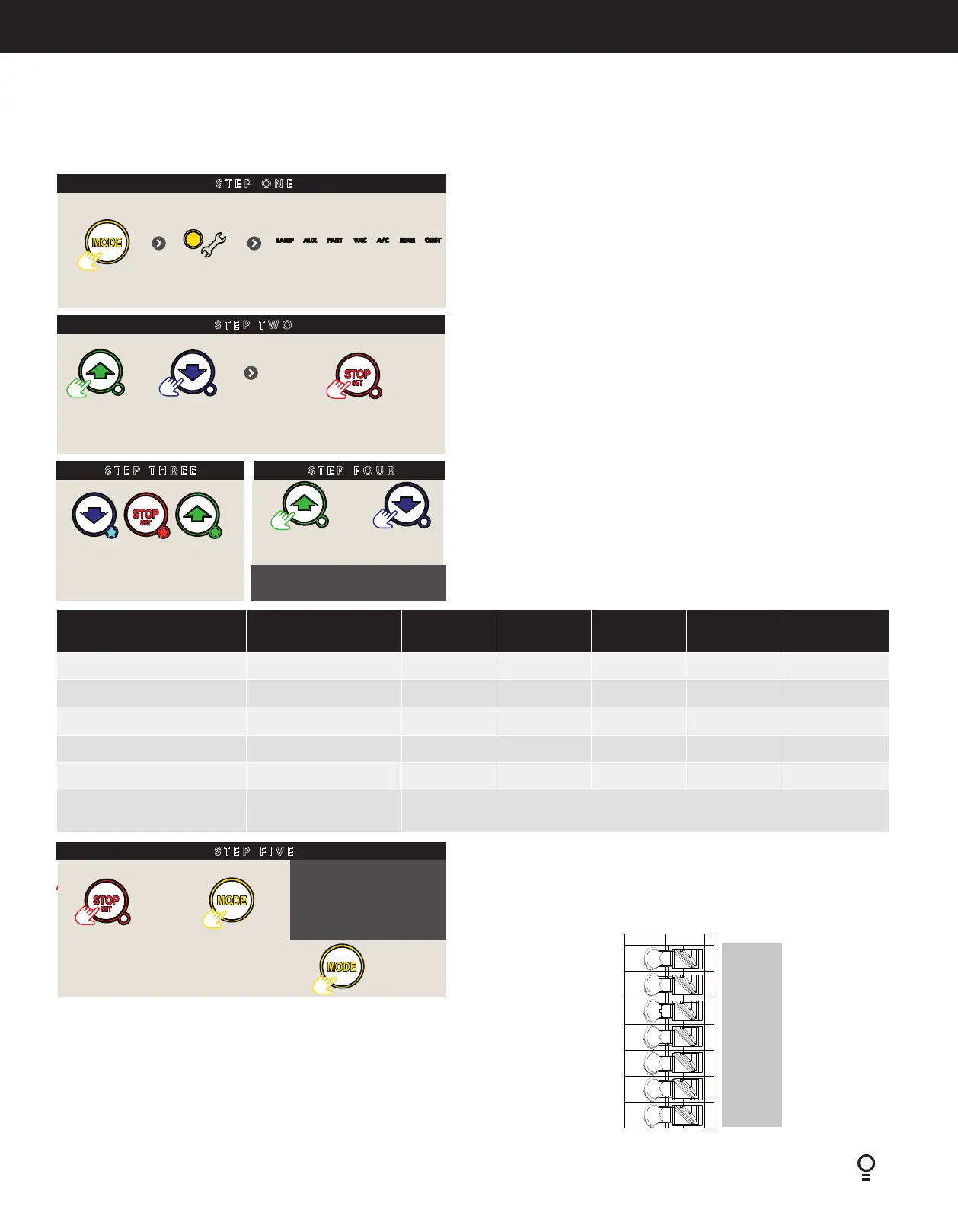

ADJUSTMENT MODE INSTRUCTIONS
STEP TWO
STEP FOUR
If no beep is heard, max
or min setting is reached.
Press to move to
particular
parameter LED
OR
Press
to enter parameter
OR
Use either button to
scroll through
Press to save
OR
Press to leave
unchanged
Press to
exit
Operating MODE is
entered after 5 secs,
unless a new
adjustment is started
or saved.
STEP FIVE
Remove controls cover
till Spanner
LED is lit
Press
repeatedly
One of the word LED’s
will light up
will ash to indicate
parameter value in
table below
STEP ONE
STEP THREE
ADJUSTMENT MODE INSTRUCTIONS
STEP TWO
STEP FOUR
If no beep is heard, max
or min setting is reached.
Press to move to
particular
parameter LED
OR
Press
to enter parameter
OR
Use either button to
scroll through
Press to save
OR
Press to leave
unchanged
Press to
exit
Operating MODE is
entered after 5 secs,
unless a new
adjustment is started
or saved.
STEP FIVE
Remove controls cover
till Spanner
LED is lit
Press
repeatedly
One of the word LED’s
will light up
will ash to indicate
parameter value in
table below
