Navigating To “Edit Transmitter” Menu
a. Press NEXT to navigate to Menu 1 (Fig. E.1) .
b. Press SET to enter the transmitter edit procedure.
c. Press NEXT to enter transmitter list and edit mode.
Editing Button Function Field
a. Press NEXT or PREV to move the cursor to the left or right and between
the top and bottom lines to select the desired field.
b. Use UP and DOWN to change the displayed value. When the correct
setting has been made repeat step a to select the next field to edit. The
example (Fig. E.2) shows editing the function of transmitter number 510
assigned to the Output 1.
Available functions:
M_# (Mimic)
P_# (Pulse)
PR# (Pulse/Reset)
T_# (Toggle)
S_# (Set)
R_# (Reset)
VAC (Vacation)
−−− (OFF)
Where # is the output number M_1,M_2, M_3,M_4
Press SET to save the settings or EXIT to abort without saving.
Editing The Store Location
This feature is only available when coding the first button of a new transmitter.
c. Press NEXT or PREV to move the cursor over Store No. (Fig. E.3)
d. Press UP or DOWN to select new Store No.
e. Press SET to Confirm or NEXT/PREV to move to the next field.
This is useful when managing transmitters using a scheme which ties the
store location to the transmitter’s owner.
Selection Of ID or Serial Number Display
a. Press NEXT to navigate to the Menu 1 ”Code Transmitter”.
b. Press SET to enter the transmitter edit procedure.
c. Press NEXT to enter transmitter list and edit mode.
d. Press NEXT/PREV to move the cursor over the ID field.
e. Press NEXT to reveal the Serial Number (Fig. E.4).
The serial number display is provided for additional means of identification.
The transmitter in this example has serial number 12345.
Editing A Character Field
a. Press NEXT or PREV to move select character.
b. Press UP or DOWN to scroll through and select a new character.
c. Press NEXT or PREV to move to the next character.
d. Repeat step b.
e. Press SET to record changes.
The second line of the display shows a list of available characters with the
current value indicated at the cursor position (Fig. E.5).

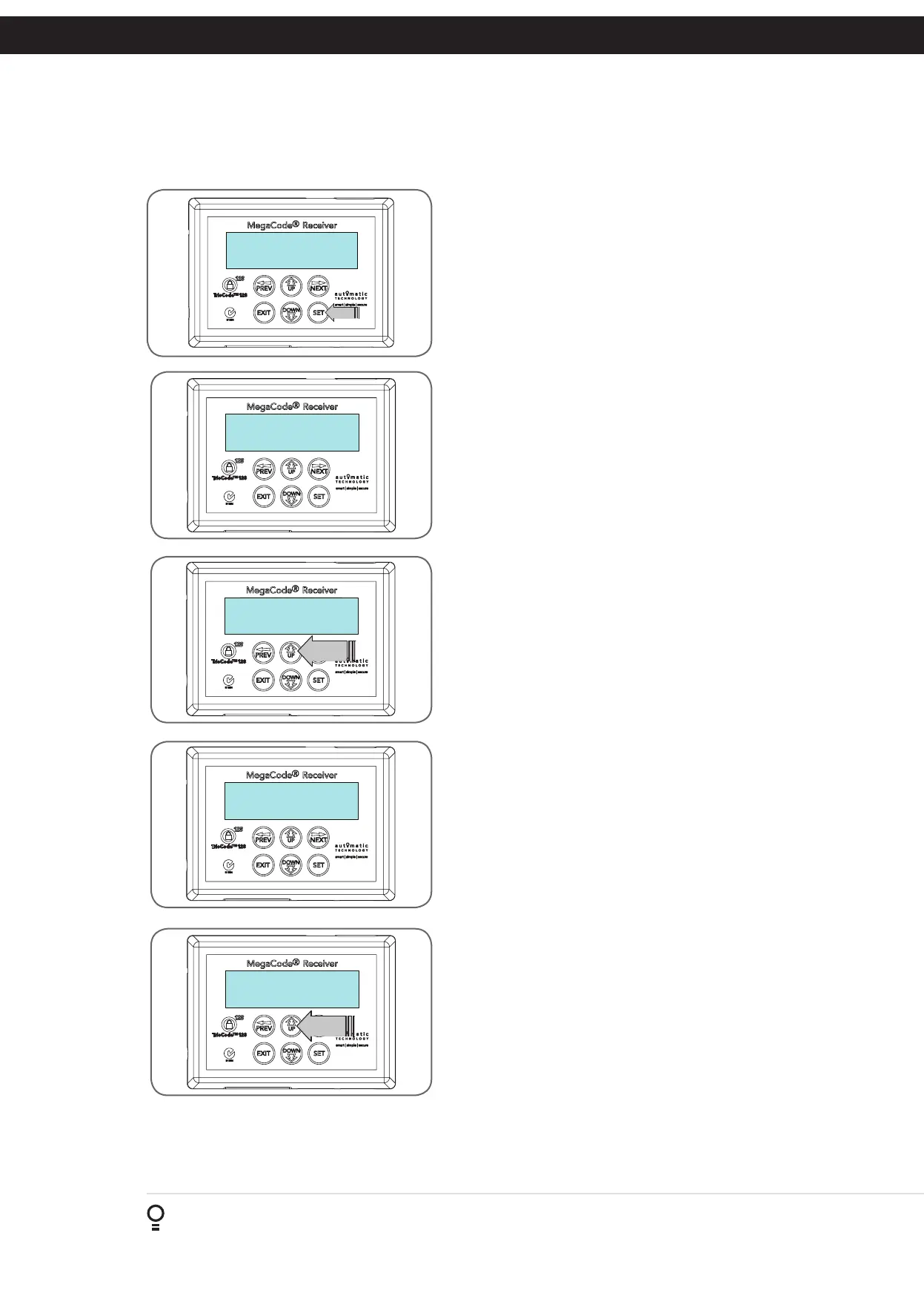

Fig E.1
Fig E.2
Fig E.3
Fig E.4
Fig E.5
