Automation Technology C2 Series - Using the C2 Heat Sink

C2-2040(HS)-GigE Camera Hardware Reference Manual Rev. 1.8 • 11

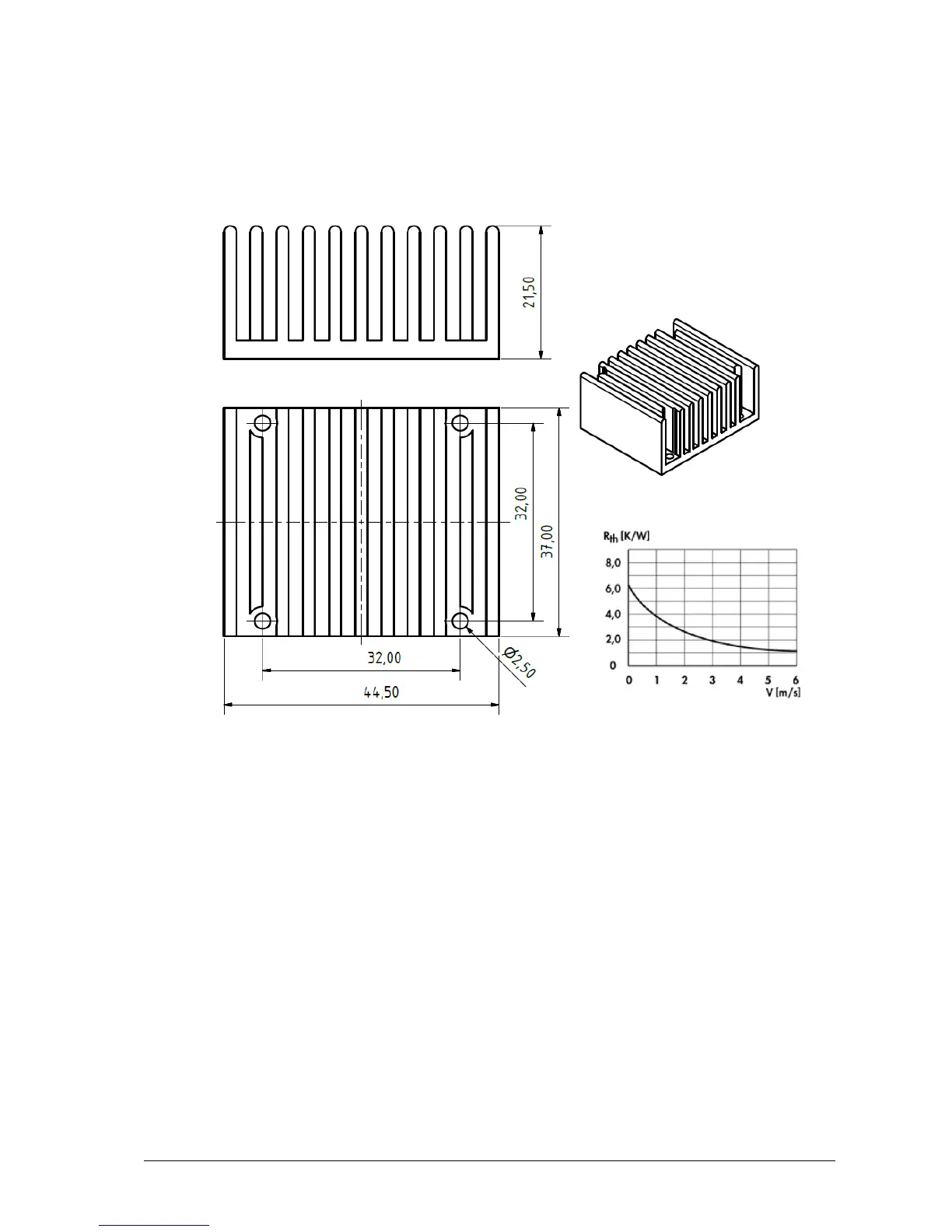

Using the C2 Heat Sink
AT provide a specially designed heat sink to improve the cooling of C2 sensors in applications lacking
sufficient thermal dissipation:
Absolute thermal resistance for camera housing: R
th
= 5 [K / W]
Absolute thermal resistance for heat sink: R
th
= 6 [K / W]
