C2-2040(HS)-GigE Camera Hardware Reference Manual Rev. 1.8 • 45
C2-2040(HS)-GigE Camera Triggering

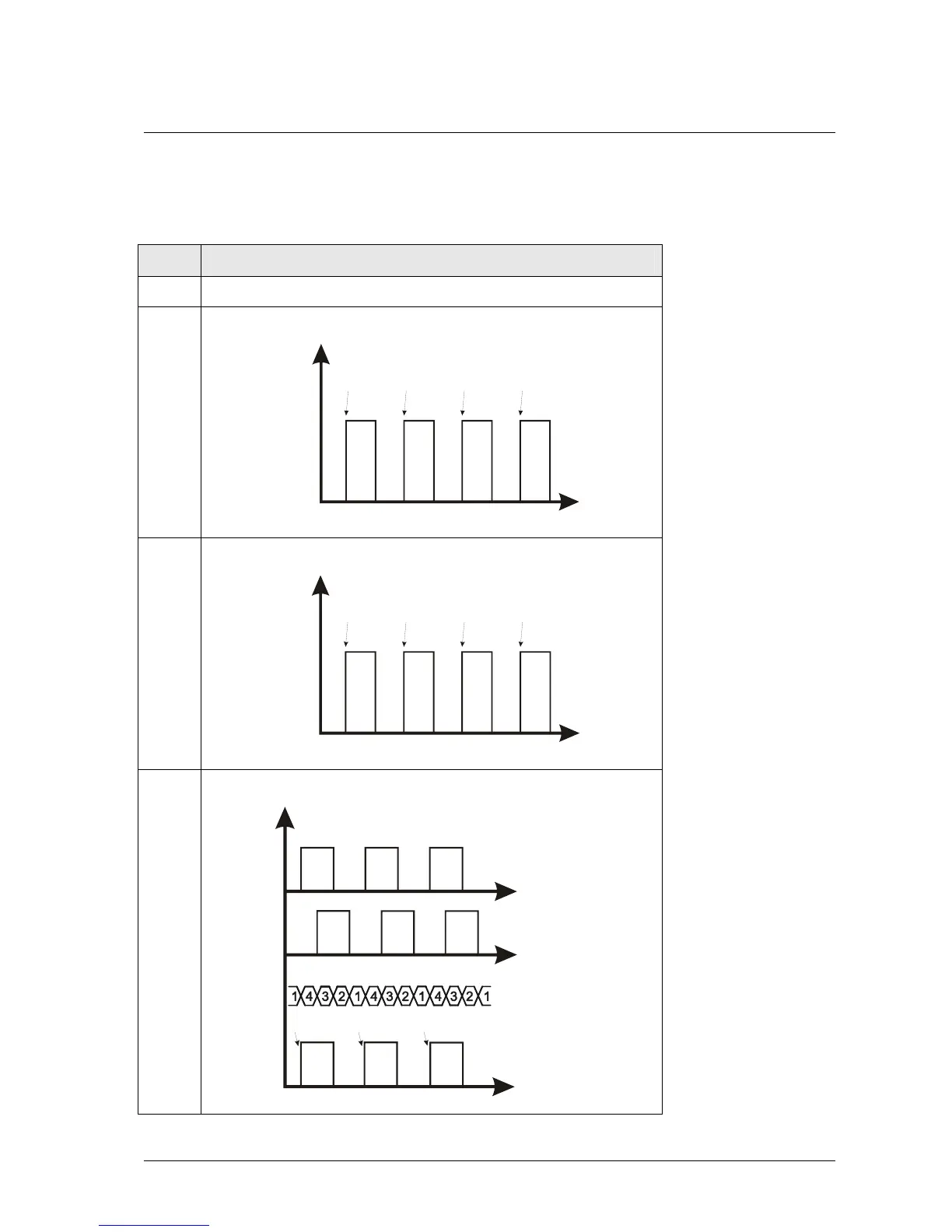

Description of Profile Trigger Modes
No. Profile Trigger Mode (PTM)
0 Free-run (PTM0)
1 Camera input 1 (PTM1)
t
Profile
Acquisition 1
Profile
Acquisition 2
Profile
Acquisition 3
IN1
Profile
Acquisition 4
2 Camera input 2 (PTM2)
t
Profile
Acquisition 1
Profile
Acquisition 2
Profile
Acquisition 3
IN2
Profile
Acquisition 4
3 Encoder/Resolver Interface (PTM3)
Profile
Acquisition 1
A
B
RS422
Example: Trigger after number of steps = 4
Counter
Internal
Trigger
Profile
Acquisition 2
Profile
Acquisition 3
t
ENC
_
A
ENC_B
