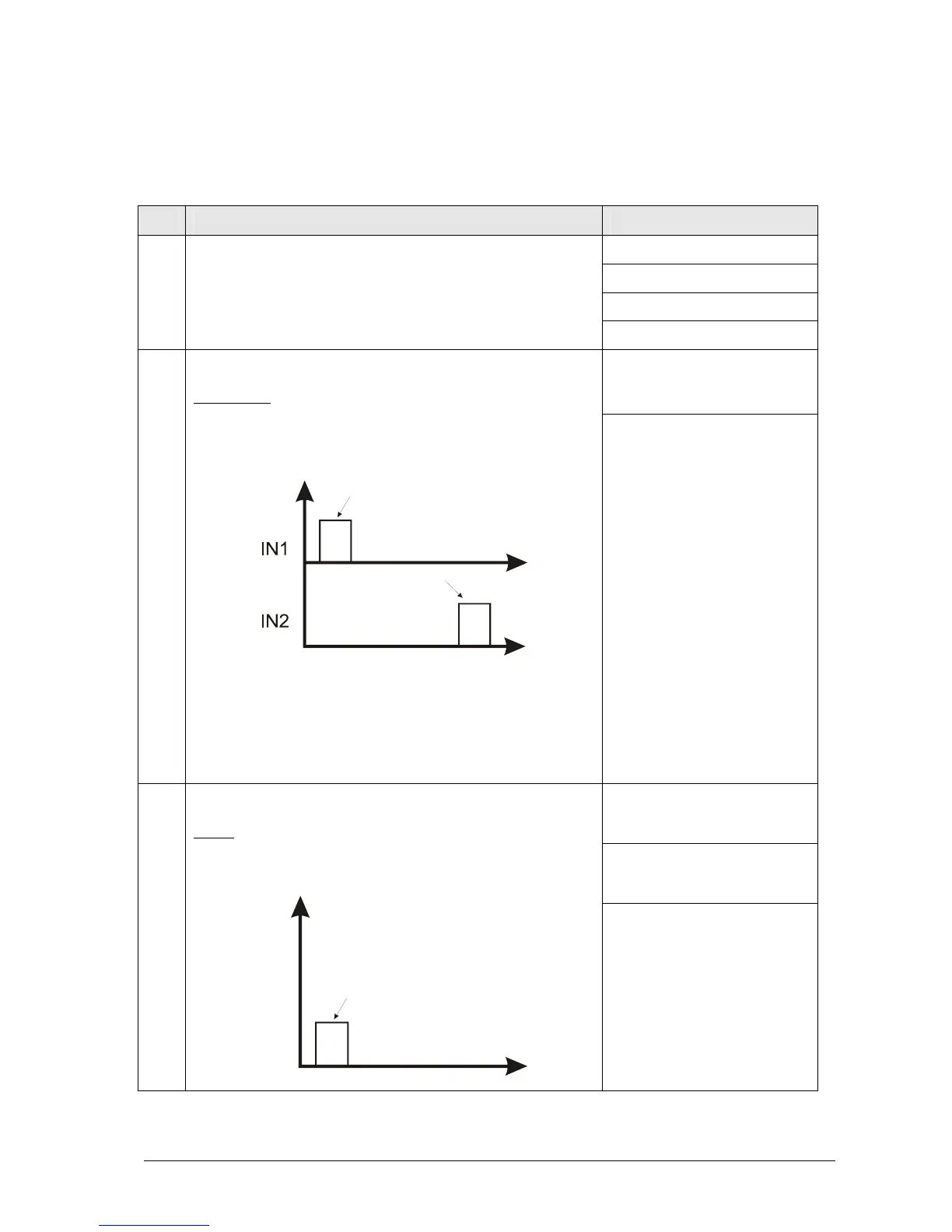

Description of Modes for Triggering of Sequencer/Frame and Profile
Acquisition
No. Sequencer/Frame Trigger Mode Profile Trigger Mode (PTM)
0 Free-run PTM0 (free-run)
PTM1(IN1)
PTM2 (IN2)
1 Start/stop over camera input 1 / 2
Continuous frame acquisition is started with the rising edge
of camera input 1 (IN1) and stopped with rising edge of
camera input 2 (IN2)
trigger start of sequencer
(frame trigger)
t
trigger stop of sequencer
When “stop” occurs, the frame is not transmitted
immediately over the GigE interface but the camera
continues to acquire profile data, until the predefined frame
height is reached.
PTM0 (free-run)
PTM3 (RS422)
2 Start over camera input 1
Single frame acquisition is triggered over the rising edge of
camera input 1 (IN1)
trigger start of sequencer
(frame trigger)
t
IN1
