C2-2040(HS)-GigE Camera Interface
The GigE Interface

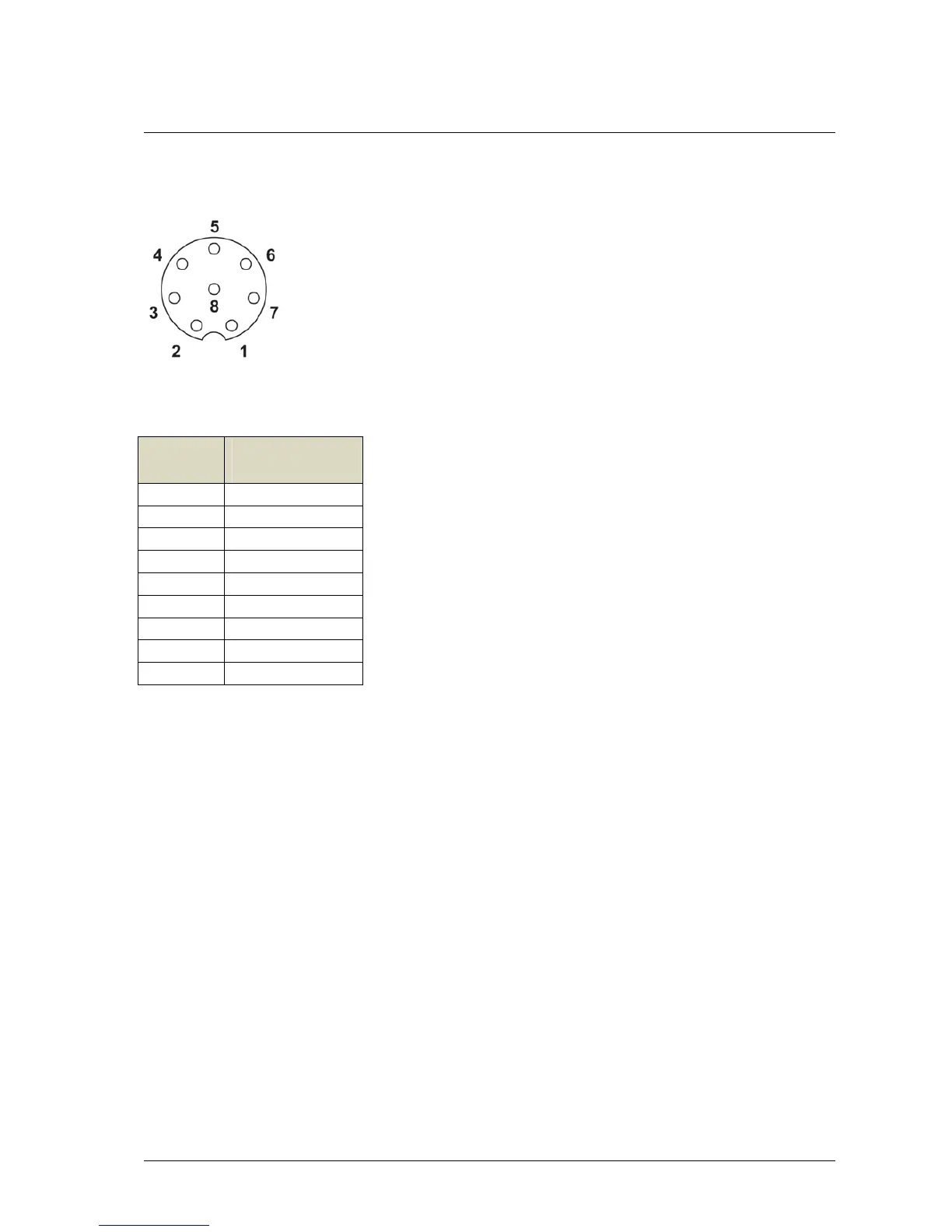

M12 GigE Female Connector Pin Assignment
Pin No. GigE Signal
Name
1 BI_DC-
2 BI_DD+
3 BI_DD-
4 BI_DA-
5 BI_DB+
6 BI_DA+
7 BI_DC+
8 BI_DB-
Shield Shield
