60 • C2-2040(HS)-GigE Camera Hardware Reference Manual Rev. 1.8

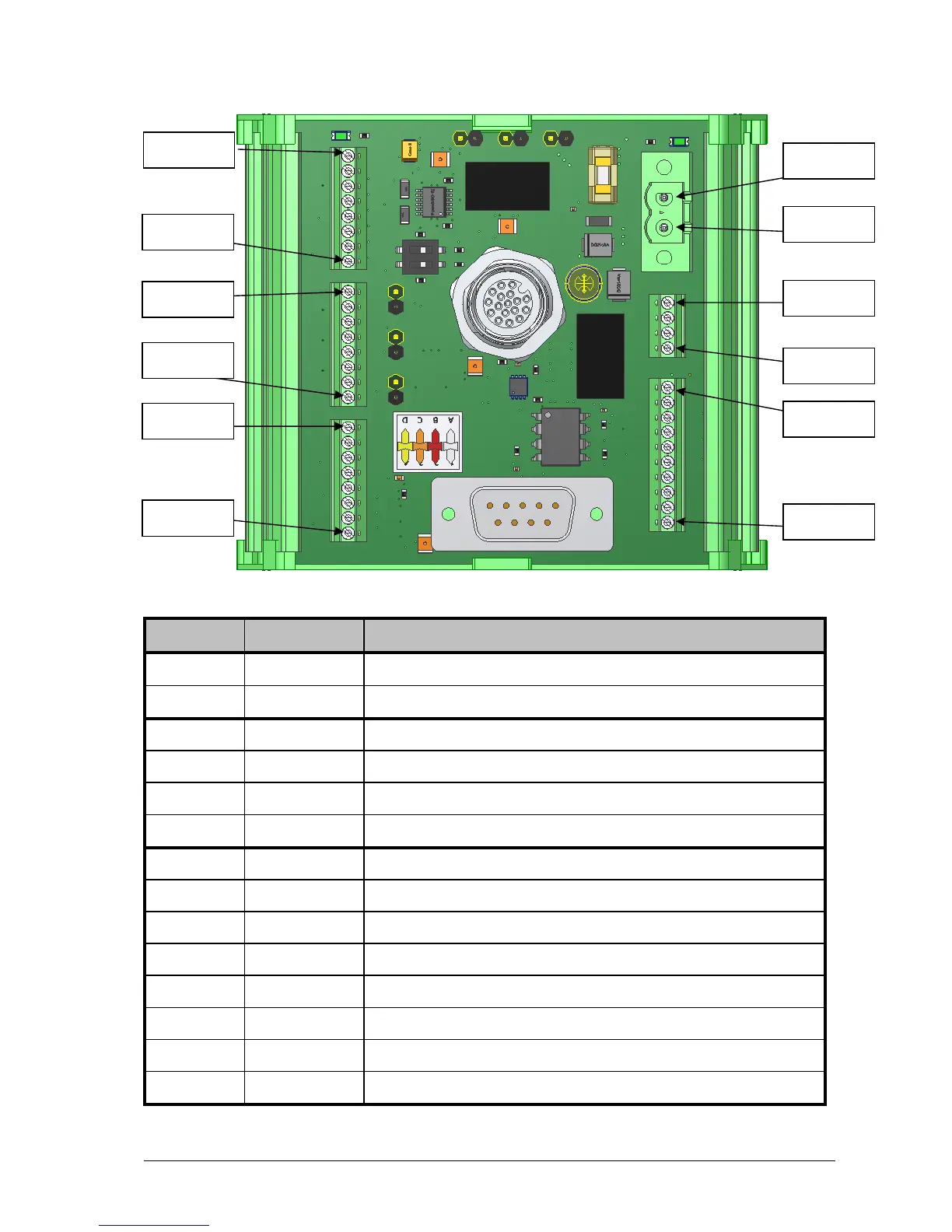

Clamp No. Signal Name Description
J200/1 POWER_EXT Camera supply voltage (10-24V DC)
J200/2 GND_EXT Camera ground
J201/1 SHIELD Camera shield
J201/2 SHIELD Camera shield
J201/3 GND Supply chain of camera ground
J201/4 VCC Supply chain of camera voltage
J300/1 GND encoder ground
J300/2 HZ- HTL encoder index track Z-
J300/3 HZ+ HTL encoder index track Z+ / single-ended index track Z
J300/4 HB- HTL encoder track B-
J300/5 HB+ HTL encoder track B+ / single-ended track B
J300/6 HA- HTL encoder track A-
J300/7 HA+ HTL encoder track A+ / single-ended track A
J300/8 SHIELD Camera shield
J200/2
J201/1
J500/1
J200/1
J400/1
J400/8
J300/1
J300/8
J301/1
J301/8
J201/4
J500/10
