Automation Technology C2 Series Hardware Reference Manual

64 • C2-2040(HS)-GigE Camera Hardware Reference Manual Rev. 1.8

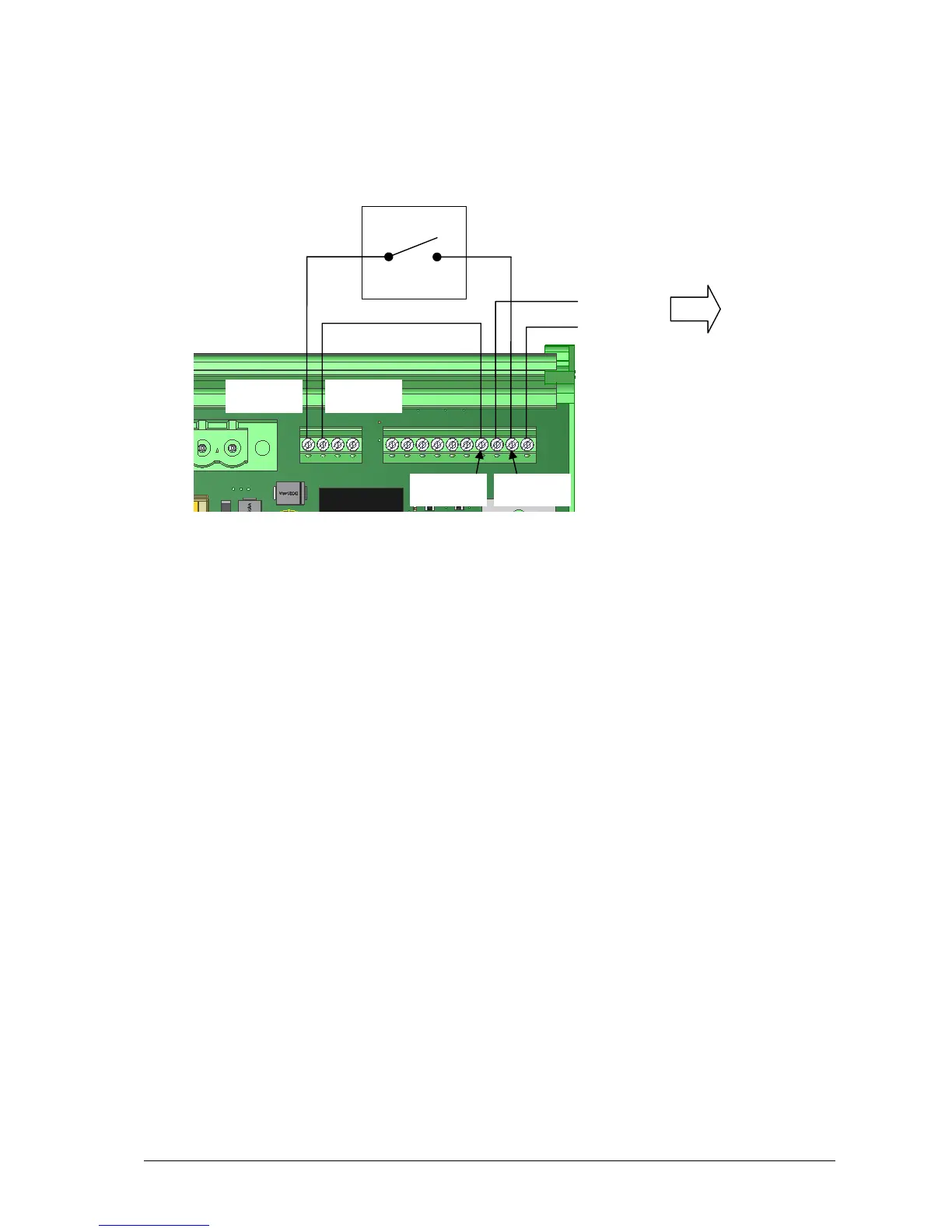

Use of power supply chain with interlock function to supply a laser with power
¾ Suitable for lasers capable of operating with camera supply voltage
Interlock
J201/4
SUPPLY VCC
J201/3
SUPPLY GND
J500/1
VCC_LASER
J500/3
GND_LASER
J500/2
VCC_LASER
J500/4
GND_LASER
Connect to
power supply
input of laser
