SE3 Series Industrial Unmanaged Ethernet Switches User Manual

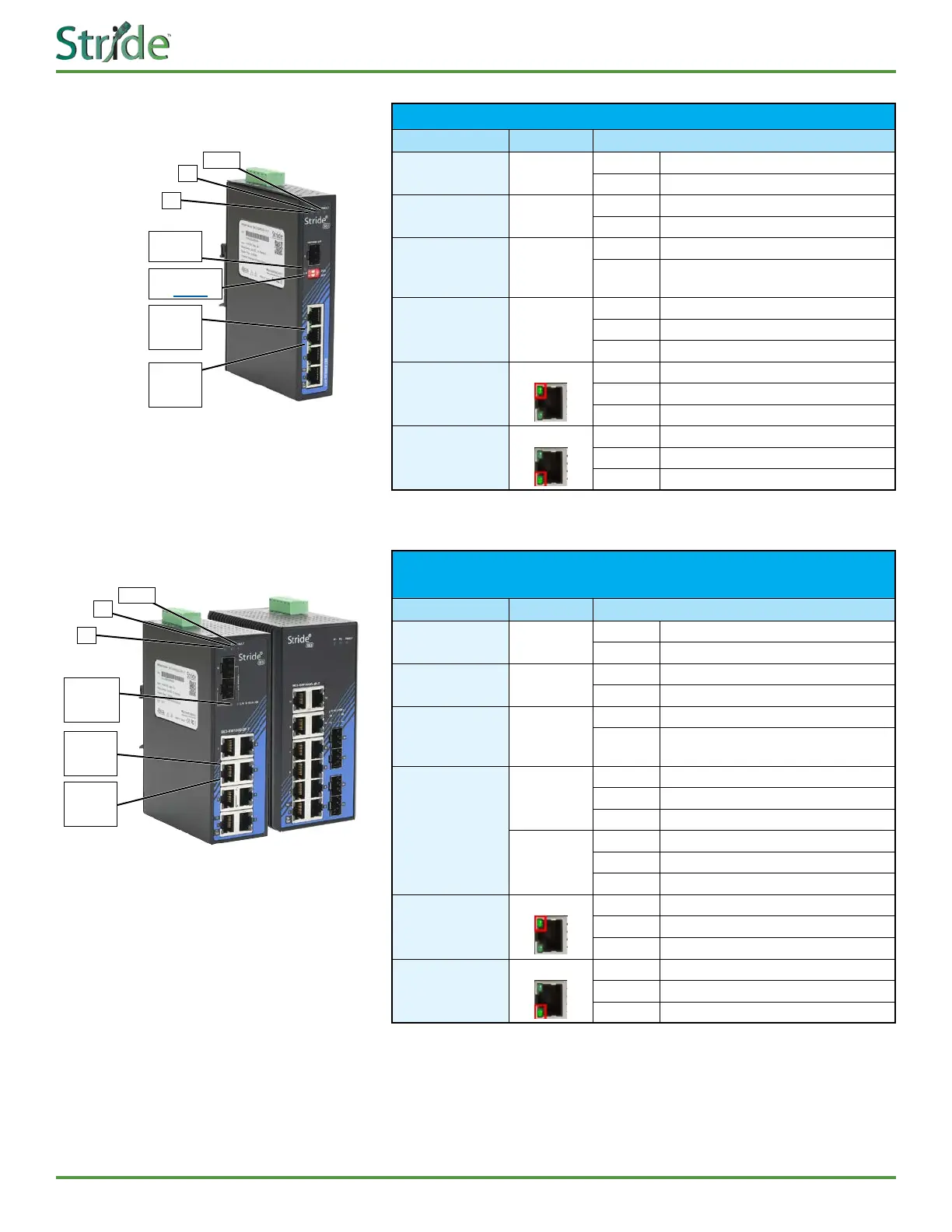

SE3-SW5UG-1P-T LED Indicators
LED Color Description
P1
Green
ON Power input 1 is active
OFF Power input 1 is inactive
P2
Green
ON Power input 2 is active
OFF Power input 2 is inactive
FAULT
Red
ON Power input 1 or 2 is inactive
OFF
Power input 1 and 2 are both functional,
or no power inputs
SFP Port
LINK/ACT
Green
ON Connected to network
Flashing Network is active
OFF Not connected to network
LAN Port
1000M
LINK/ACT
Green
ON Connected to network, 1000Mbps
Flashing Network is active
OFF Not connected to network
LAN Port
10/100M
LINK/ACT
Green
ON Connected to network, 10/100Mbps
Flashing Network is active
OFF Not connected to network
SE3-SW10UG-2P-T, SE3-SW16UG-4P-T LED
Indicators
LED Color Description
P1
Green
ON Power input 1 is active
OFF Power input 1 is inactive
P2
Green
ON Power input 2 is active
OFF Power input 2 is inactive
FAULT
Red
ON Power input 1 or 2 is inactive
OFF
Power input 1 and 2 are both functional,
or no power inputs
SFP Port
LINK/ACT/
SPEED
Green
ON Connected to network, 1000Mbps
Flashing Network is active
OFF Not connected to network
Amber
ON Connected to network, 100Mbps
Flashing Network is active
OFF Not connected to network
LAN Port
1000M
LINK/ACT
Green
ON Connected to network, 1000Mbps
Flashing Network is active
OFF Not connected to network
LAN Port
10/100M
LINK/ACT
Green
ON Connected to network, 10/100Mbps
Flashing Network is active
OFF Not connected to network
SE3-SW5UG-1P-T
FAULT
P2
P1
SFP
LINK/ACT
RJ45
1000M
LINK/ACT
RJ45
10/100M
LINK/ACT
DIP Switches
(see page 11)
SE3-SW16UG-4P-T
SE3-SW10UG-2P-T
FAULT
P2
P1
SFP
LINK/ACT/
SPEED
RJ45
1000M
LINK/ACT
RJ45
10/100M
LINK/ACT
