SE3 Series Industrial Unmanaged Ethernet Switches User Manual

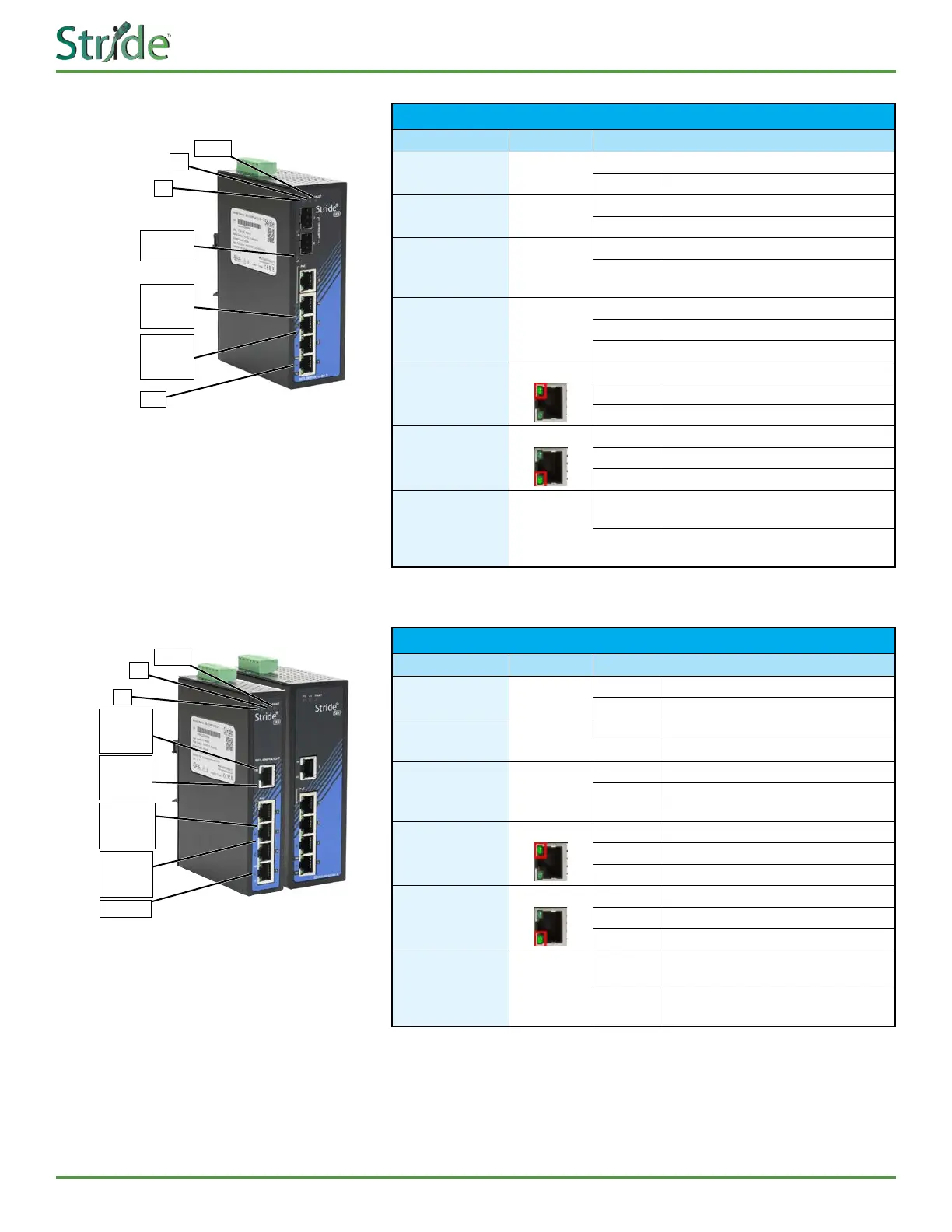

SE3-SWP2A7U-2P-T LED Indicators
LED Color Description
P1
Green
ON Power input 1 is active
OFF Power input 1 is inactive
P2
Green
ON Power input 2 is active
OFF Power input 2 is inactive
FAULT
Red
ON Power input 1 or 2 is inactive
OFF
Power input 1 and 2 are both functional,
or no power inputs
SFP Port
LINK/ACT
Green
ON Connected to network
Flashing Network is active
OFF Not connected to network
LAN Port
100M
LINK/ACT
Green
ON Connected to network, 100Mbps
Flashing Network is active
OFF Not connected to network
LAN Port
10M
LINK/ACT
Green
ON Connected to network, 10Mbps
Flashing Network is active
OFF Not connected to network
PoE
Green
ON
The port is supplying power to the
powered device
OFF
No powered device attached or failure
to supply power
SE3-SWP1A5U-T, SE3-SWP2A5U-T LED Indicators
LED Color Description
P1
Green
ON Power input 1 is active
OFF Power input 1 is inactive
P2
Green
ON Power input 2 is active
OFF Power input 2 is inactive
FAULT
Red
ON Power input 1 or 2 is inactive
OFF
Power input 1 and 2 are both functional,
or no power inputs
LAN Port
100M
LINK/ACT
Green
ON Connected to network, 100Mbps
Flashing Network is active
OFF Not connected to network
LAN Port
10M
LINK/ACT
Green
ON Connected to network, 10Mbps
Flashing Network is active
OFF Not connected to network
PoE (Port 1–4)
Green
ON
The port is supplying power to the
powered device
OFF
No powered device attached or failure
to supply power
SE3-SWP2A7U-2P-T
FAULT
P2
P1
SFP
LINK/ACT
RJ45
100M
LINK/ACT
RJ45
10M
LINK/ACT
PoE
SE3-SWP2A5U-T
SE3-SWP1A5U-T
FAULT
P2
P1
RJ45
100M
LINK/ACT
RJ45
10M
LINK/ACT
PoE
RJ45
100M
LINK/ACT
RJ45
10M
LINK/ACT
