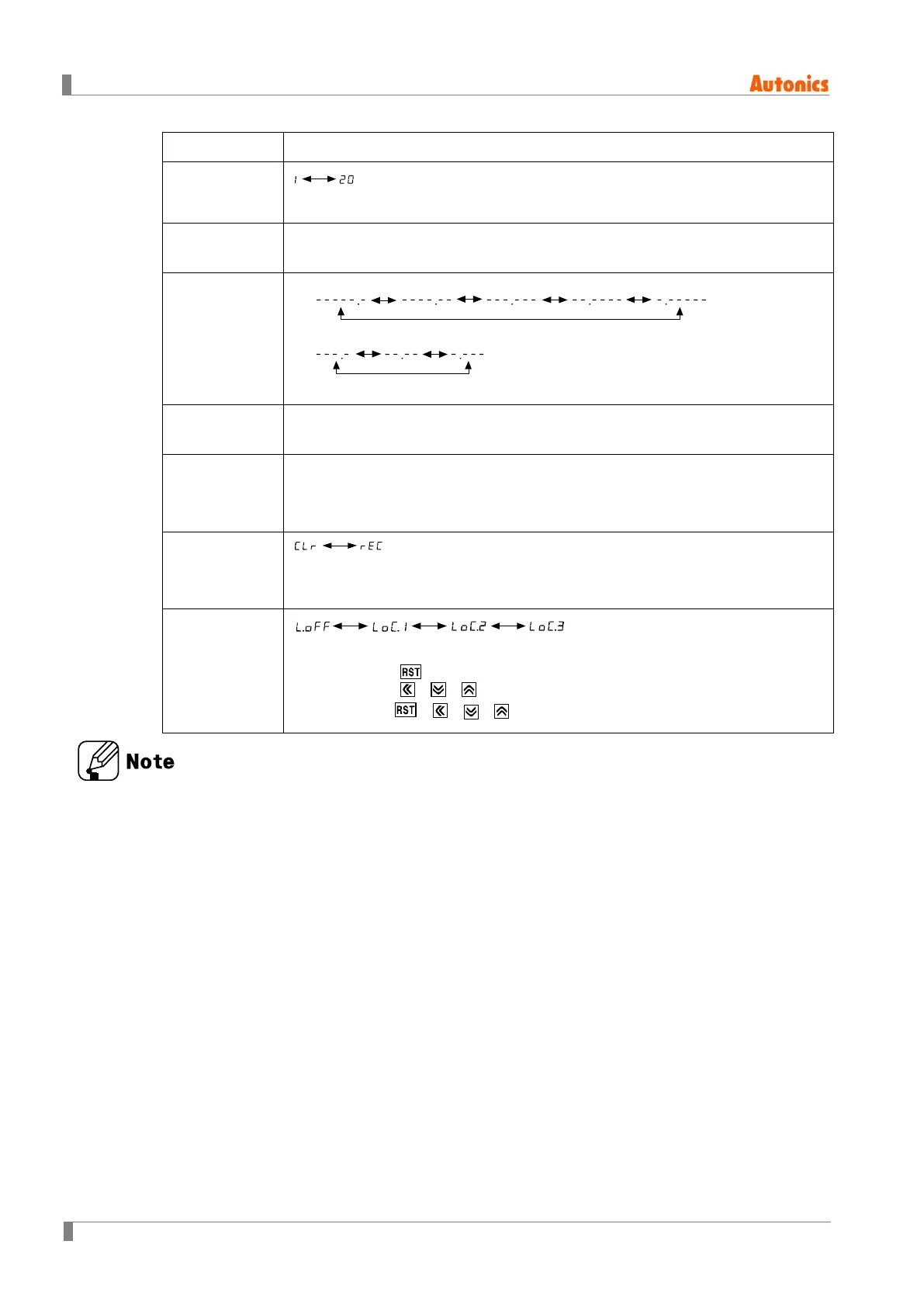

7 Counter Mode
44 © Copyright Reserved Autonics Co., Ltd.
Parameter Parameter setting value
Min. reset time
[RST]
, unit: ms
Set min. width of external reset signal input.
Input logic
[SIG]
NPN: no-voltage input, PNP: voltage input
Check input logic (NPN, PNP).
Prescale
decimal point
2
[ScDP]
6-digit model
4-digit model
Decimal point of prescale should not set smaller than decimal point [DP].
Prescale value
[SCL]
Setting range of prescale value
6-digit model: 0.00001 to 99999.9, 4-digit model: 0.001 to 999.9
Start point
value
[STRT]
Setting range is linked with decimal point [DP].
6-digit model: 0.00000 to 999999, 4-digit model: 0.000 to 9999
When input mode is DN, DN-1, DN-2, start point value does not appear.
Memory
protection
[DATA]
CLR: Resets the counting value when power OFF.
REC: Maintains the counting value when power OFF. (memory protection)
Key lock
[LOCK]
lOFF: Unlock keys, key lock indicator turns OFF
LOc1: Locks key, key lock indicator turns ON
LOc2: Locks
, ,
keys, key lock indicator turns ON
LOc3: Locks ,
, ,
keys, key lock indicator turns ON
1: For 1-stage setting value change model, OUT1 does not appear. The output time of OUT2 is
displayed as OUtT.
2: Decimal point and prescale decimal point
Decimal point: Set the decimal point for display value regardless of prescale value.
Prescale decimal point: Set the decimal point for prescale value of counting value
regardless of decimal point of display value.
