4 Connection Method

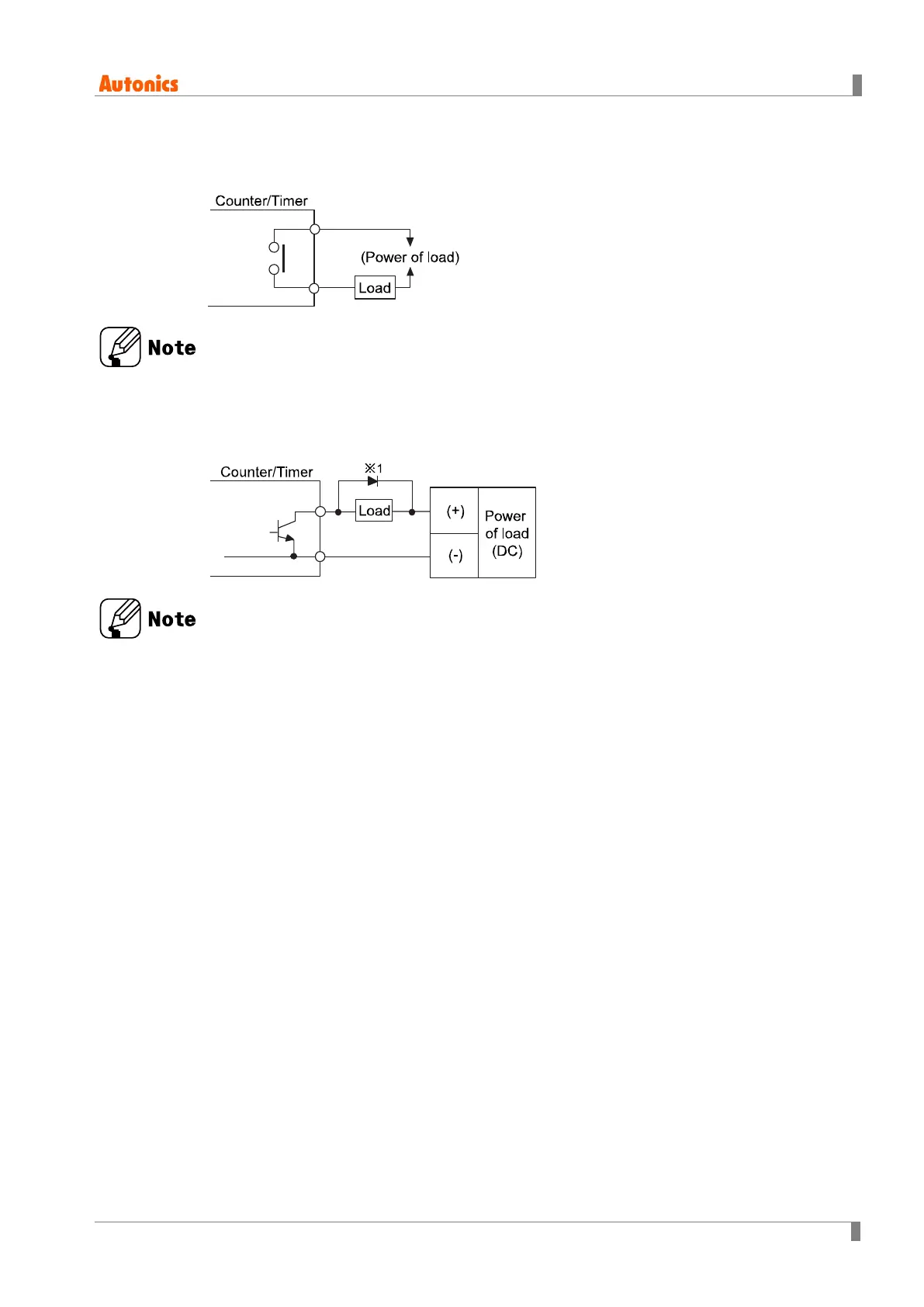

4.2.2 Output connection

(1) Contact output

Select the load which capacity is not over contact capacity.

(2) Solid-state output

 For solid state output, select load power and load not to be over (max. 30VDC, 100mA),

switching capacity.

 Do not supply reverse polarity voltage.

※1: For using inductive load (relay, etc), connect surge absorber (diode, varistor, etc) at the both

ends of load.
