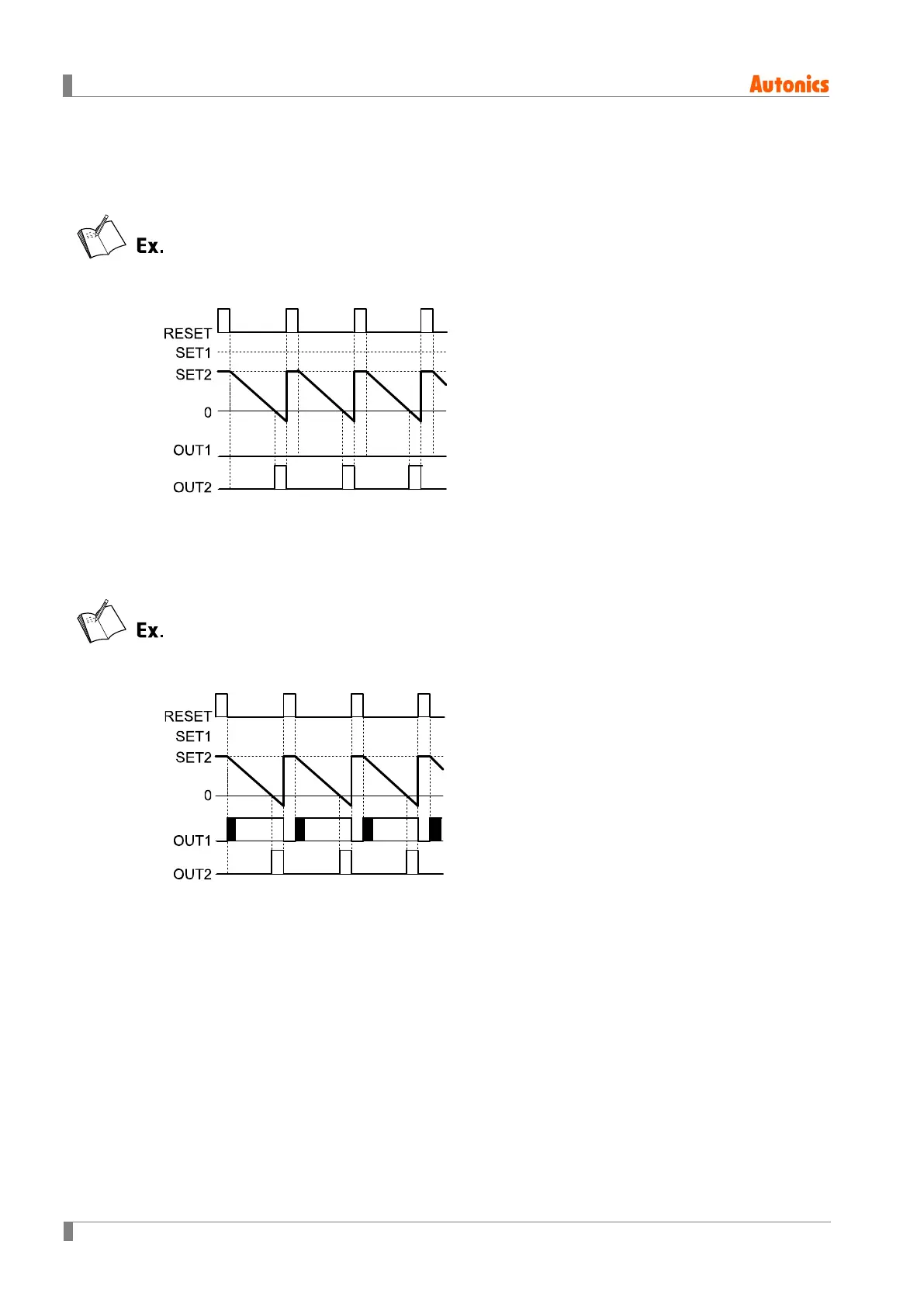

5.5.2 When SET1 is larger or equal than SET2 at down mode
(1) When SET1 > SET2
 Output of OUT1 does not execute.
※Output mode: F
(2) When SET1 = SET2
 Output of OUT1 turns ON for RESET OFF.
※Output mode: F
