5.5 Output operation for other conditions
5.5.1 Start point value is larger than setting value
(UP, UP-1, UP-2, UP-3, UD-A, UD-B, UD-C mode)

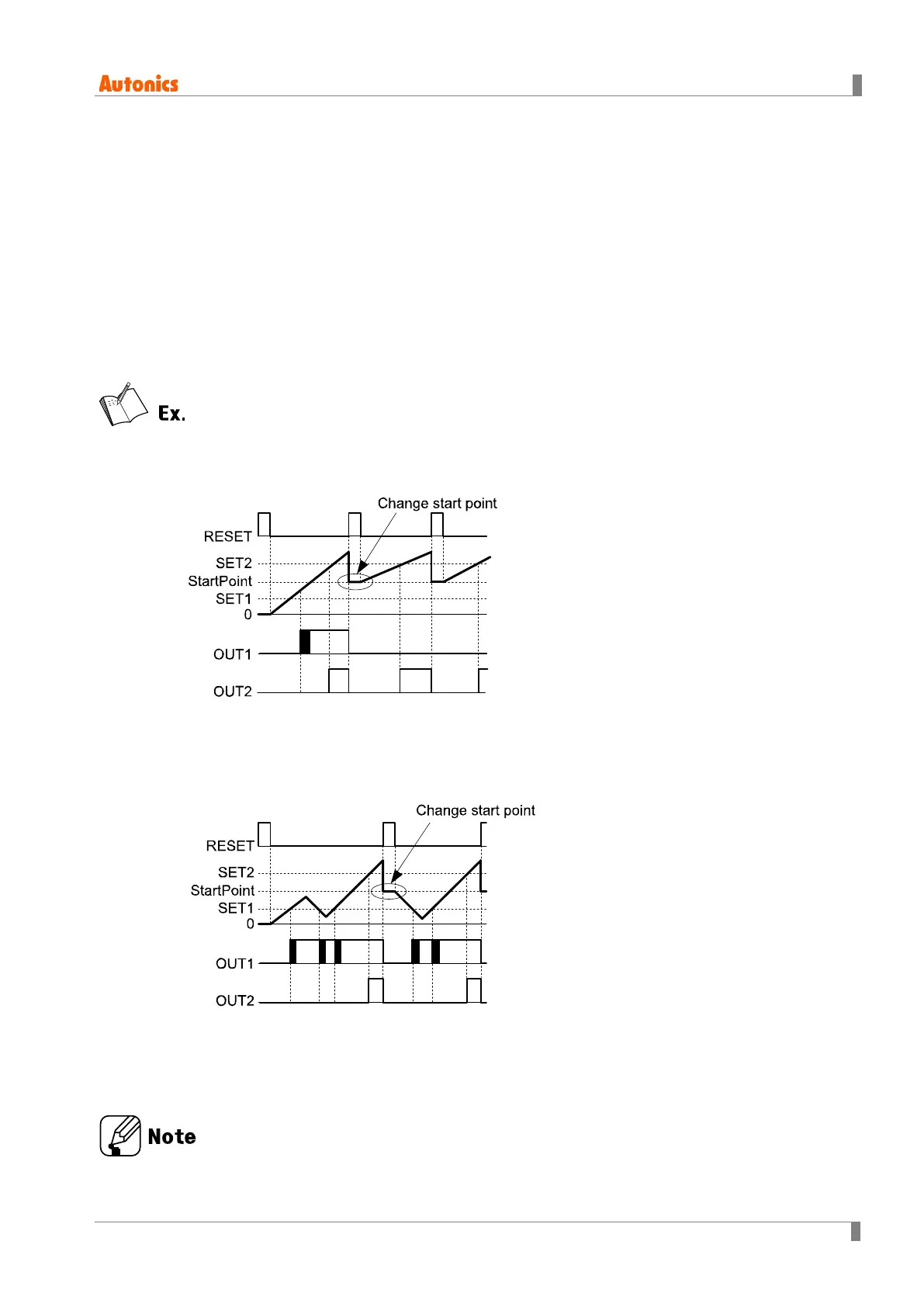

(1) When setting SET > Start point > SET1
 UP, UP-1, UP-2, UP-3 mode
: Output of OUT1 does not execute. When PV is same as SET2, output of OUT2 turns
ON.
 UD-A, UD-B
※1
, UD-C
※1
mode
: When PV counts down and is same as SET1, output of OUT1 turns ON.
※Output mode: F
Input mode:
UP, UP-1, UP-2, UP-3
※Output mode: F
Input mode:
UD-A
, UD-B
※1
, UD-C
※1
(2) When setting SET2 > Start point = SET1
In case of UP, UP-1, UP-2, UP-3,
UD-A
, UD-B
※1
, UD-C
※1
mode, output of OUT1 turns ON
when RESET ON to OFF.
※1: This is for the voltage input(PNP)/no-voltage input(NPN) selectable model (CX6□-□□).
