5 Counter mode
46 © Copyright Reserved Autonics Co., Ltd.
5.2.14 Start point value
In case of counter operation, set the start value for counting at Start point [START].
 It is not available for DN, DN-1, DN-2, DN-3 input mode.
 It is not available when TOTAL COUNTER
※1
is ON.
 When pressing the RESET k ey, PV is reset as the start point value.
 In case of C, R, P, Qoutput mode, it counts up and PV starts from the start point value.
 In case of counter operation and UP, UP-1, UP-2, UP-3, UD-A, UD-B
※1
, UD-C
※1
input
mode, start point setting is available.
 When changing the start point value at function setting mode and returning to RUN mode,
PV is changed as the start point value.
When changing the start point value at function setting mode, PV is reset.
 Setting range: 0.00000 to 999999
 Start point setting method is same as SV setting method.
 Setting range of start point value is linked with decimal point [DP].
※1: This is for the voltage input(PNP)/no-voltage input(NPN) selectable model (CX6□-□□).

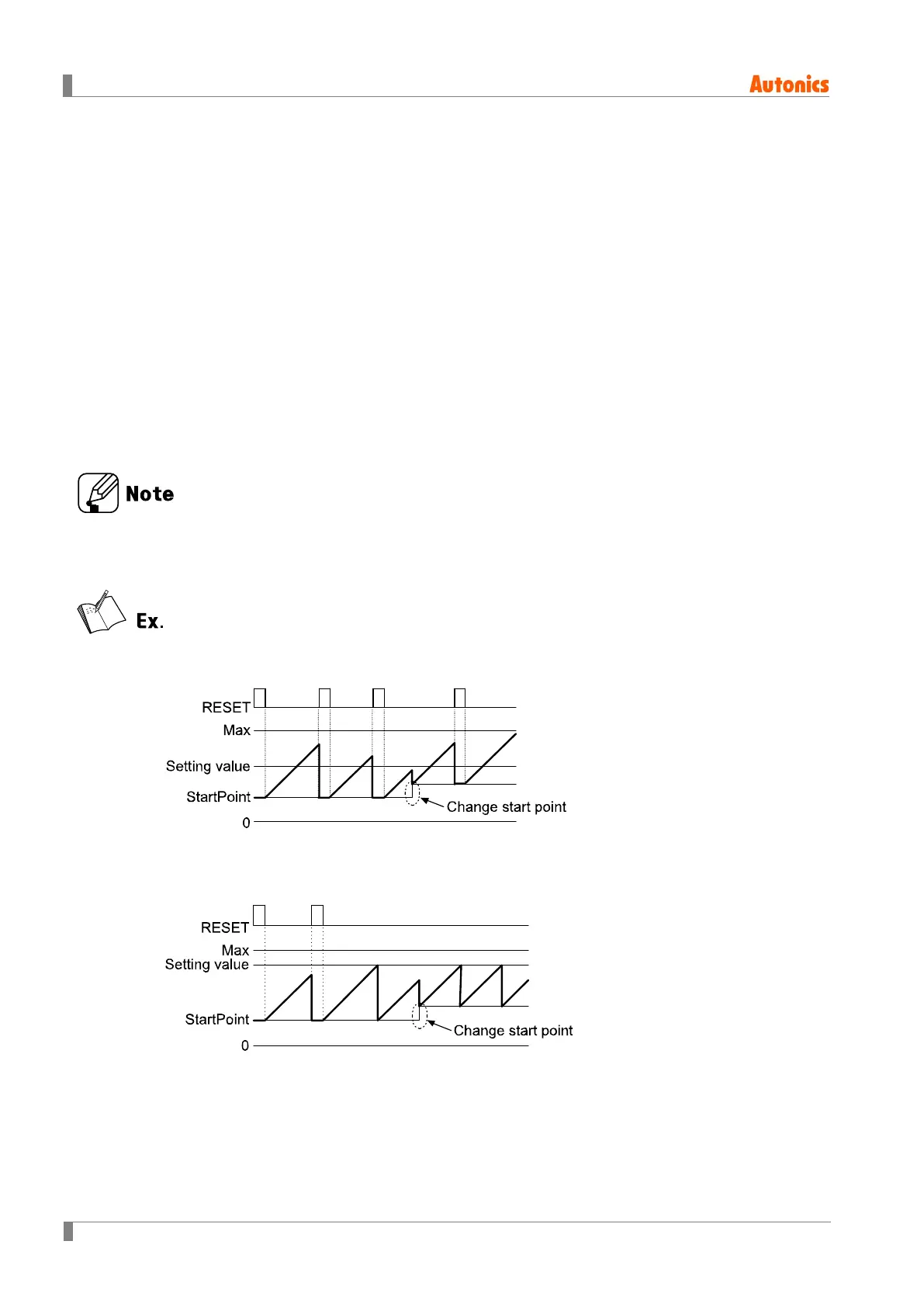

※Start point for F output mode
※Start point for C output mode
