Autonics CX Series User Manual

6 Timer mode
© Copyright Reserved Autonics Co., Ltd. 63
6.2.1 Counter/Timer
Select operation type as counter or timer.
※Right after the selecting counter/timer, the below parameters are changes as the dedicated
peration.

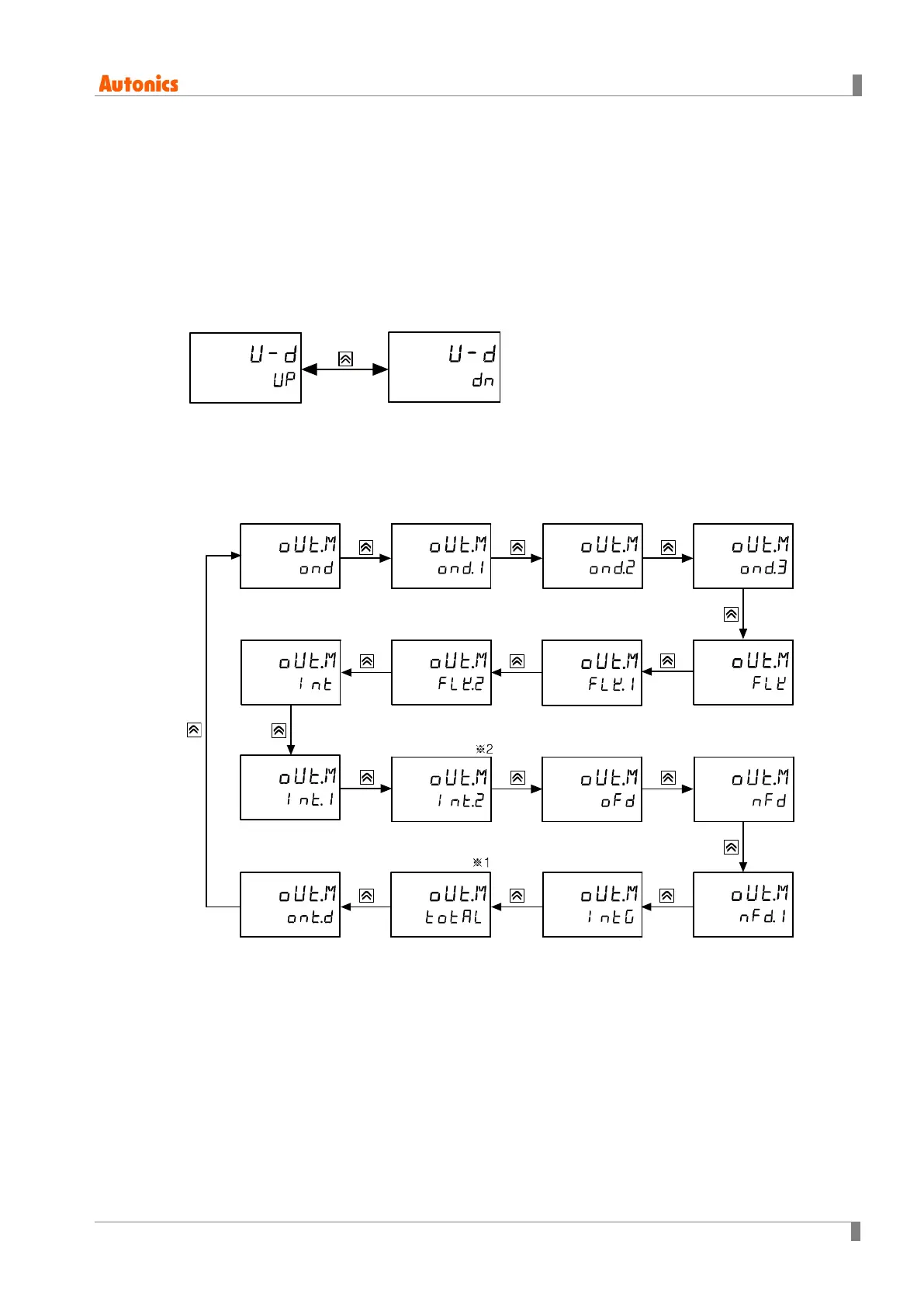

6.2.2 UP/DOWN mode
Set timer up/down mode.
6.2.3 Output mode
Set timer output mode; Signal ON Delay [OND, ONd1, ONd2, ONd3], Flicker [FLK, FLk1, FLk2],
Interval [INT, INt1, INt2], Signal OFF Delay[OFD], ON-OFF Delay [NFD, NFd1],
Integration Time [INTG], Total Counter
※1
[TOTAL], ON Time Delay[ONtD].
(1) Output mode depending on model type
 1-stage setting model (CX6□-1P□□)
OND, ONd1, ONd2, ONd3, FLK, FLk1, FLk2, INT, INt1, OFD, NFD, NFd1, INTG,
TOTAL
※
1
, ONtD
 2-stage setting model (CX6□-2P□□)
OND, ONd1, ONd2, ONd3, FLK, FLk1, FLk2, INT, INt1, INt2
※
2
, OFD, NFD, NFd1,
INTG, TOTAL
※
1
, ONtD
