5 Counter mode
54 © Copyright Reserved Autonics Co., Ltd.

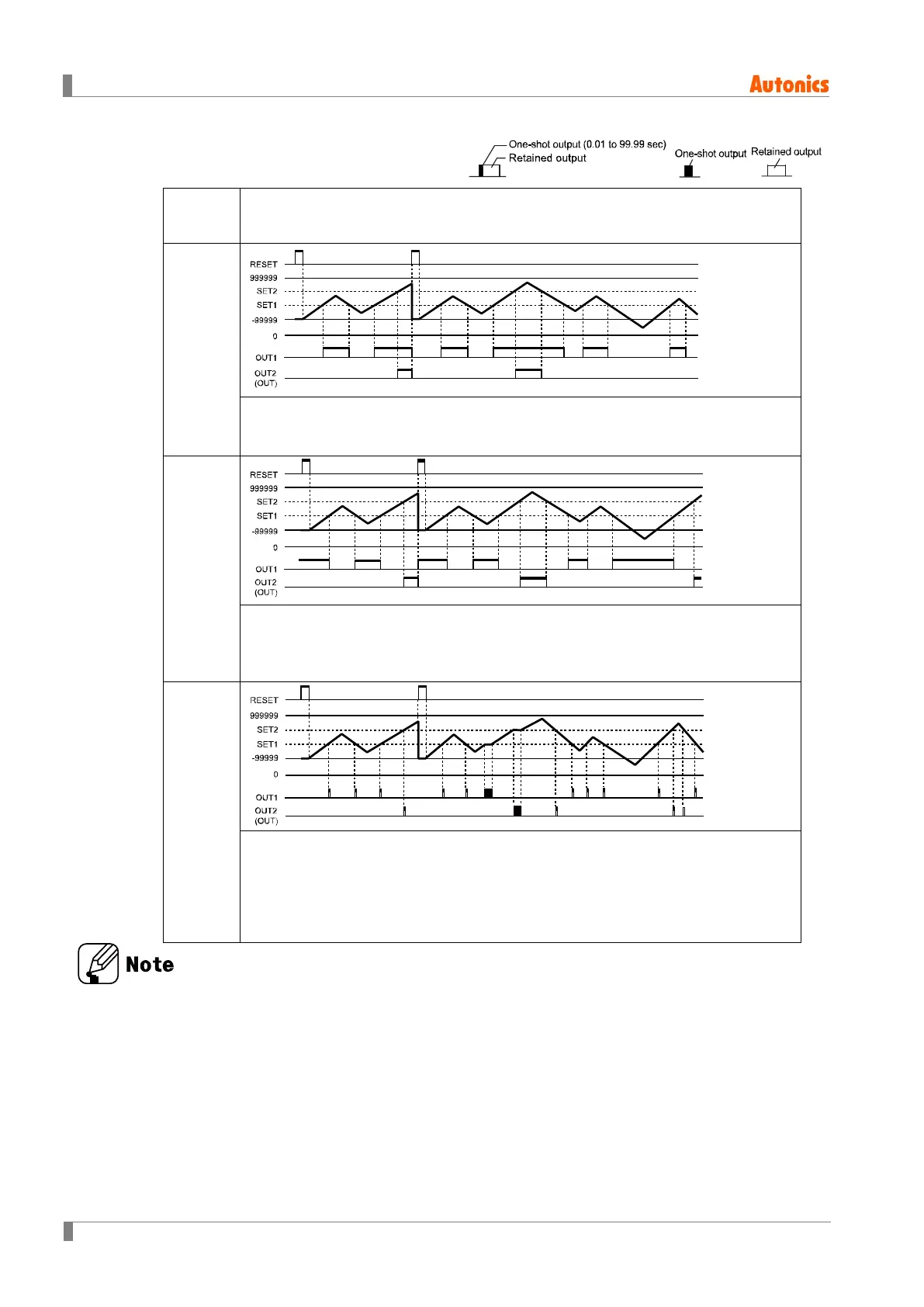

Output
mode
Up/Down A, B, C
S [S]
※OUT1 keeps ON status in following condition: Counting display value ≥ SET1
※OUT2 keeps ON status in following condition: Counting display value ≥ SET2
T [T]
※OUT1 output is off: Counting display value ≥SET1
(when SET1 is 0, OUT1 output maintains ON state.)
※OUT2 keeps ON status in following condition: Counting display value≥SET2
D [
D
]
※When counting display value is equal to setting value (SET1, SET2) only, OUT1
or OUT2 output keeps ON status.
※When setting 1kcps for counting speed, solid state contact output should be
used. (when using contact output, it is difficult to execute normal output
operation due to contact reaction time.)
※OUT1 is available to set as ‘0’ regardless of output mode. The output for '0' setting executes.
※In case of C, R, P, Q output mode for OUT2, setting ‘0’ is not available.
