Autonics LE4S Series User Manual

N-26
LE4S Series
● Q1 is ON: Operating
● Sensor: NPN open collector output
● S1, S2, S3 are ON: Operating
● Please use reliable contact
enough to ow 5VDC 1mA.
● Q2 is ON: Operating
● Sensor: NPN output
● Output display
It displays the status
of output contact.
● Time progressing display
It displays the current time.
● Time unit
It displays the time unit.
(h: hour) (m: min) (s: sec)
※
When the time is progressing, it
is ashing at a rate of (0.5 sec)
● Time setting display
It displays the setting time.
● Operation mode
It displays the current operation mode.
(E.g.: OND=ON Delay)
● SHIFT key
Used for advancing to setting time change
mode and moving to each digit.
● UP key
Used for advancing to function setting
mode, setting time change checking.
● MODE key
Used for changing the set value.
● UP/DOWN
It displays time progressing
UP (▲), DOWN (▼).
● Key lock display
It displays the status
of key lock.
● RESET key
Used for initializing time progressing
and output return.

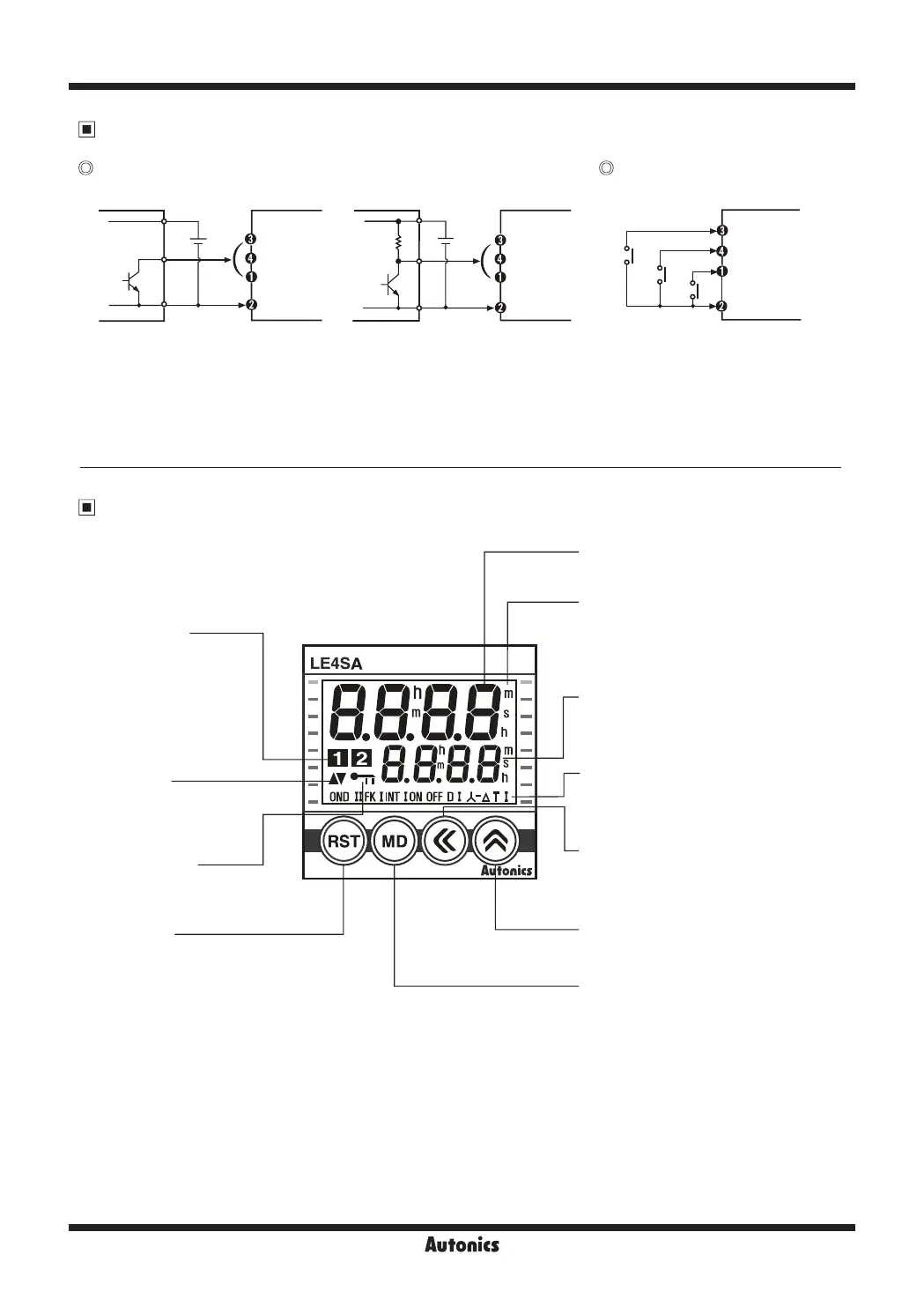

Input Connections
Unit Description
Solid-state input Contact input
※
Be sure that it is not insulated between power and input terminal block.
Sensor
LE4S
INHIBIT
START
RESET
Q1
12-24VDC
+
-
0V
Sensor
LE4S
INHIBIT
START
RESET
Q2
R
L
12-24VDC
+
-
0V
LE4S
INHIBIT
START
RESET
S3
S2
S1
0V
