Autool DM303 User Manual

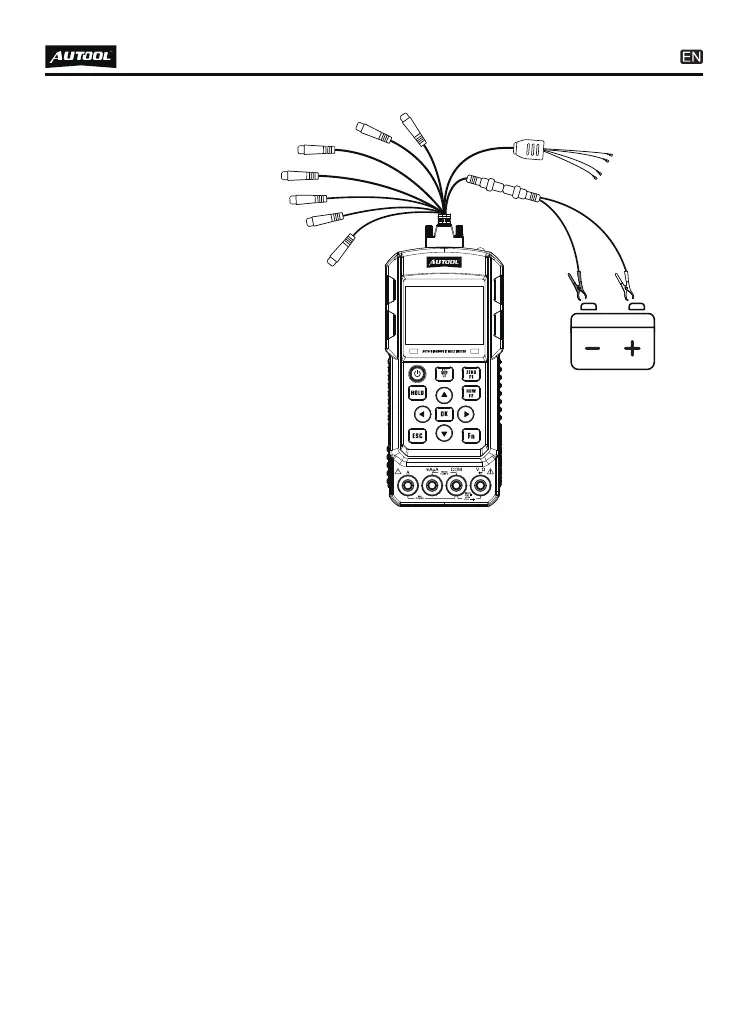

RedBlack
C01 - K
C01 - SIN
C01 - S2
C01 - S1
C01 - 1
C01
C02
Enter the function item, displayed as shown below:
●
21
Output signal:
The “square wave” is identified as the signal line to output
the 12V square wave signal.
The “K-line” is identified as the signal line to output the 5V
square wave signal.
The “sine wave” is identified as the signal line to output the
sine wave signal.
The “5V signal” is identified as the signal line to output
0V~4.5V peak-valley sine wave signal.
The “ground line” is identified as the grounding line, which is
connected to the application system.
●
●
Output signal frequency:
1Hz~10KHz Duty cycle: 10%~90%
●
●
●
●
●

Autool DM303 Specifications

General

Brand	Autool
Model	DM303
Category	Multimeter
Language	English
