K Line Date: BPS 10400
<F1>Clear <Fn><LEFT><RIGHT>set BPS
82 19 F0 A8 01 34 BF FO 19 E8
01 00 04 FF FF FF FF 01 04 FF
00 00 00 02 02 FF FF 0C 02 FF
FF 0D 01 FF 1C 01 FF 1F 02 FF
FF 20 04 FF FF FF FF 21 02 FF
FF 30 01 FF 31 02 FF FF 40 04
24

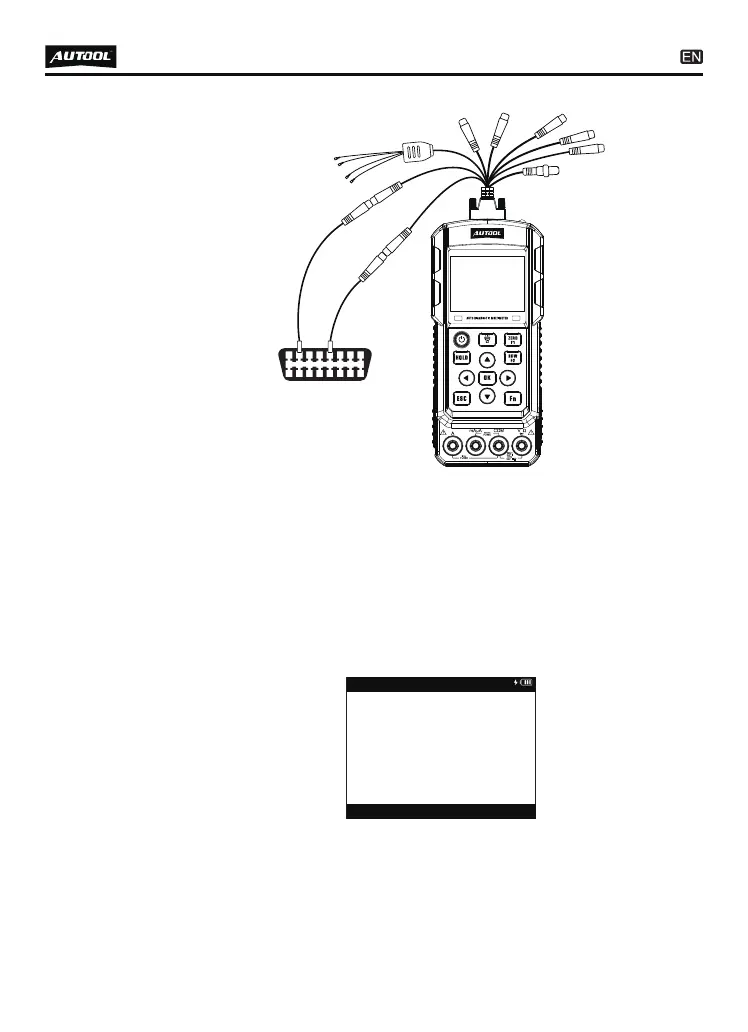

The instrument provides the detection capability of the 5V
signal lines and the 12V signal lines. When connected to the
5V signal line, the signal on the K line is 5V signal, and when
connected to the 12V signal line, the K line is 12V signal.
The instrument can test K line Baud rate 1200 / 2400 / 4800 /
9600 / 10400 / 19200 / 38400 / 57600 / 115200. If there is no
Baud rate that the user needs, please contact the manufactur-
er to customize the non-standard products.
Enter the function item, displayed as shown below:
Press [F1] to clear the current display data.
Press [HOLD] to keep the current display state. In the hold
state, press the [up / down] keys to scroll back and forth to
view the received data.
C01 - K
C01 -
GND
C01
