outdoor unit’s interconnection cord and
power supply cord from the terminal of
the electrical box.
4) If the main PCB board is loosed by
chance, remove it away;
4 Evaporator
1) Do No.”1” , “2” and “3” firstly;
2) Offload the connecting pipe;
3) Offload the tube clip at the rear;
4) Screw off the bolts at the right and
left side;
5) Lift up the evaporator, and draw it
out from the indoor unit;
5

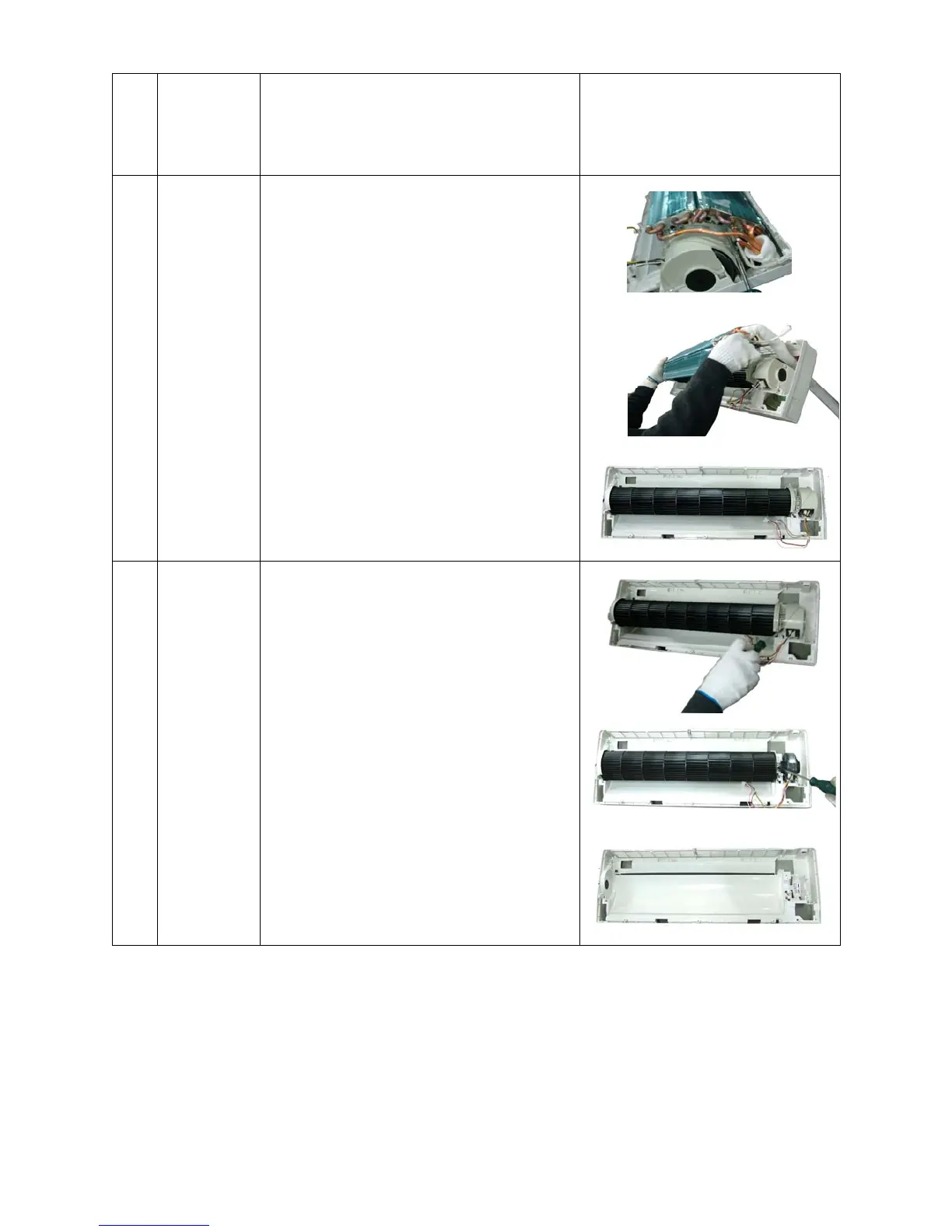

Indoor fan
Fan motor
1) Screw off one bolt from the motor
cover, and remove the motor cover;
2) Offload the motor from the fan;
3) Offload the fan from bearing;
