Avalue Technology CCD-07W01 - Ethernet LAN Port

- 12 -

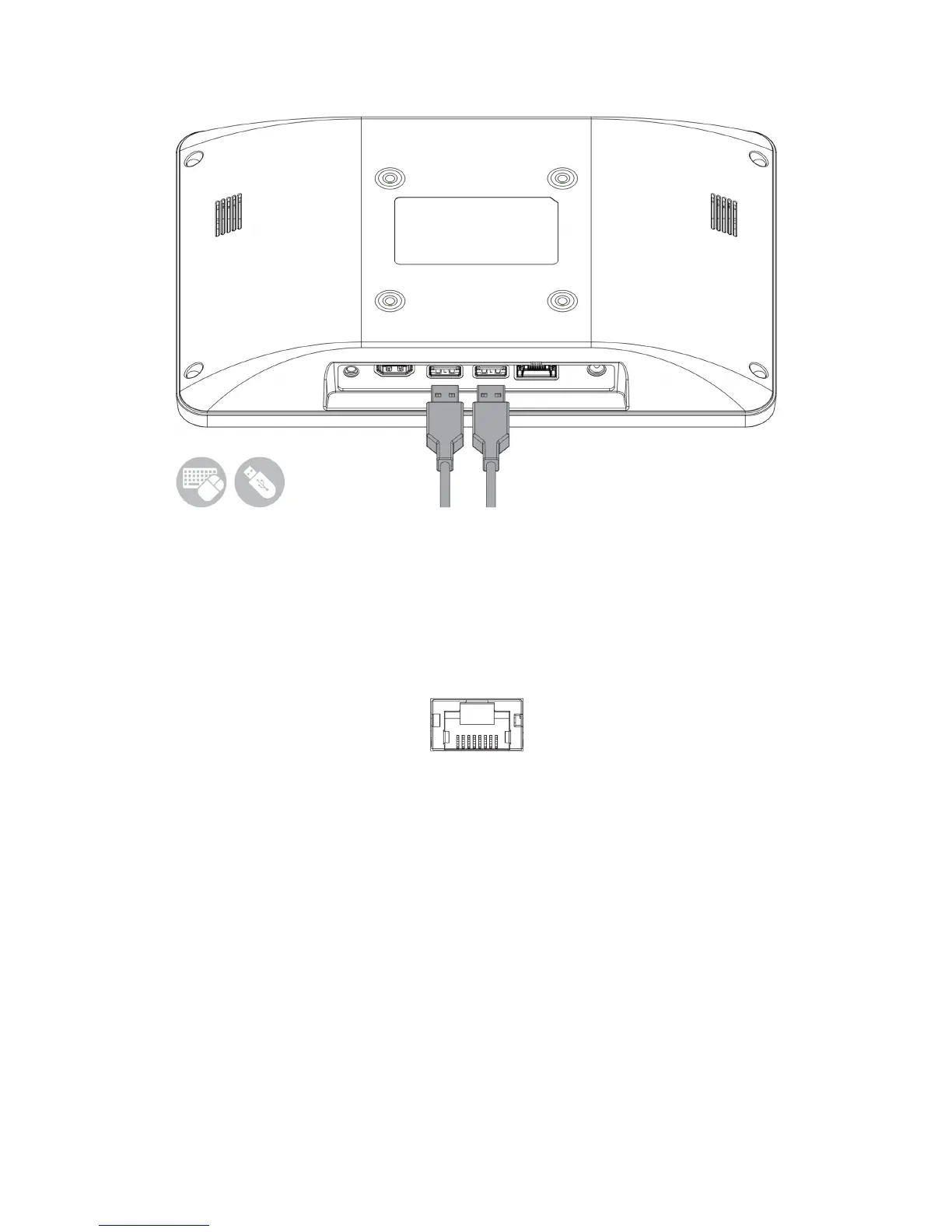

▲ Figure: Connecting USB Device via USB 2.0 Port
2.5 Ethernet: LAN Port
The 8-pin RJ-45 LAN port equipped 10/100 controller which is fully IEEE 802.3 10BASE-T and 802.3u
100BASE-T compliant supports a standard Ethernet cable for connecting to a local network.
▲ Figure: 10/100 LAN Port
