B.1 HDMI Connector

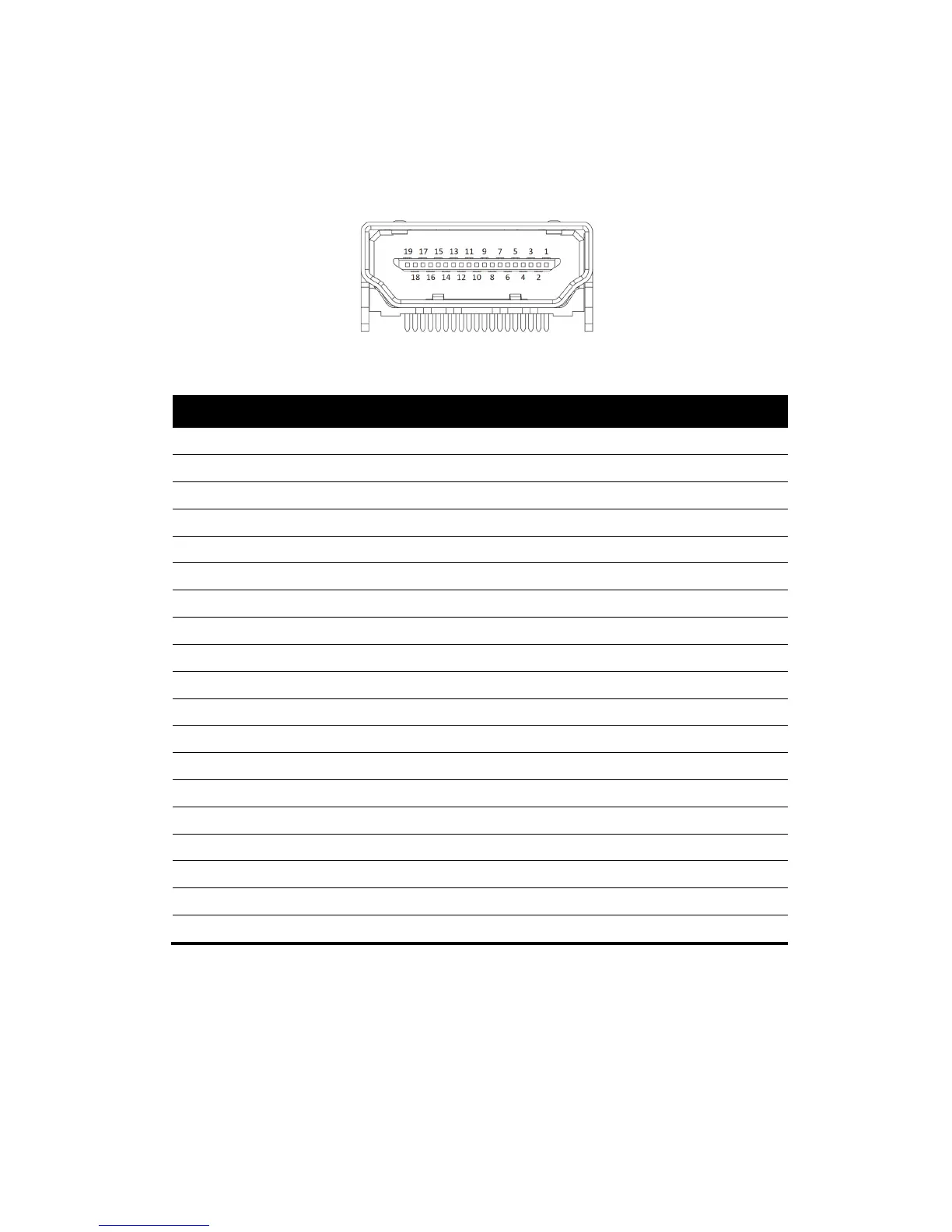

▲ Figure B.1 HDMI Connector
Pin Name Description
1 HDMI_P2 TMDS data2+
2 GND TMDS data2+ shield
3 HDMI_N2 TMDS data2-
4 HDMI_P1 TMDS data1+
5 GND TMDS data1+ shield
6 HDMI_N1 TMDS data1-
7 HDMI_P0 TMDS data0+
8 GND TMDS data0 shield
9 HDMI_N0 TMDS data0-
10 HDMI_CLKP TMDS clock+
11 GND TMDS clock shield
12 HDMI_CLKN TMDS clock-
13 NC Not Connected
14 NC Not Connected
15 HDMI_CTRL_CLK DDC clock
16 HDMI_CTRL_DAT DDC data
17 GND DDC/CEC ground
18 5V EDID/DDC power
19 HPD Hot Plug Detect
