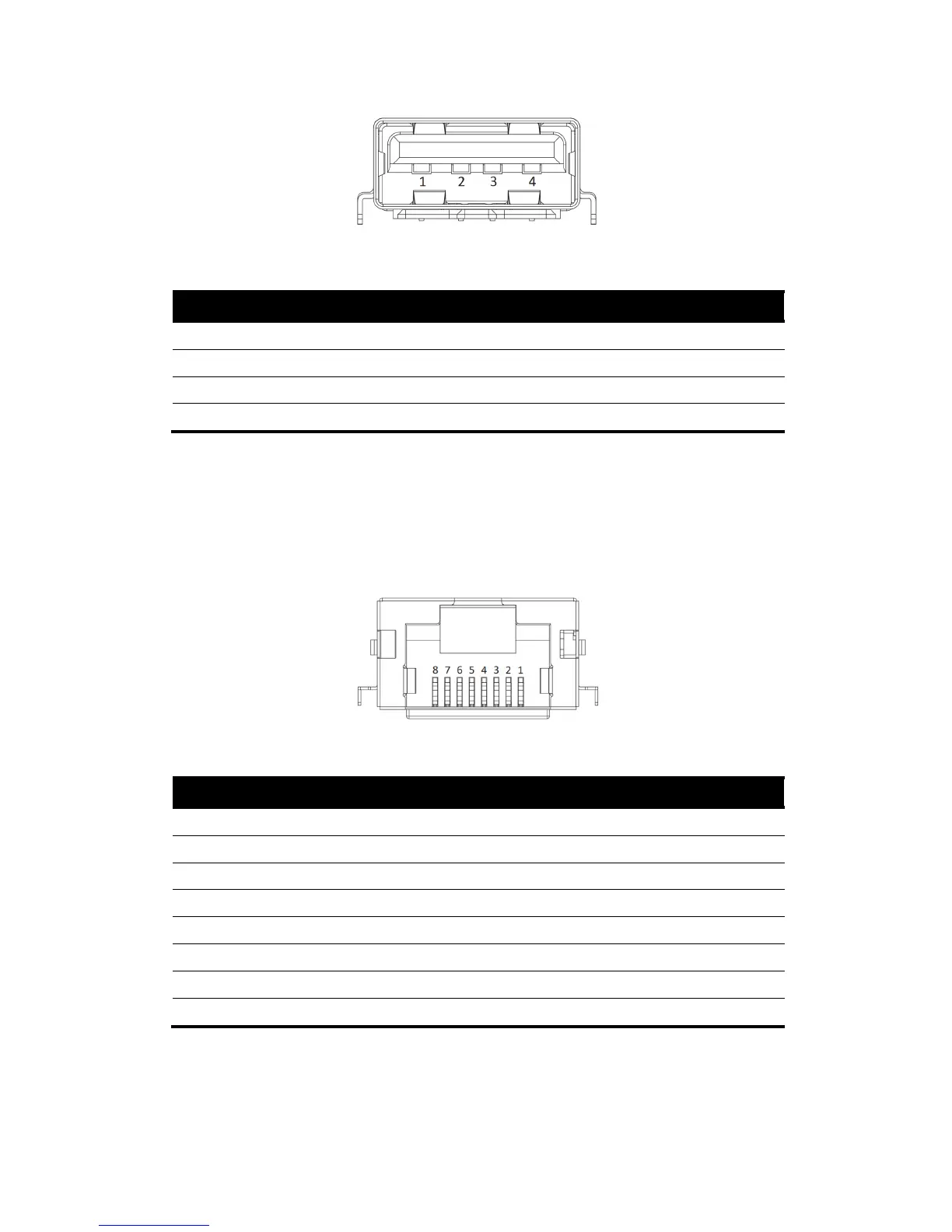

▲ Figure B.2 USB type A Connector
Pin Name Description
1 V
CC
+5v
2 D- Data-
3 D+ Data+
4 GND Signal ground
B.3 LAN Port (RJ-45)
▲ Figure B.3 LAN RJ-45 Connector
Pin Name Description
1 TX+ Transmit Data+
2 TX- Transmit Data-
3 RX+ Receive Data+
4 NC Not Connected
5 NC Not Connected
6 RX- Receive Data-
7 NC Not Connected
8 NC Not Connected
