Operating instructions
Operating controls

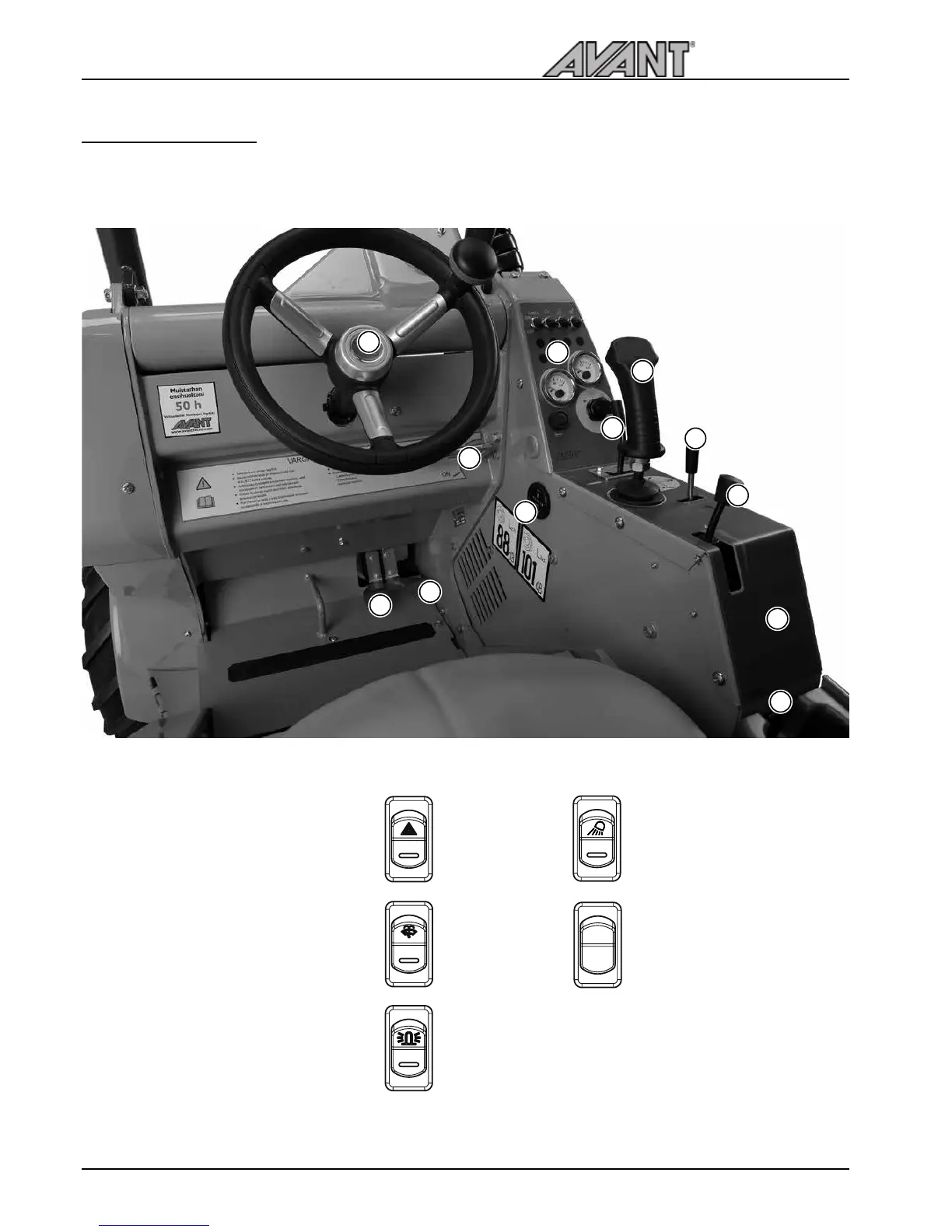

Following picture shows the location of operating controls. The location and function of controls may be slightly
different in different models, see following pages.
1. Steering wheel
2. Drive pedal, left: drive backward
3. Drive pedal, right: drive forward
4. Parking brake handle
5. Control lever of boom and bucket
6. Hand throttle lever
7. Auxiliary hydraulics control lever
8. Control lever of telescopic boom
9. 12 V outlet
10. Dashboard
11. Hour meter
12. Switches on the panel
Work light
(option)
Emergency
blinker
(option)
Windscreen
wiper and
washer
(Cab option)
Beacon
(option)
2
1
3
5
6
7
8
11
12
10
2
1
Front/rear auxi-
liary hydraulics
selector switch
(option)
4
9
