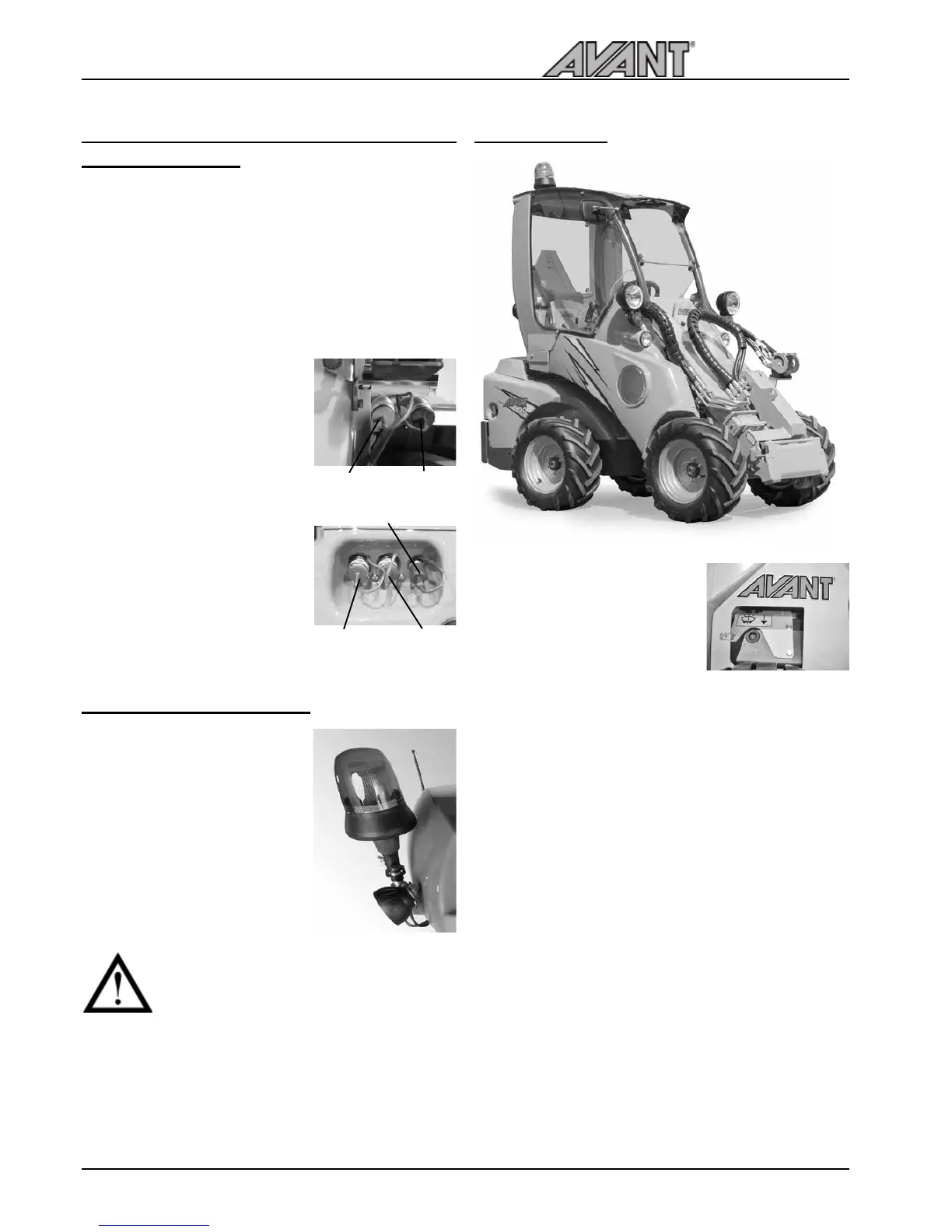

Operating instructions
Extra auxiliary hydraulics outlets, front
and rear (option)
In addition to the standard auxiliary hydraulics outlet,
the loader can be equipped with a double acting extra
outlet. The extra hydraulic outlet can be fitted either to
the front of the loader or to the rear, and the couplers
are conventional type quick couplers. The installed extra
outlet is controlled with the lever no. 9 (see page 15).
The loader can be equipped with either the rear hydraulics
outlet or with the extra front outlet – but not with both.
1. Extra auxiliary hydraulics
in the front
• Quick couplers are located
under the multi connector
2. Quick couplers in the rear
• Quick couplers are
located on top of the
radiator.
Double acting outlet
Warning beacon (option)
The beacon can be removed
quickly by unturning its retaining
screw and then by pulling the
beacon out. Place the protective
seal on the beacon stand to prevent
water entering and damaging the
connectors. Handle beacon with
care. The beacon is sealed and
its inner components cannot be
replaced or repaired by user.
Beacon includes high-voltage components.
Do not use or repair damaged beacon,
replace with new one.
Cab L (option)
Avant 400 series can be equipped
as an option with the cab L. It
consists of windscreen, equipped
with wiper and washer, right
side window and rear window.
Windscreen wiper/washer switch
is on the dashboard (see page
14) and the washer tank filler cap
is in the front chassis below the
windscreen (see picture).
pressure 1
pressure 2
pressure 1
pressure 2
tank line
