AVANT 420 - Greasing Points; Light Bulbs

35
400 Series

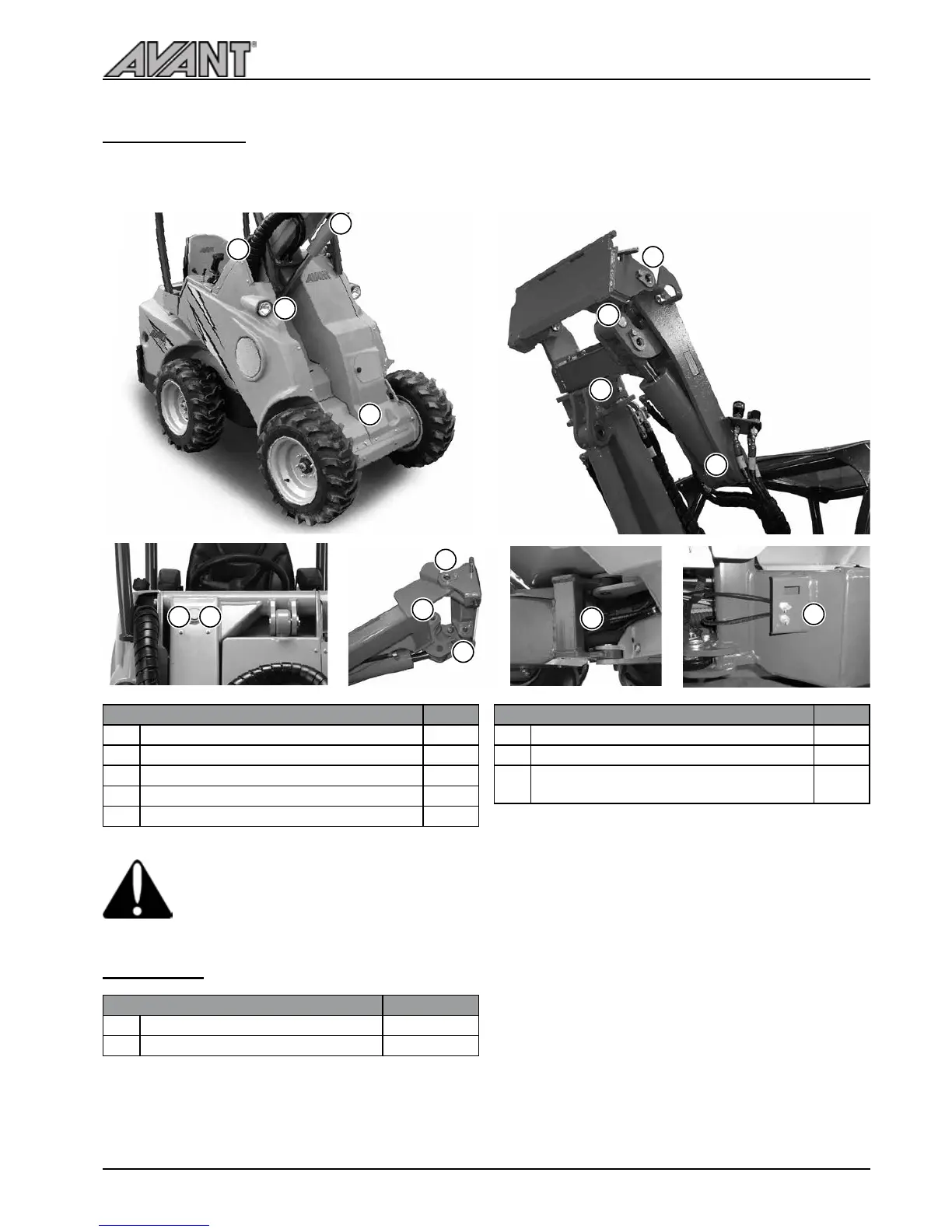

Greasing points
Following pictures show the location of greasing points.
Check the tightness of the pivot pin locking screws, if loose tighten and use thread locker.
2
1
3
5
1
4
3
5
Light bulbs
Greasing points pcs.
1. Lift cylinder, both ends 2
2. Steering cylinder, both ends 2
3. Tilt cylinder, both ends 2
4. Pivot pins on attachment coupling plate/boom 2
5. Pivot pin on loader boom
2
Greasing points pcs.
6. Articulation joint 2
7. Tilting mechanism 3
9. Telescopic boom, grease with boom com-
pletely
retracted
2
Light bulb Lamp type
1. Front light and work lights LED
2. LX/DLX Headlamps H4
4
7
7
9 9
2
6
Service and maintenance instructions
