CH100F - GENERAL DESCRIPTION AND INTENDED
USE
CH100 is a single-disk chipper with two knives used
for chipping wood with a diameter of up to 100 mm
(chip size 12 mm). In addition, it is used to clear the
embankments of roads and hiking trails as well as in
gardening and landscaping.
A loader with a performance of 7.5 to 30 kW will su-
ce as power source.
This chipper model is hydraulically driven and can be
used with the following Avant loader models:
220
225
225LPG
420
R20
520
525LPG
R28
528
630
R35
635
640
745
750
755i
760i
MAIN COMPONENTS OF THE CH100
1. UPPER CHAMBER
2. LOWER CHAMBER
3. CUTTING DISK
4. KNIFE
5. VERTICAL KNIFE
6. HORIZONTAL KNIFE
7. Puhallusputki
8. DISCHARGE PIPE LID
9. DRAWBAR
10. FEED HOPPER

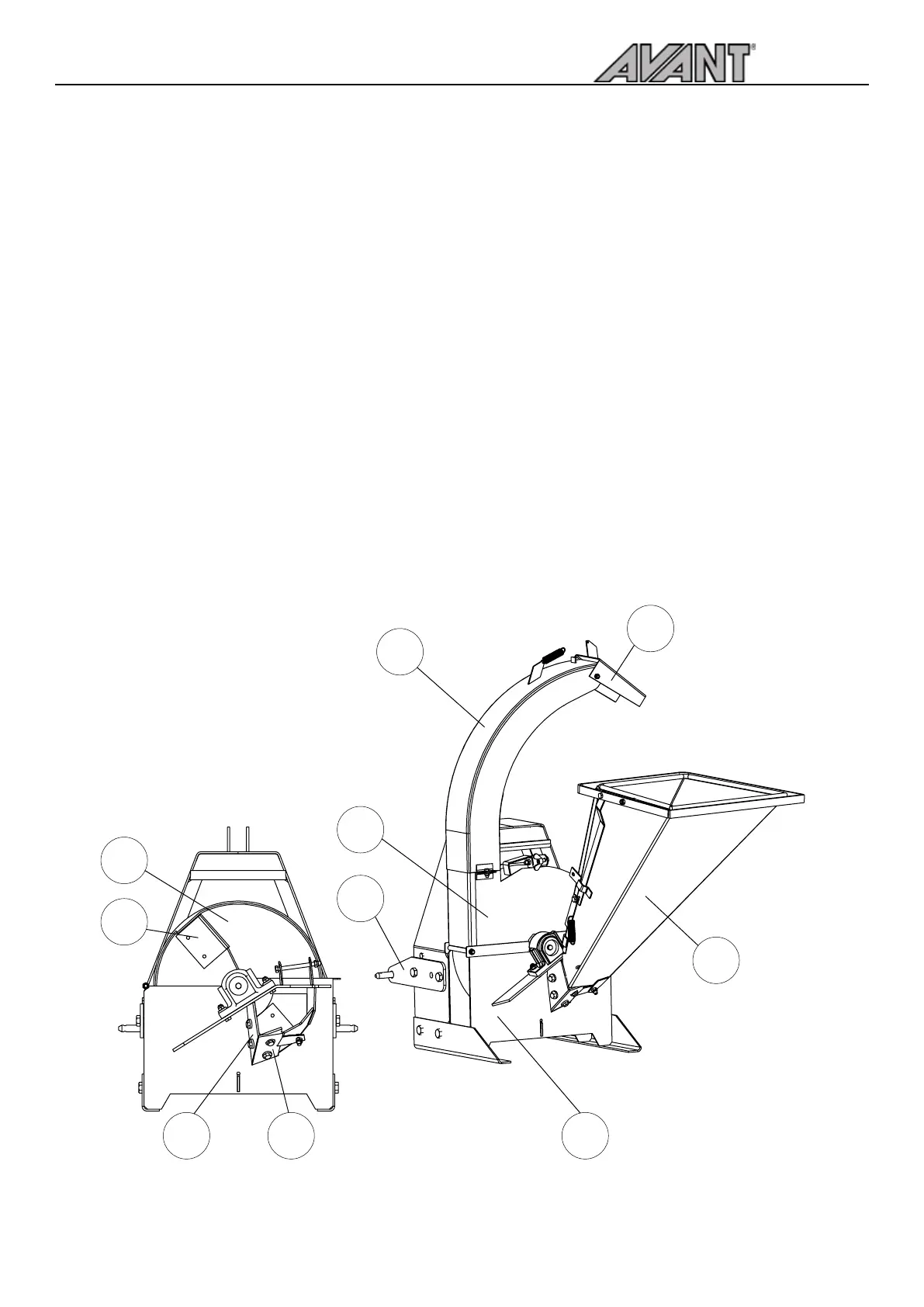

Fig. 1. Main components
