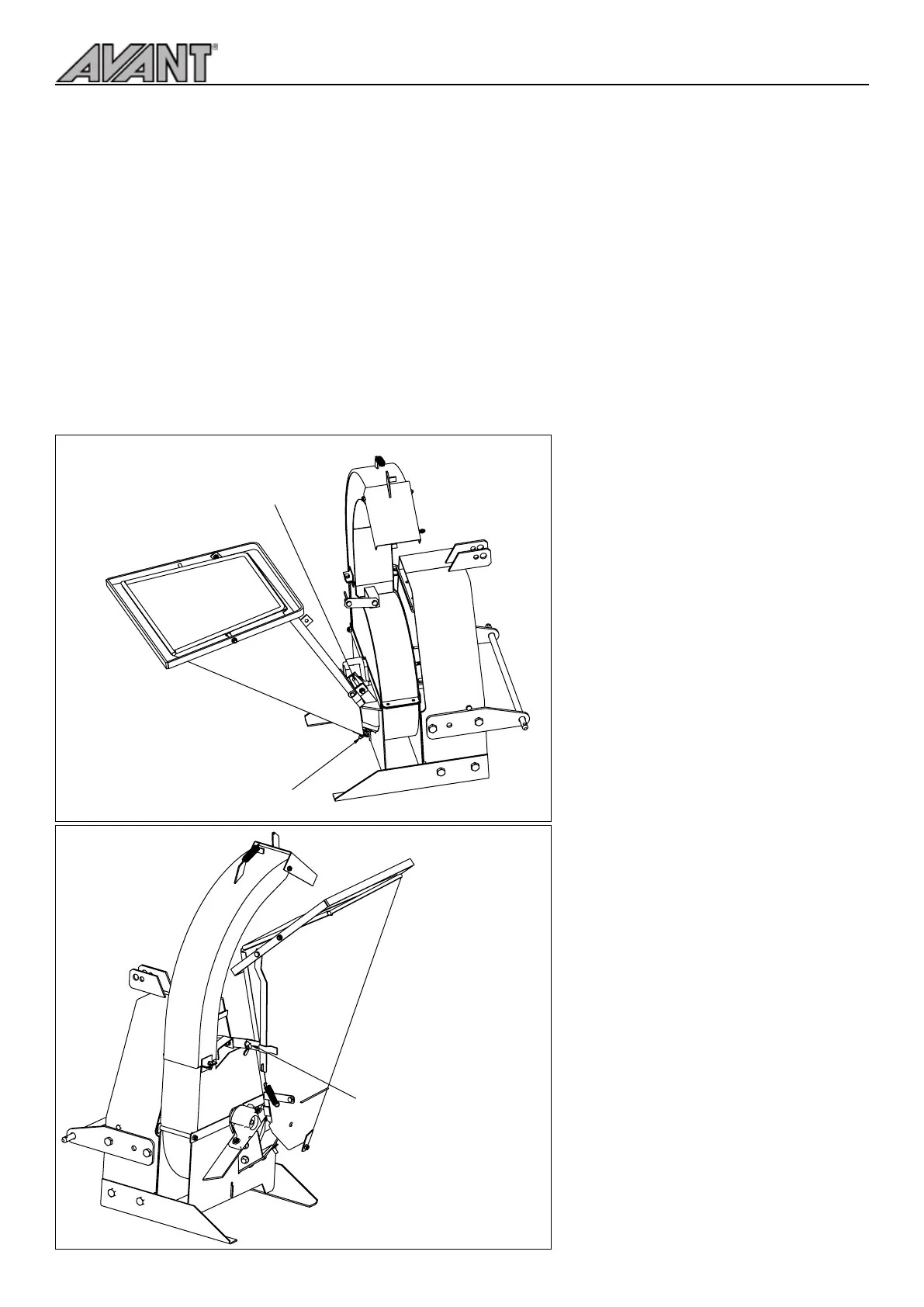

Fig. 4a. Installation of the feed chute /
Transport position
See g 4. Installation of the feed
chute / Chipping position
ASSEMBLY INSTRUCTIONS
1. Attach the feed hopper to the chipper using
M12x120 and M12x30 hexagon head bolts and
lock nuts. Lock the feed hopper in its operating
position. Fig. 1.
2. Mount the discharge pipe to the chipper using
two M10 bolts.
3. Mount the chipper to the quick coupling plate of
the loader.
Screw
Buttery nut
screw
Screw
Lock nut
Lock nut
