29
CH100
M12x180
M12 DIN 985
M10x25
M10 DIN 985
100Nm
KNIFE AND ANVIL MAINTENANCE
Read the safety instructions.
The disk continues rotating like
a ywheel after the hydraulic
power is disengaged. Please
wait until the disk has stopped
completely before performing
any further actions.
When manually turning the
rotor, never touch the edges of
the lower chamber or other parts
where there is the risk for the
hands to get squeezed between
the lower chamber and the rotor
knives or blades.

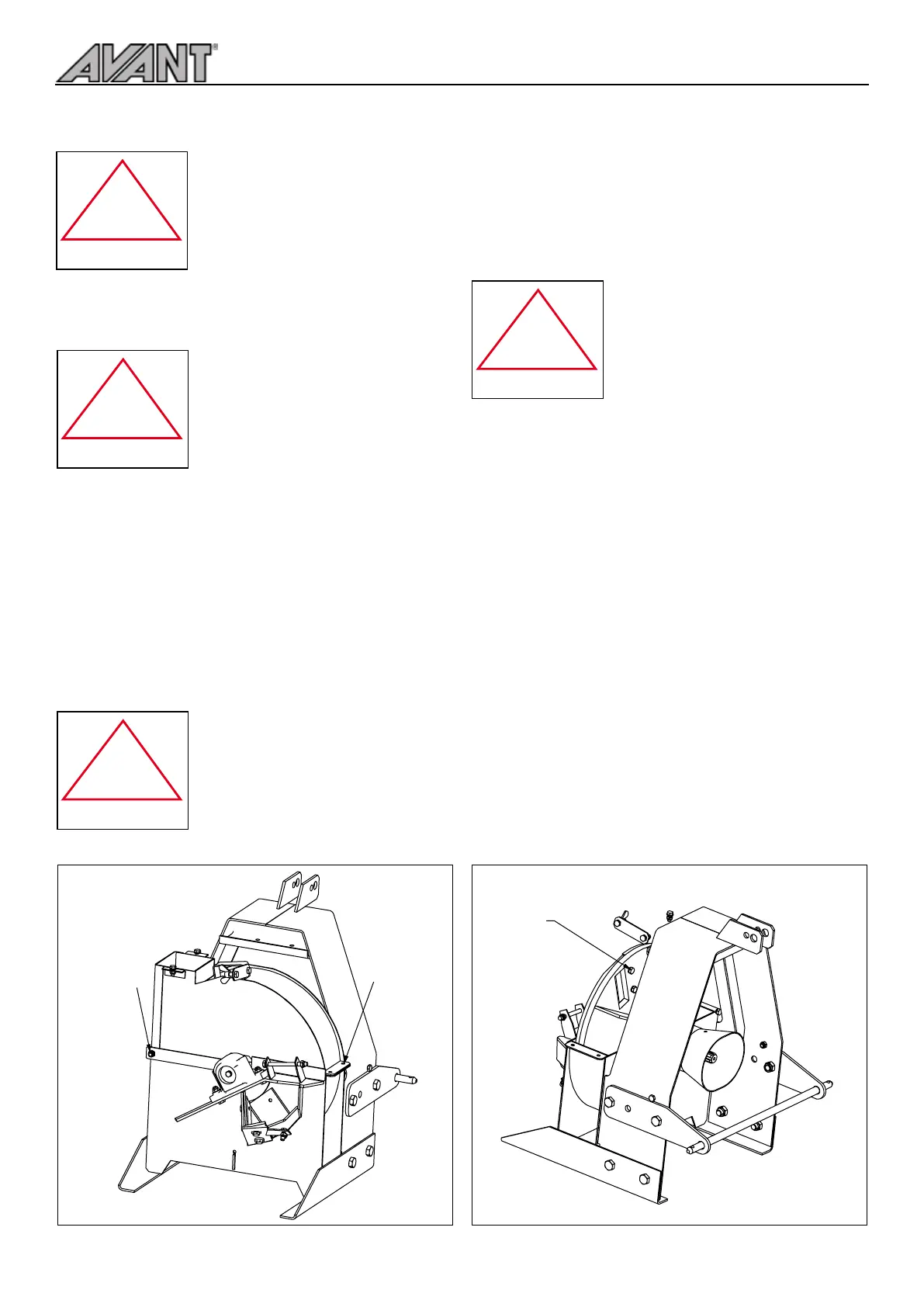

OPENING AND REMOVING THE UPPER CHAMBER
• Remove the M10 mounting bolts of the upper
chamber. Swing the upper chamber to the side.
• Remove the M12 pin to release the upper chamber.
Exercise extreme caution when
opening the upper chamber.
Take appropriate measures to
keep the upper chamber from
falling down.
Fig 11. Removing the upper chamber
REMOVING THE KNIVES
1. Remove the knife fastening bolts (M12). Turn the
wrench in such a way that your hands would not
hit the knife if the wrench should slip. Fig 12.
Wear protective gloves when
handling knives or anvils.
Fig 12. Removing the knife fastening bolts
!
DANGER!
WARNING!
!
WARNING!
!
WARNING!
!
