28
CH100
100Nm
80Nm
50Nm
1
5
4
3
2
Item Width across ats,
mm (inches)
Tightening torque, Nm (lbf)
1. Check the knife bolts for tightness. 19 (12/16”) 100 (73 11/16)
2. Check the bearing housing bolts for tightness
on both sides.
17 (11/16”) 50 (36 7/8)
3. Check the anvil bolts for tightness. 19 (12/16”) 80 (58 15/16)
4. Check the clearance between knives and verti-
cal anvils.
19 (3/4”) 1,2 - 1,5 mm (0,02 - 0,06”)
5. Check the bearings for radial clearance. 0,02 - 0,03 mm (0,008 - 0,0012”)

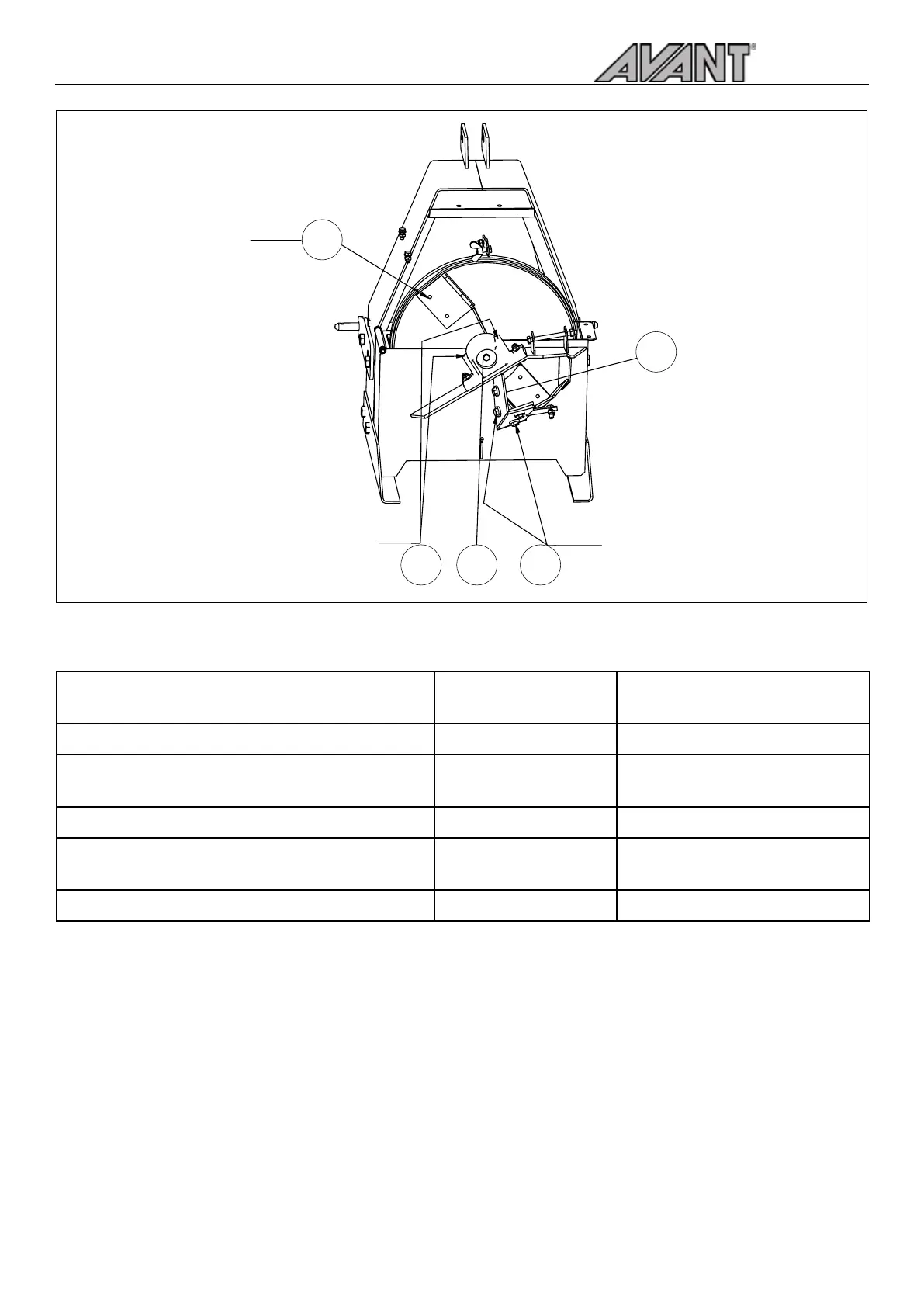

Fig 10. Checklist for tightening and checking clearances
