AVANT CH100 - Ch100 Bearings

37
CH100
1
7
6
5
4
3
7 5
4
2.1
2.3
5.2
5.1
2.2
5.1
5.2
7
2.3
2.12.2
8
9
10

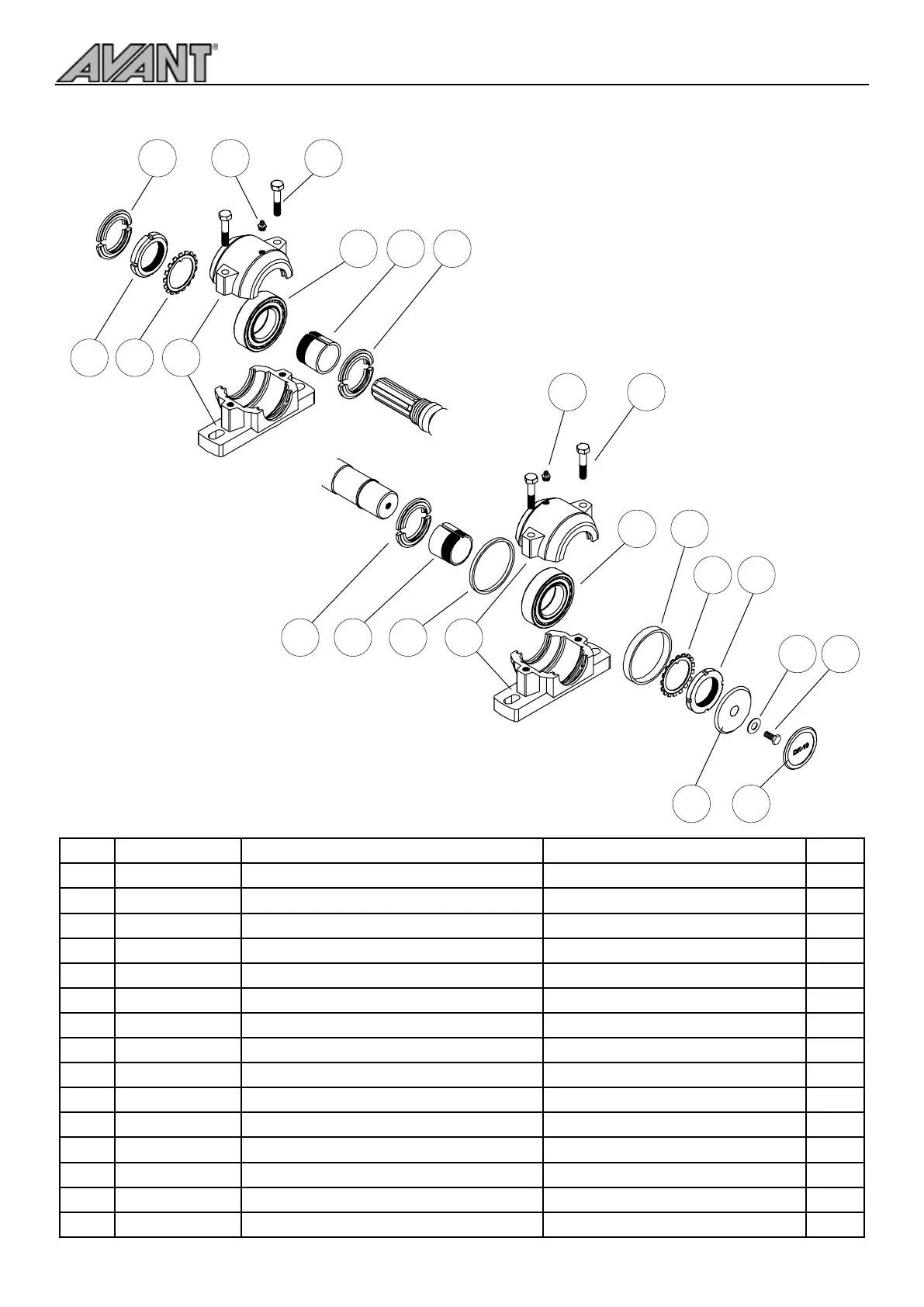

BEARING SYSTEM
FARMI 100F
36
1
7
6
5
4
3
7 5
4
2.1
2.3
5.2
5.1
2.2
5.1
5.2
7
2.3
2.12.2
8
9
10
Part Order no Description Remarks Qty
1 54513569 Dust cover 1
2 54512371 Tightener sleeve complete
2
2.1
-
Axle nut 1
2.2
-
Locking plate 1
2.3
-
Tightener sleeve 1
3 43513360 Spacer ring D90/83X12.7 1
4 54512363 Tapered roller bearing 2
5 54513590 Bearing housing 2
5.1 52401015 Grease nipple AR1/8 1
5.2 - Screw M10x50 DIN 931 10.9 2
6 43513350 Spacer ring D90/83X5.4 1
7 52334232 Seal 1
8 43340934 End plate 1
9 52214251 Lock washer M10 NORD-LOCK 1
10 52060928 Screw M10X20 DIN933 88 1
FARMI 100 BEARING SYSTEM
