2. Step:

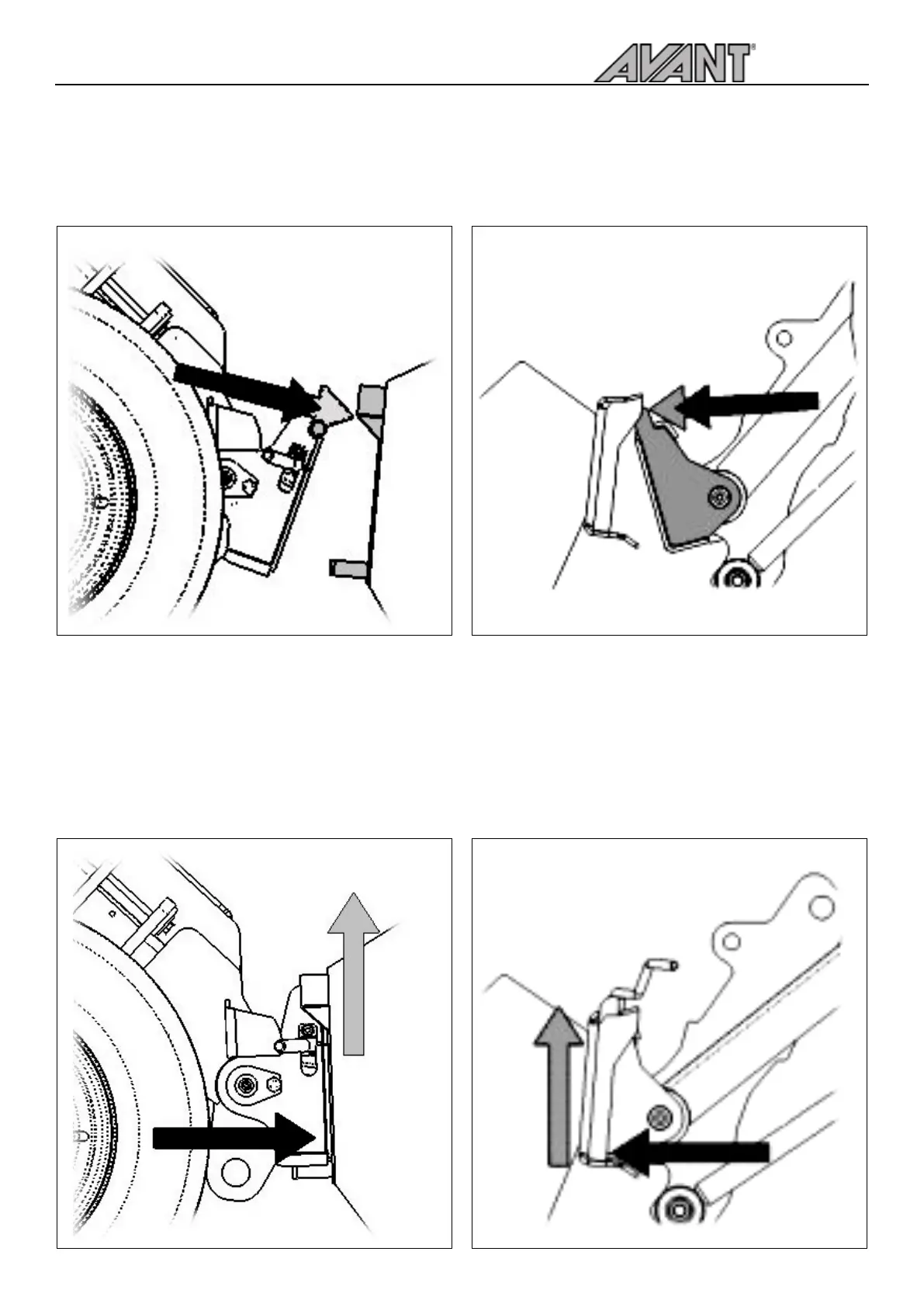

• Turn the quick attach plate hydraulically to an obliquely forward position.
• Drive the loader onto the attachment. If your loader is equipped with a telescopic boom, you can utilise
this. Align the upper pins of the loader’s quick coupling plate so that they are under the corresponding
brackets of the attachment.
200-700 series
loaders:
Old 200 series
loaders:
3. Step:
• Lift the boom slightly – pull the boom control lever backward to raise the attachment o the ground.
• Turn the boom control lever left to turn the bottom section of the quick attach plate onto the attachment.
• Lock the locking pins manually or lock the hydraulic locking.
• Always check the locking of pin / pins.
200-700 series
loaders:
Old 200 series
loaders:
