Avantree Orbit Pro - OPTION 3: AUX 3.5 mm port

10
EN
ORBIT PRO
User Manual
STEP 1

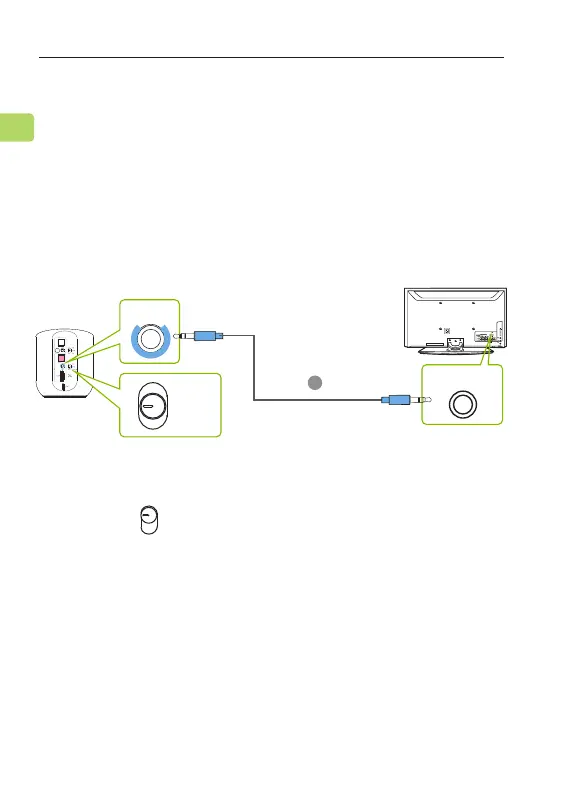

Plug the provided AUX 3.5mm audio cable into the
TV’s AUX 3.5mm output port, then plug the other end
into the transmitter’s AUX 3.5mm port in the “Input”
section.
OPTION 3: AUX 3.5mm port
STEP 2
Switch the button to the “AUX” position.
