4. Attach the rear mounting brackets and secure the switch to the rear rack posts.
a. Slide a rear mounting bracket into each guide bracket channel until flush with the rear
rack posts.
b. Secure the rear mounting brackets to the rear rack posts with screws.
c. Secure the rear mounting brackets to the switch chassis with the clamp plates and pan-
head screws.
d. (Optional) If you have access to the sides of the switch in your rack, use the extra pan-
head screws to provide additional strength to the rear brackets.

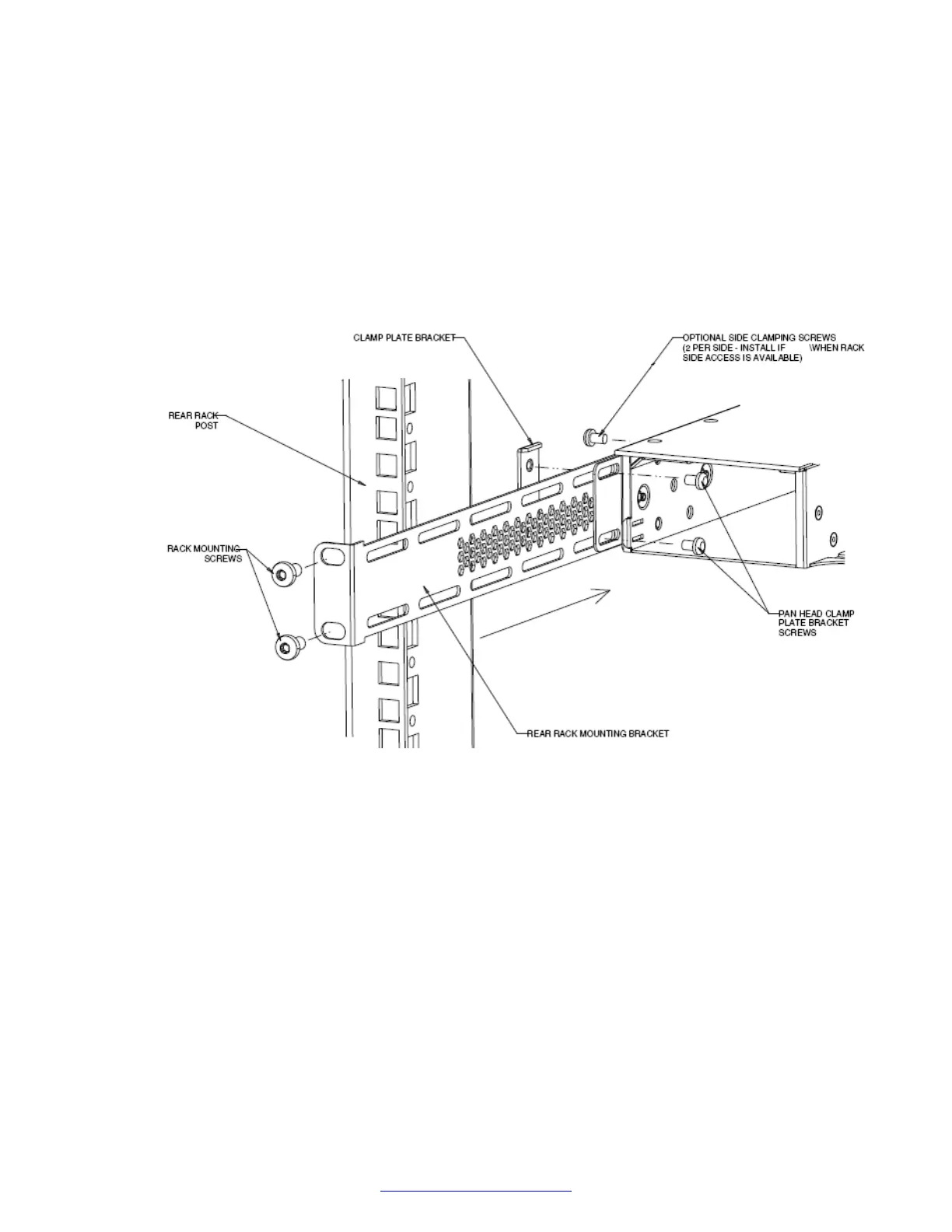

Figure 13: Attach rear mounting brackets
Installing optional four-post rack-mount brackets
August 2014 Installing Avaya VSP 7000 Series 33
