AVer CAM520 Pro3 - Page 26

18

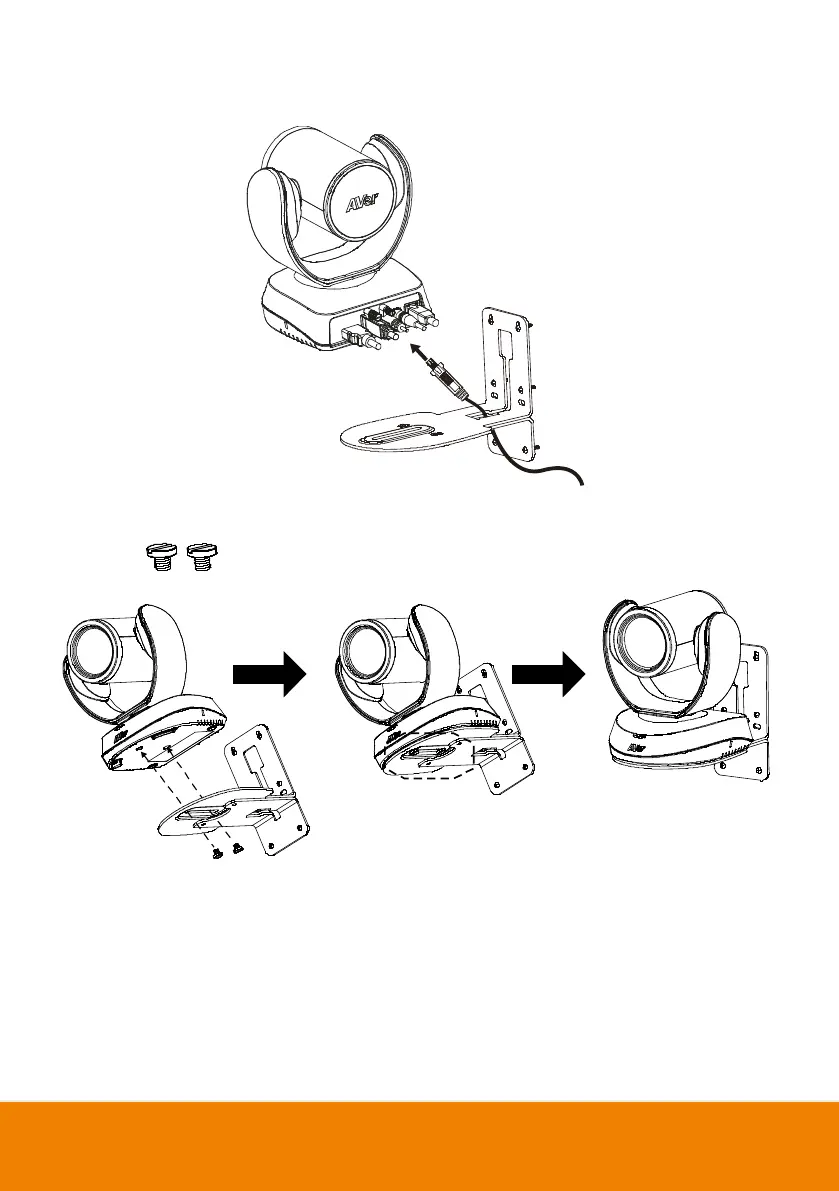

5. Pass the cables through the hole on the L-mount bracket and connect the cables to corresponding
connection ports.
6. Use the remaining screws (included in package) to secure the camera on the L-mount bracket.
Screw: 1/4”-20 L=7.5mm (x2)
