14
Web Setup
Connect the camera from a remote site through the internet.

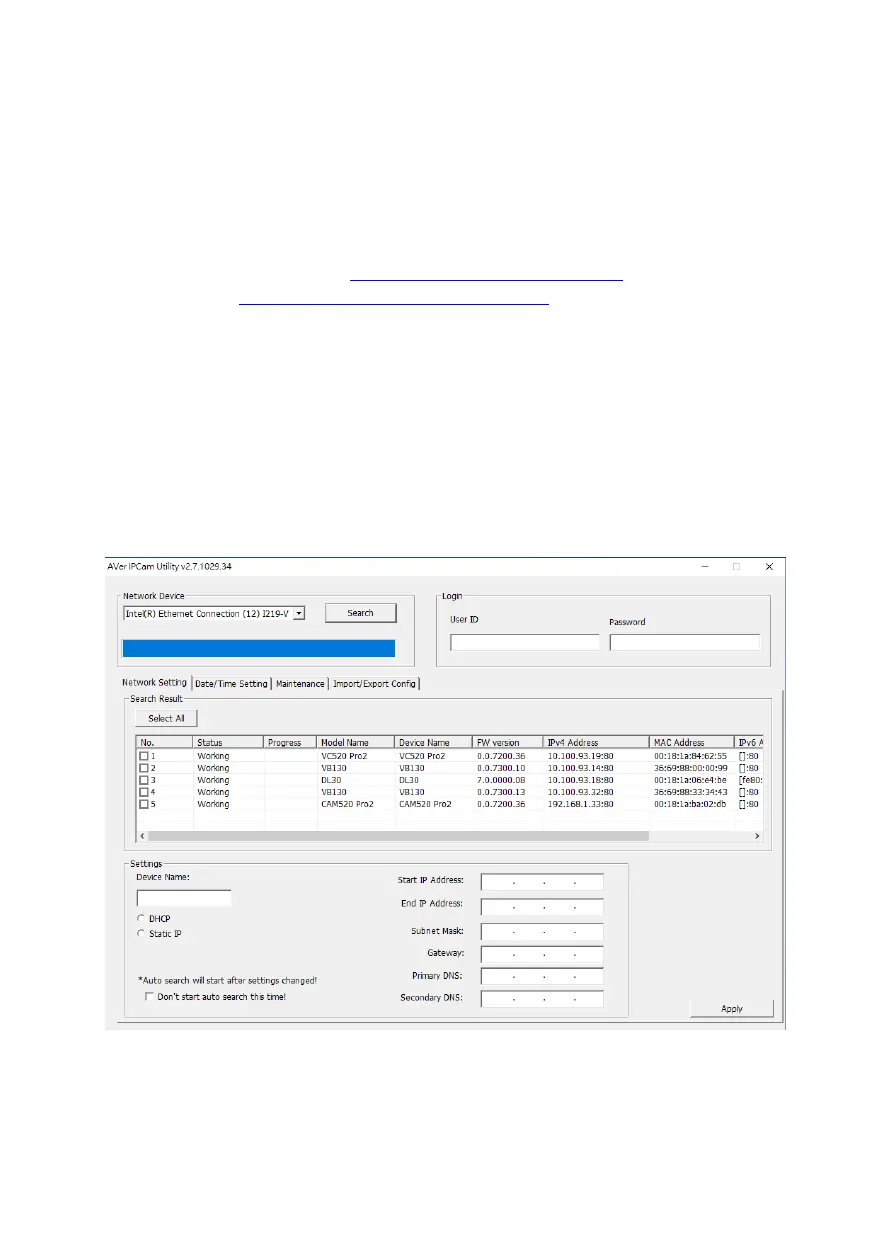

Use the AVer IPCam Utility to Find the Camera
To find the IP address of your cameras, you can execute the IPCam Utility installer. Follow the below
steps to find the IP address of the camera.
1. Download the IPCam Utility from https://www.aver.com/download-center (Global & European
Headquarters) or https://www.averusa.com/education/support (USA).
2. Run the IPCam Utility.
3. Click Search, and all available devices will be listed on the screen.
4. Select a camera from the list.
5. The corresponding fields of IP address will display.
6. Double-click on the IP address of the camera from the list to connect to the camera through the
browser.
[Note] If IPCam utility cannot find the camera, please check following:
1. Please make sure the Ethernet connection of camera is well connected.
2. The camera and PC (IPCam utility) are in the same LAN segment.

Other manuals for AVer DL30

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the AVer DL30 and is the answer not in the manual?

AVer DL30 Specifications

General IconGeneral
TypeIP security camera
Megapixel2 MP
Digital zoom2 x
Optical zoom12 x
Face tracking-
White balanceAuto, Manual
Camera HD typeFull HD
Zoom capabilityYes
Operating current2 A
Operating voltage12 V
Focal length range3.9-46.8 mm
Maximum frame rate60 fps
Placement supportedIndoor
Camera shutter speed1/4 - 1/10000; 1/3 - 1/10000 s
Minimum illumination0.5 lx
Supported video modes1080p
Diagonal field of view84.1 °
Connectivity technologyWired
Video formats supportedH.264, M-JPEG, YUY2
Viewing angle, vertical47.3 °
Maximum video resolution1920 x 1080 pixels
Viewing angle, horizontal76.5 °
Power consumption (typical)12 W
Signal-to-Noise Ratio (SNR)50 dB
Sensor typeCMOS
Number of sensors1
Optical sensor size1/2.8 \
InterfaceUSB
Pan range-170 - 170 °
Pan speed90 °/sec
Product colorBlack
Built-in flashNo
Tilt angle range-90 - 90 °
Package depth486 mm
Package width260 mm
Package height387 mm
Package weight7120 g
Storage temperature (T-T)-20 - 60 °C
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)20 - 95 %
Operating relative humidity (H-H)20 - 80 %
Mac operating systems supportedMac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur
Windows operating systems supportedWindows 10, Windows 7, Windows 8, Windows 8.1
Country of originTaiwan
Harmonized System (HS) code85258900
Supported network protocolsIPv6, IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP
Weight and Dimensions IconWeight and Dimensions
Depth228 mm
Width232 mm
Height346 mm
Weight1620 g
