S6L-24C and S6L-16C 26

S6L-24C/16C Only

4. Install the New SBC

You are now ready to begin installing the new SBC, which involves the following procedures:

• Installing the new SBC onto the Tray

• Reconnecting all cables

• Installing the Tray in the chassis

Installing the New SBC Onto the Tray

To install the new SBC onto the Tray:

1 Remove the new SBC from its packaging.

2 Place new SBC in position on the Tray:

• Be sure to orient the new SBC correctly and align it with the threaded receivers on the Tray.

• Be sure to guide the ports on the left side of the new SBC through their openings in the faceplate and below the tabs.

3 Reinstall the 4 screws around the perimeter of the new SBC to secure it to the Tray.

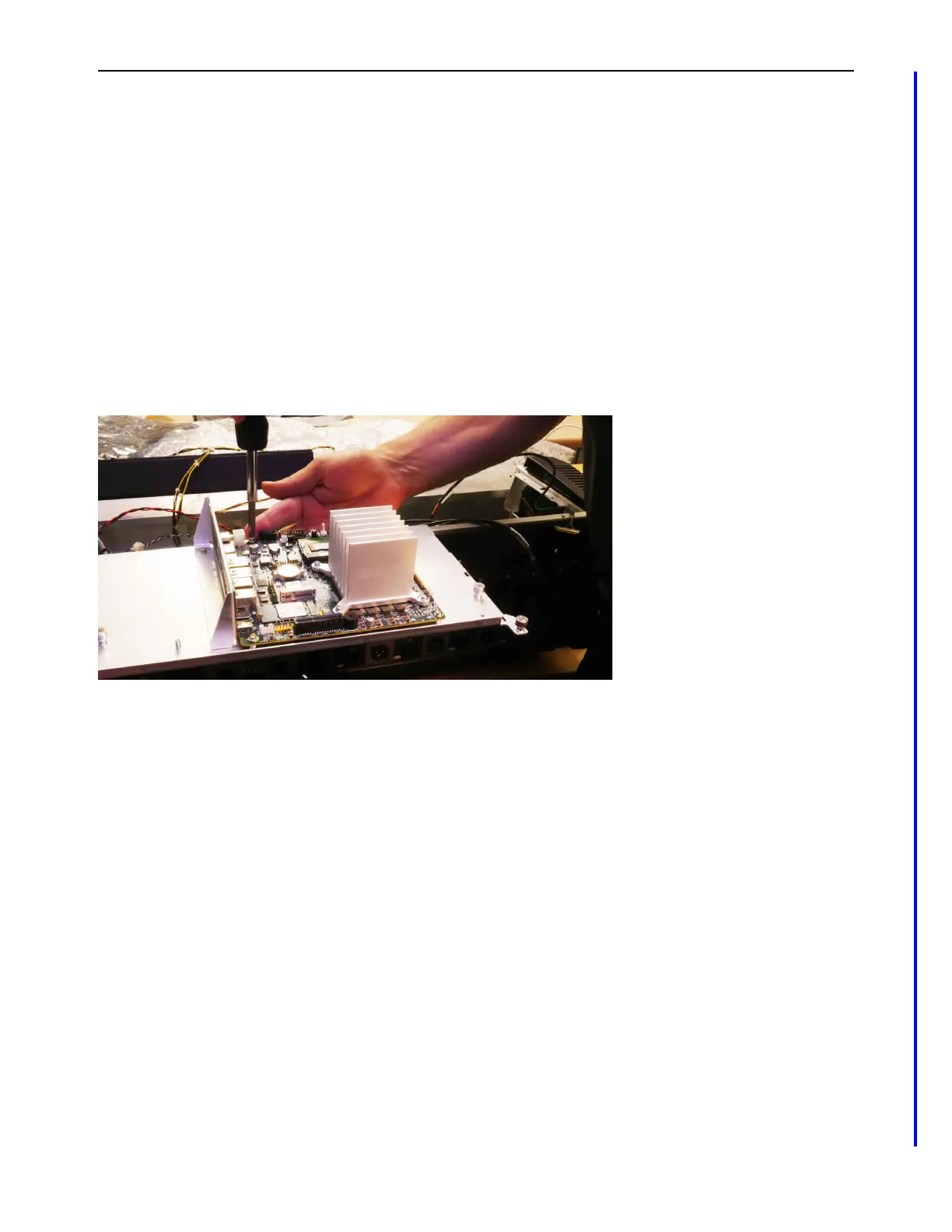

Figure 40. Securing the new SBC to the Tray

S6L-16C Only
