S6L-24C and S6L-16C 24
S6L-24C/16C Only
3. Remove the SBC
After hanging the SBC Tray on the chassis you are ready to remove the shroud, disconnect and replace cables, then remove the old
SBC.
Removing the Shroud
Original S6L SBC assemblies included a purple plastic shroud, but current assemblies do not. If your system has a shroud, do the
following to remove it from the SBC tray and then recycle the shroud (you do not need to re-install it).
To remove the old shroud:
1 Using a #2 Phillips screwdriver, remove the purple shroud by doing the following (keep all fasteners organized to reuse later):
• Remove the screw that secures the front edge of the shroud to the Tray.
• Remove the two screws that secure the back edge of the shroud to the Tray.
• Remove and recycle the shroud and its fasteners.
Disconnecting and Replacing Cables
All cables must be disconnected from the SBC.
To disconnect and replace cables:
1 Before disconnecting cables from the old SBC, take a photograph and/or label each cable (label cables by SBC port).
After the new SBC is installed it is crucial to reconnect cables correctly. For a diagram that identifies ports, see
S6L SBC Ports.
2 After photographing and/or labeling all cables and connectors, disconnect all cables from the old SBC.
3 Proceed to Removing the SBC.
Do not attempt to transfer the SSD from the old SBC onto the new SBC.

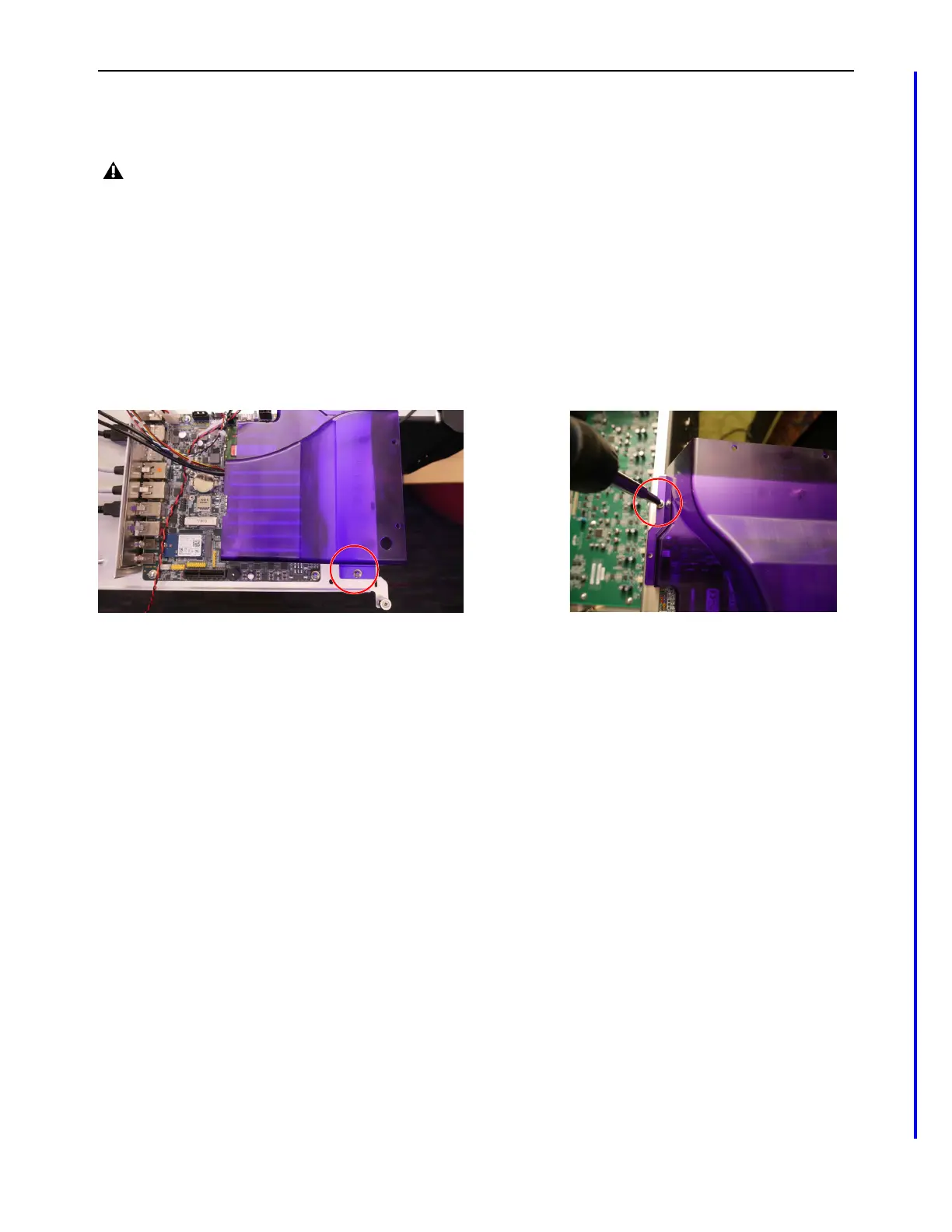

Figure 37. Removing screws that secure the front of the shroud (shown at left) and back of the shroud (one shown, at right)
