S6L-24C and S6L-16C 19

S6L-24C/16C Only

Disconnect Light Cables

(S6L-24C and 16C Only)

Before removing the SBC tray you must label and disconnect the two Light cables connected to the Top Panel.

To disconnect the Light cables:

1 Do the following:

• On S6L-24C disconnect the cables at the connectors shown below, then set the front panel aside.

• On S6L-16C, disconnect the cables at the connectors shown below.

2 Proceed to 2. Remove the SBC Tray.

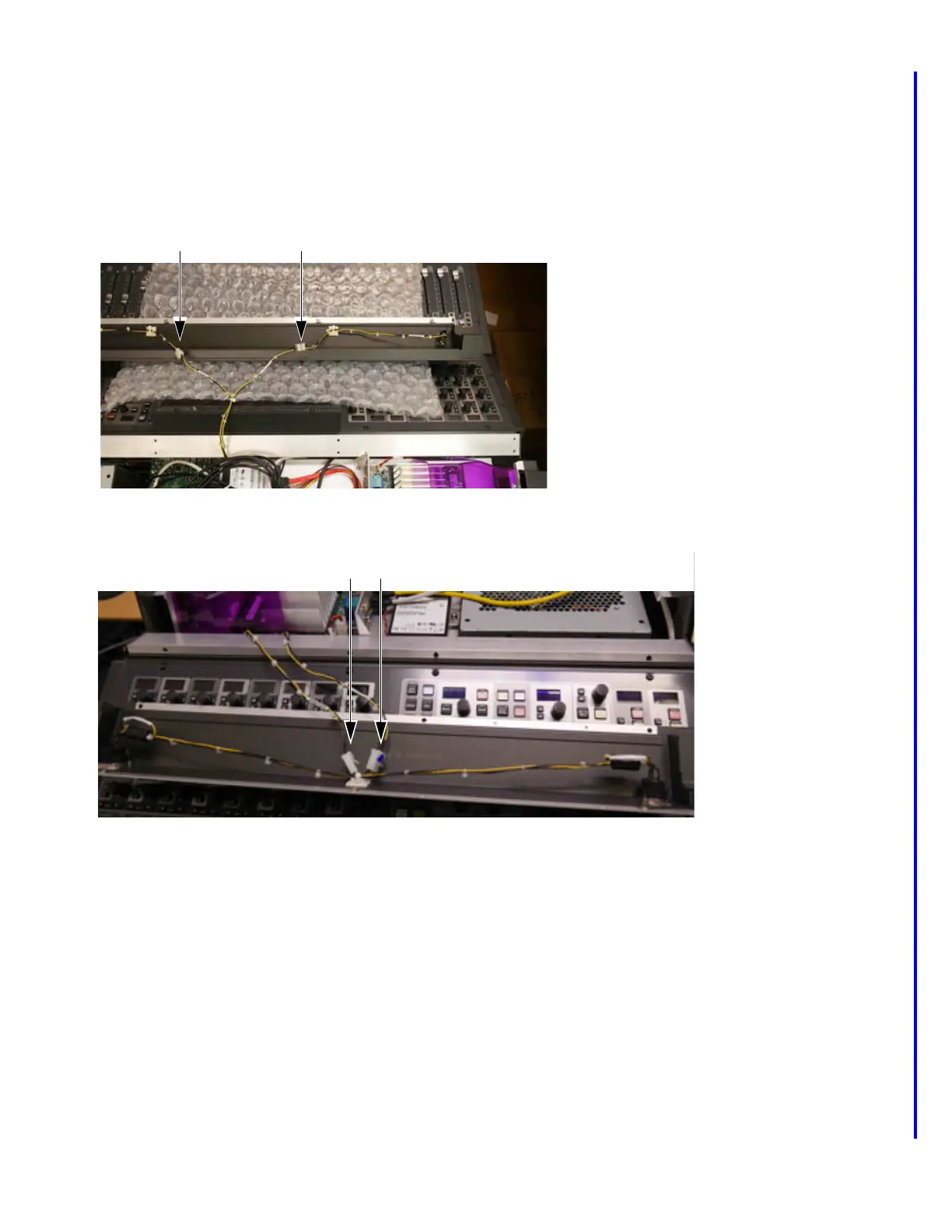

Figure 25. Light cables (rear view of S6L-16C shown)

Figure 26. Light cables (front view of S6L-16C shown)
