Avid Technology S6L Control Surface User Manual

S6L-24C and S6L-16C 20
S6L-24C/16C Only
2. Remove the SBC Tray
(All Systems)
The SBC Tray must be removed from the chassis before replacing the SBC or any of the I/O boards.
To remove the SBC Tray:
1 Use a #2 Phillips screwdriver to loosen the captive screw below the hole along the right edge of the shroud.
2 Using a #2 Phillips screwdriver, remove the two fasteners securing the top edge of the purple shroud to the top of the chassis.

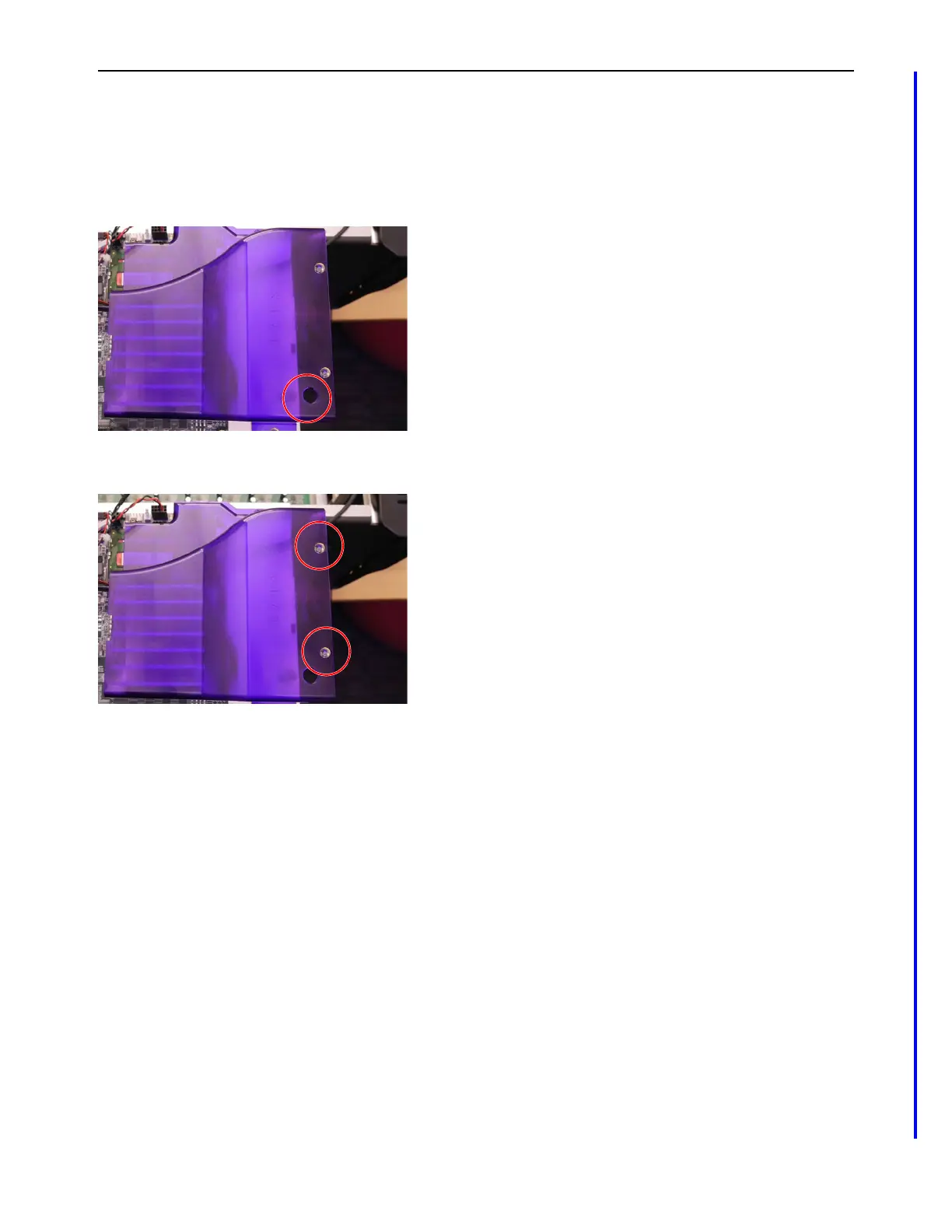

Figure 27. Shroud access hole for captive screw below
Figure 28. Fasteners to remove from the top of the shroud
