S6L-24D, S6L-32D, and S6L-48D 3
S6L-24D, S6L-32D, and S6L-48D
This section provides instructions for replacing the SBC Motherboard in S6L-24D, 32D, and 48D control surfaces.
Make sure to do all the following items before beginning the procedure.
1 Make sure you have assembled all Required Tools and Items.
2 Put on your anti-static wrist band and configure according to its instructions.
3 Shut down your system, and disconnect any cables connected to your S6L control surface.
4 Make sure your work area is clear of any debris.
1. Prepare the S6L Control Surface
Prepare the S6L control surface by removing the lower and upper back covers.
The steps required to remove the back cover vary depending on the model of S6L control surface.
To remove the lower back cover from S6L-24D, 32D, or 48D:
1 Using a 2.5mm Hex driver, remove the fasteners that secure the back cover to the S6L chassis and set the screws aside.
• S6L-24D uses 8 fasteners
• S6L-32D uses 10 fasteners
• S6L-48D uses 12 fasteners
Throughout this procedure, keep the removed screws organized to simplify re-assembly.

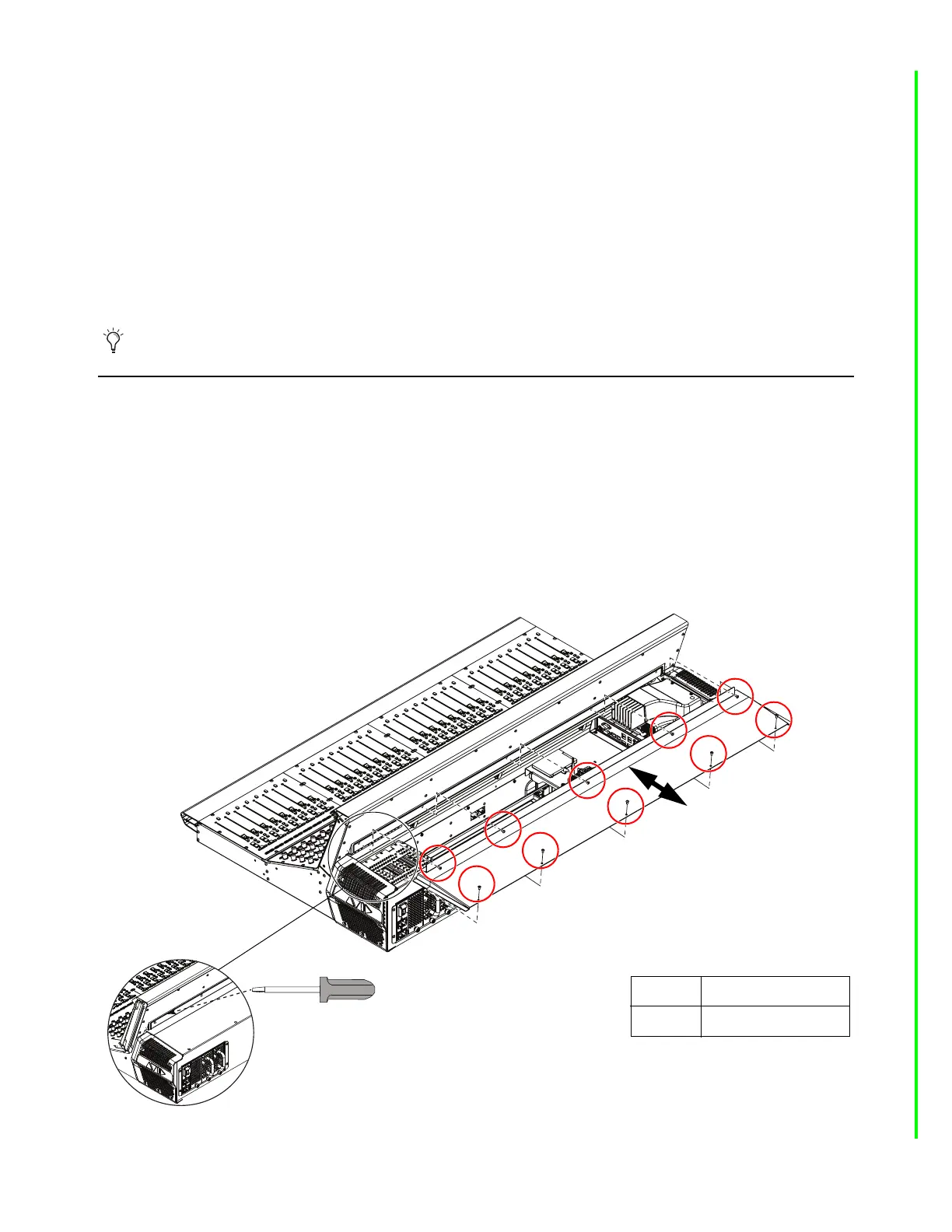

Figure 1. Removing the S6L back cover (S6L-32D shown)
Fasteners:
Tool:
M4x8mm BHCS
2.5mm Hex driver
S6L-24D/32D/48D
To Next Page
